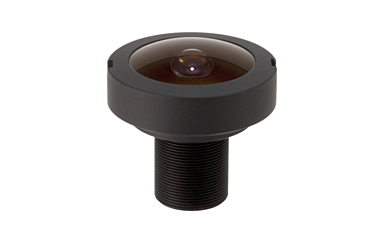

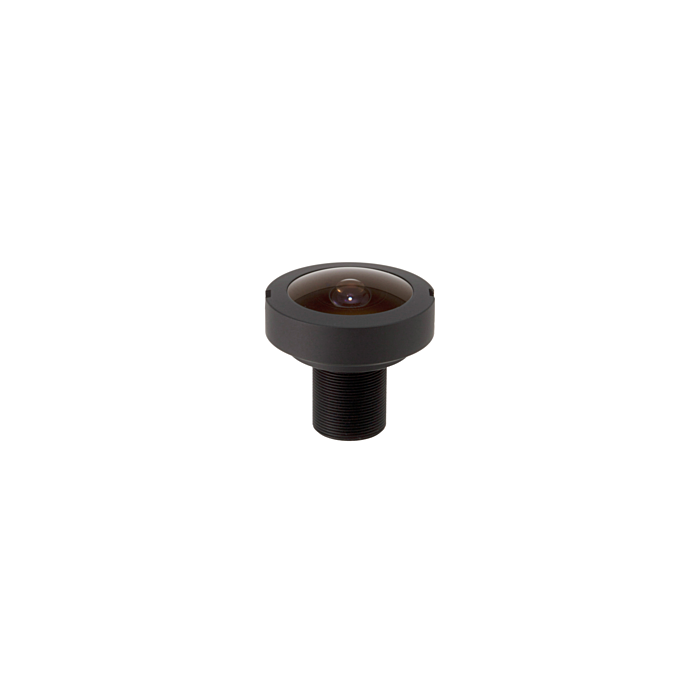

CBC-Computar T0928KRW 1/3" 0.95mm 3MP Fisheye IR Board Lens (S-Mount)

T0928KRW computar megapixel fisheye lenses, IR corrected, S mount, .95mm, 1.05mm, and 1.3mm lenses 5mp resolution. optional IP66 rating.
SKU
T0928KRW

The T0928KRW is a powerful yet compact fisheye lens.



Features:



  • 1/3" Format
  • 0.95mm Fixed Lens
  • 3MP Fisheye
  • Stereo Graphic Projection
  • IR Corrected
  • M12 (S Mount)
  • F2.8
  •


    Applications:



  • Machine Vision
  • Industrial Imaging Applications
  •

    Model T0928KRW
    Focal Length 0.95mm
    Max. Aperture Ratio 1:2.8
    Image Size at 185° φ5.38mm
    Mount M12 P=0.5mmf.
    Effective Lens Aperture Front φ19mm   Rear φ 5.4mm
    Distortion -96.82%
    Back Focal Length 3.38mm
    Dimensions φ27mm x 27.52mm
    Weight 19g
