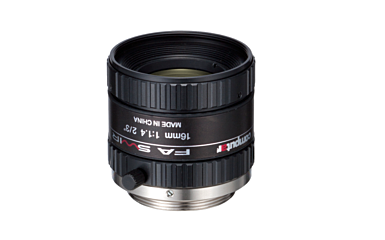

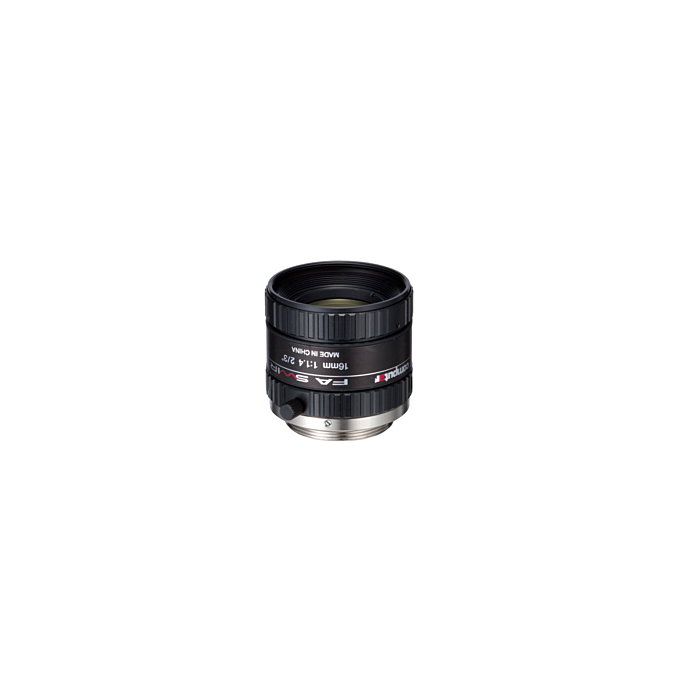

CBC-Computar SWIR M1614-SW (M1614SW) 2/3" 16mm, F1.4, C- Mount, Manual Iris (C-Mount)

The M1614-SW is a High-resolution, low-distortion lens that offers Megapixel clarity in hyperspectral applications.
SKU
M1614-SW

The lens features a manual iris range of f/1.4 to 16, and is a manual focus lens with a range from 1' to infinity. Both the iris and focus rings incorporate independent locking knobs.


Features:

  • Unique coating technology delivers high transmission from 800nm-1,700nm
  • High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
  • Also available in 25mm, 35mm and 50mm
  • Designed around the popular φ12.3mm image circle format
  • The industry’s most compact form factor.  Fits in most applications



Applications:

  • Machine Vision
  • Industrial Inspection
Model SWIR M1614-SW
Focal Length 16mm
Max. Aperture Ratio 1:1.4
Max. Image Circle φ12.3mm
Operation Range Iris F1.4‐ F16C    Focus 0.3m ‐ Inf.
Control Iris Manual Focus Manual
Object Dimension at M.O.D 2/3type 17.0cm x 12.7cm  1/2type 12.3cm x 9.2cm
Operating Temperature -10℃ ‐ +50℃
