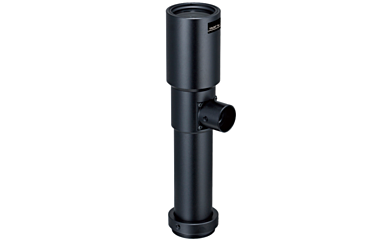

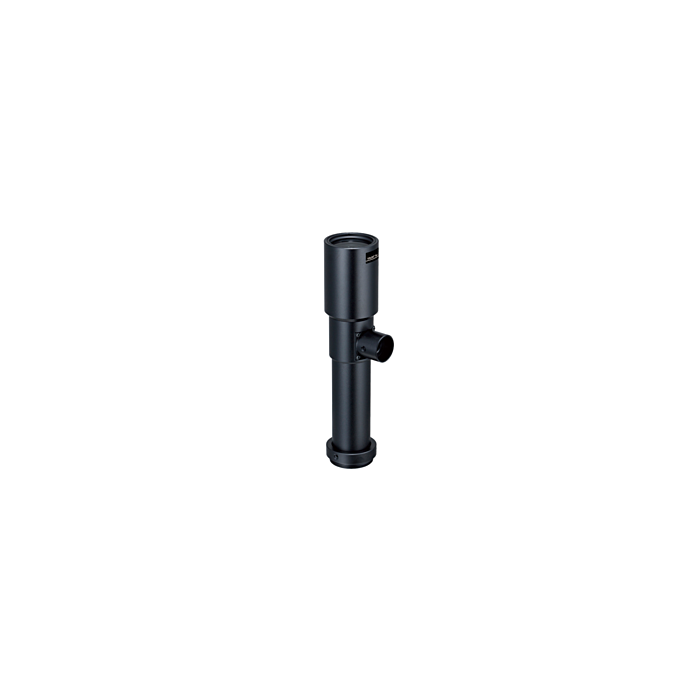

CBC-Computar M-Series TEC-M15110MPC (TECM15110MPC) 2MP, 2/3" 110.7mm, Telecentric Lens, 1.5x magnification (C Mount)
The TEC-M15110MPC is compatible with 2MP sensors on 2/3 " cameras and designed for 110.7mm working distance; 1.5x magnification; Low TV distortion
SKU
TEC-M15110MPC
The TEC-M15110MPC from Computar is a 2/3" 110mm fixed fens, C-mount. Features. Compatible with 2MP sensors on 2/3 " cameras.
Features:
Applications:
| Model | TEC-M15110MPC |
| Magnification | 1.5x |
| Working Distance | 110.7mm |
| Effective F Number | 11.5 |
| Max. Image Format | φ11mm |
| Field of View | 5.87mm(H) x 4.4mm(V) 2/3" |
| Resolving Power *1 | 5.2µm |
| Depth of Field *2 | 0.42mm |
| TV Distortion 2/3' Type | 0.031% |
| Back Focal Length | 17.0mm |
| Flange Back Length | 17.526mm |
| Mount | C |
| Dimensions | φ30mm x 128mm |
| Weight | 110g |
| Operating Temp. | -10℃ - +50℃ |
