TEC-M10110MPC (TECM10110MPC): CBC-Computar M-Series 2MP, 2/3" 111.5mm, Telecentric Lens, 1x magnification (C Mount)

TEC-M1065MPC Image #1

TEC-M1065MPC (TECM1065MPC): CBC-Computar M-Series 2MP, 2/3" 65.5mm, Telecentric Lens, 1x magnification (C Mount)

TEC-M1065MP (TECM1065MP): CBC-Computar M-Series 2MP, 2/3" 65.5mm, Telecentric Lens, 1x magnification (C Mount)

M-Series TEC-M1065MP 2MP, 2/3 65.5mm, Telecentric Lens, 1x magnification (C Mount) - Compatible with 2MP sensors on 2/3 cameras

$0.00 Please call for pricing

SKU

EC-M1065MP

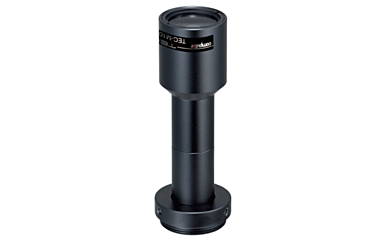

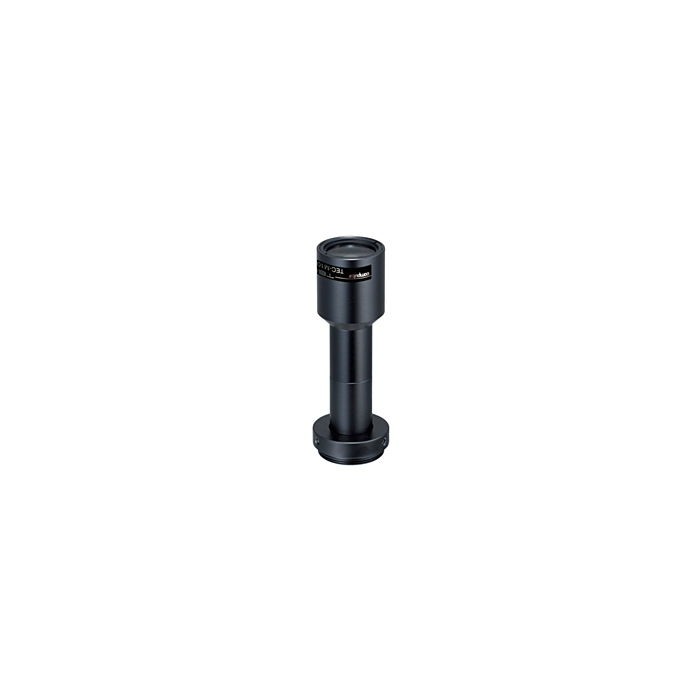

The TEC-M1065MP from Computar is a 2/3" 65mm fixed fens, C-mount.

Features:

Compatible with 2MP sensors on 2/3 " cameras

Designed for 65.5mm working distance

1x magnification

Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)

Applications:

Industrial Imaging

Industrial Inspection

Machine Vision

Model	TEC-M1065MP
Magnification	1.0x
Working Distance	65.5mm
Effective F Number	9.8
Max. Image Format	φ11mm
Field of View	8.8mm(H) x 6.6mm(V) 2/3"
*Resolving Power 1**	6.7µm
*Depth of Field 2**	0.79mm
TV Distortion 2/3" Type	-0.022%
Back Focal Length	17.0mm
Mount	C
Dimensions	φ25mm x 78mm
Weight	49g
Operating Temperature	-10℃ - +50℃

TEC-M1065MP_09-15
