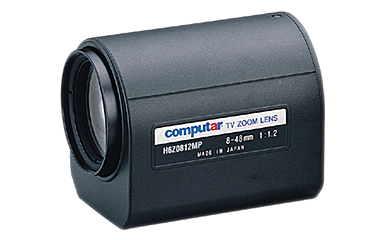

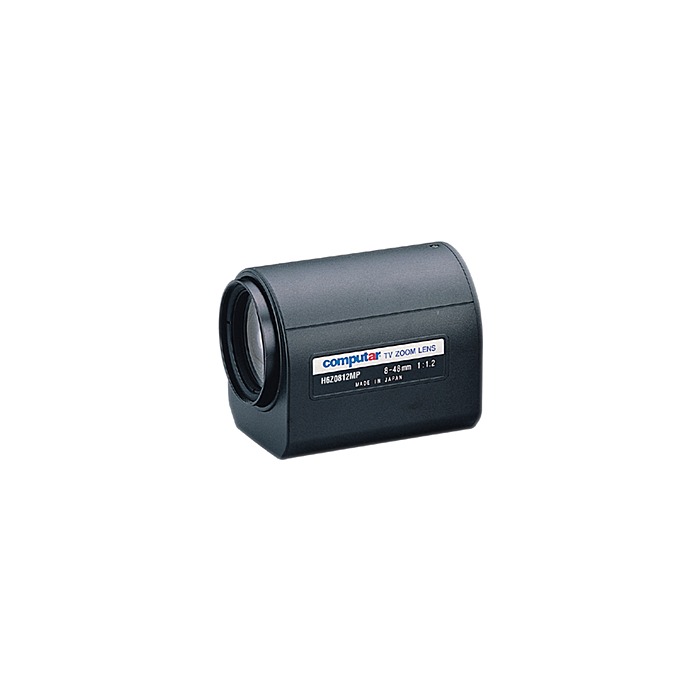

H6Z0812MP: CBC Computar 1/2" 8-48mm f1.2 6X Motorized Zoom, 3 motors w/preset (C Mount)
Computar's H6Z0812MP is a 1/2-in 6X motorized zoom lens featuring a 8-48mm (6X optical) variable focal length, fast f/1.2 aperture, 3-motors design, C-Mount
SKU
H6Z0812MP
Computar's 1/2-inch 8-48mm C-Mount 6X motorized zoom series provide a 44.6-8.0 degree horizontal angle of view on a 1/2-inch format camera.
Features:
Applications:
| Model |
H6Z0812MP |
| Focal Length | 8mm - 48mm |
| Max. Aperature | 1:1.2 |
| Max Image Format | 6.4mm x 4.8mm(8mm) |
| Operation Range | Iris=F1.2 - F16C Focus=1.2m - Inf. Zoom=8mm - 48mm |
| Control | Motorized Focus, Zoom, Iris |
| Supply Voltage | DC8V |
| Effective Lens Aperature | Front 39.2mm Rear 16.6mm |
| Back Focal Length | 11.4mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M49 P0.75mm |
| Dimensions | W66mm x H73.5mm x D97mm |
| Weight | 440g |
