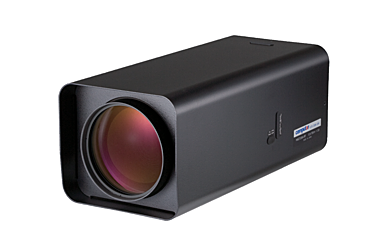

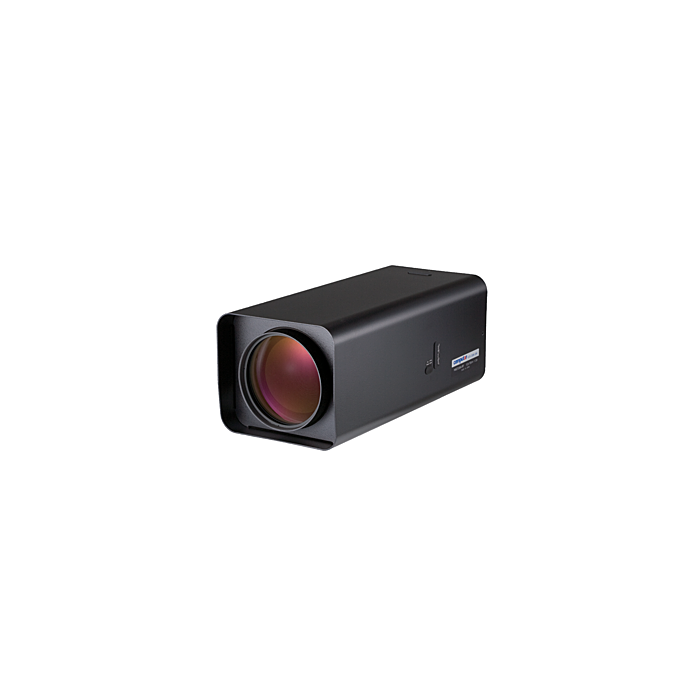

H60Z1238A-IRF (H60Z1238AIRF): CBC-Computar 1/2" C Mount 25-1500mm 60X THRU Vision IR Zoom Lens w/ Fog Through Filter

Shoot extreme long distance surveillance with the THRU Vision Camera. Clear obstacles and provide images clearer than the human eye. Lens technologies previously available were not able to reproduce color images, or focus through solid particles like smoke, sand or snow.
SKU
H60Z1238A-IRF

Computar's H60Z1238A-IRF offers a superior high zoom ratio of 60x, along with a built-in 2x extender to provide a maximum focal length of 1500mm.



Features:



  • 25-1500mm (with 2X extender)
  • F3.8 - F3000
  • Video Auto Iris
  • Motorized Focus and Zoom
  • 1/2" Format, C-Mount
  • IR Corrected for True Day/Night
  • On/Off Fog Through Filter Function
  •


    Applications:



  • Security
  • Long Distance Surveillance
  • Observation
  • Model H60Z1238A-IRF
    Focal Length 12.5mm-750mm   25mm-15000mm (2x extender)
    Max. Aperature 1:3.8
    Max Image Format 6.4mm x 4.8mm
    Supply Voltage DC12V (9-15)V
    Effective Lens Aperature Front 98.8mm Rear 13.6mm
    Back Focal Length 53.23mm
    Flange Back Length 17.526mm
    Mount C-Mount
    Filter Size M107 P=1mm
    Dimensions W154mm x H137mm x D354mm
    Weight 5200g
