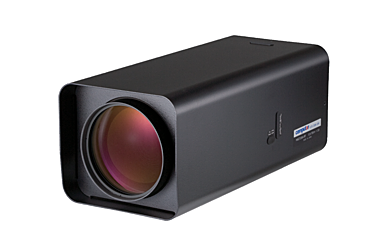

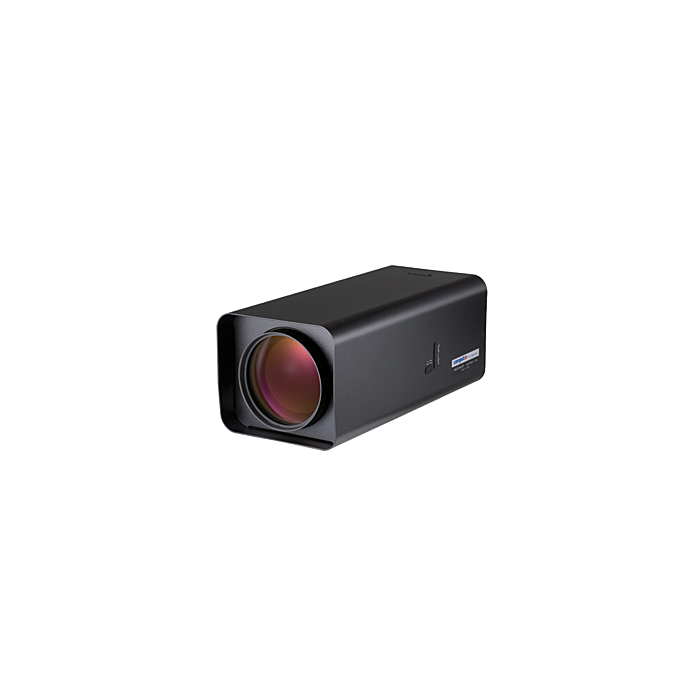

H60Z1238A: CBC Computar 1/2" 25-1500mm 60X THRU Vision Zoom Lens (C-Mount)
Designed for extreme long distance surveillance, the THRU Vision Camera can be paired with the Computar® Thru Vision 60X Zoom Lens (25-1500mm w/extender) to clear obstacles and provide images clearer than the human eye
SKU
H60Z1238A
Computar's High Quality CCTV Camera Lens, H60Z1238A-IRF 1/2 C Mount 25-1500mm.
Features:
Applictaions:
| Model |
H60Z1238A |
| Focal Length | 12.5mm - 750mm |
| Max. Aperature | 1:3.8 |
| Max Image Format | 6.4mm x 4.8mm(8mm) |
| Operation Range | Iris=F3.8 - F3000 Focus=2m - Inf. Zoom=12.5mm - 750mm |
| Control | Motorized Focus, Zoom Video Iris |
| Supply Voltage | DC6V - DC12V |
| Effective Lens Aperature | Front 98.8mm Rear φ13.6mm |
| Back Focal Length | 13.91mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M107 P=1mm |
| Dimensions | W154mm x H137mm x D 354mm |
| Weight | 5200g |
