CBC-Computar E1628KRY 1/1.7" 1.65mm 4K Fisheye IR Board Lens (S Mount)

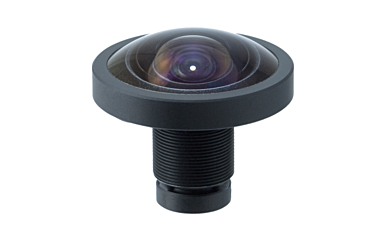

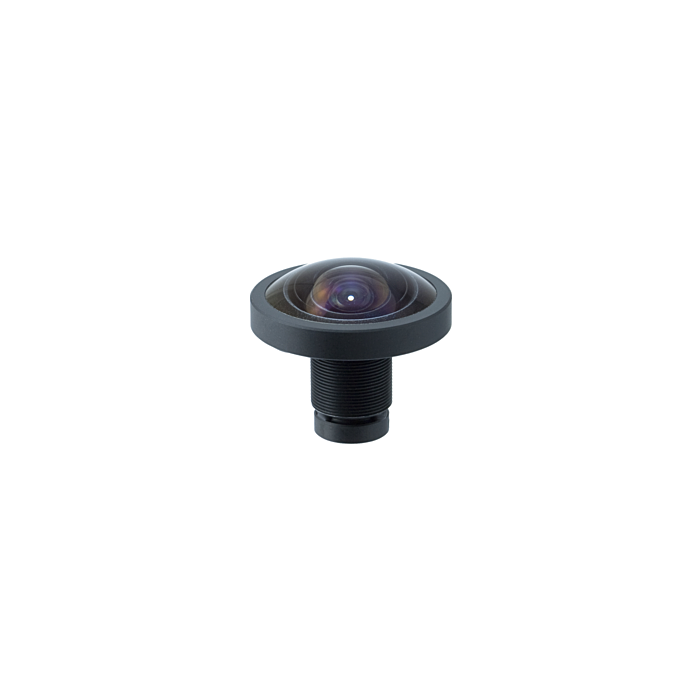

CBC-Computar E1222KRY 1/1.7" 1.2mm 4K Fisheye IR Board Lens (S Mount)

The Computar E1222KRY is an S mount IR fisheye board lens featuring 4K resolution.
SKU
E1222KRY

The M12 Mount 1.2mm 4K Fisheye IR Lens from computar is designed for cameras over 8MP with 1/1.7" format sensors.



Features:

  • 1/1.7" Format
  • 1.2mm Fixed Lens
  • 4K Fisheye (over 8 MP)
  • True Day/Night
  • Stereo Graphic Projection (Panomorph Optics)
  • ImmerVison Enables compatible
  • IR Corrected
  • M12 (S Mount)
  • F2.2
  •


    Applications:



  • Machine Vision
  • Industrial Inspection
  • </table

    Model E1222KRY
    Focal Length 1.2mm
    Max. Aperture Ratio 1:2.2
    Image Size at 185° φ5.38mm
    Mount M12 P=0.5mmf.
    Control Iris Manual Focus Manual
    Effective Lens Aperture Front φ 24.4mm   Rear φ 5.6mm
    Back Focal Length 4.2mm
    Dimensions φ29.2mm x 25.7mm
    Weight TBD
    Operating Temperature -10℃ ‐ +50℃
