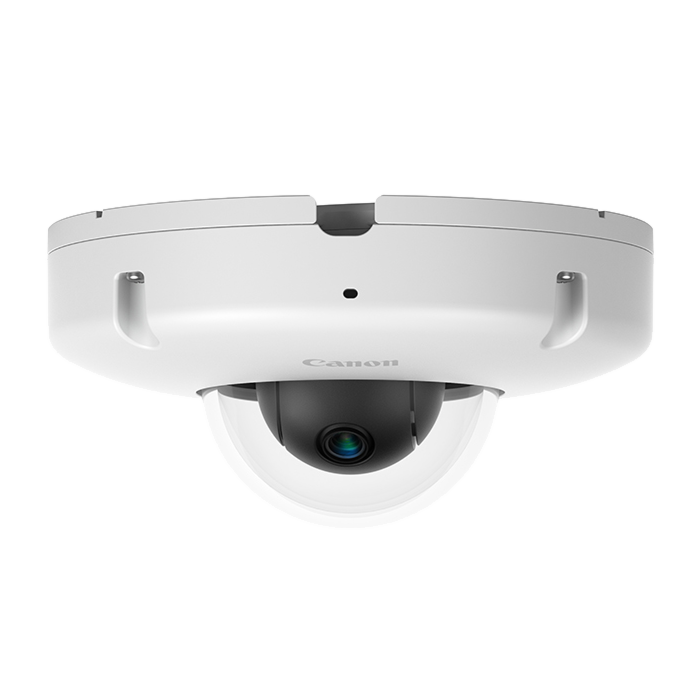

  • Canon VB-S30VE | PTZ Micro Dome Camera Image #1

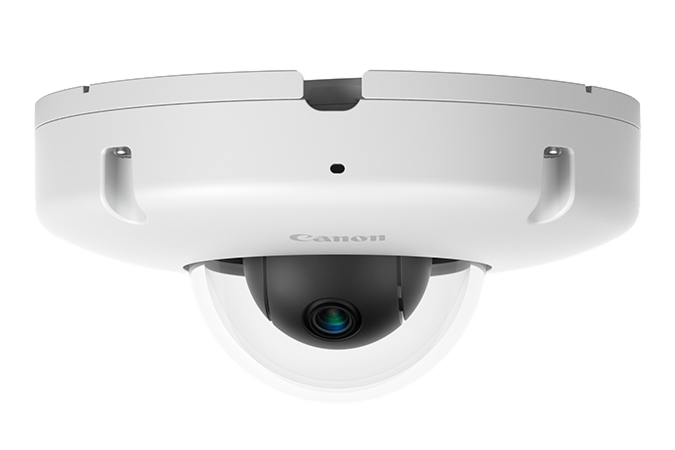

Canon VB-S30VE (VBS30VE) 3.5x Zoom (1920x1080) Vandal Resistant Outdoor PTZ Micro Dome Network Camera

Quick Overview

1/4.85" CMOS (RGB), 3.5x Optical Zoom Lens With Auto Focus, Progressive Scan.

Canon's compact and powerful VB-S30VE Vandal Resistant Outdoor PTZ Micro Dome Network Camera delivers Full HD (1920 x 1080) video with outstanding clarity and color accuracy in challenging outdoor environments. This 2.1 Megapixel resolution camera's Genuine Canon Lens is equipped with motorized Pan/Tilt mechanisms and, despite its small form factor, additionally boasts a 3.5x optical zoom. This models IP66 and IK10 ratings substantiate its ability to withstand harsh weather and vandalism. The lightweight and easy-to-install VB-S30VE uses a minimal amount of power (max 8.1W over PoE) and helps reduce bandwidth and storage space usage due to its Motion Adaptive Noise Reduction and Area- Specific Data Size Reduction features. A built-in microphone also allows audio recording at the installation site.*


  • 2.1 Megapixel Resolution High-Sensitivity CMOS Sensor helps deliver video with Outstanding Detail
  • Genuine Canon Lens with 3.5x Optical Zoom helps provide Outstanding Image Clarity and Flexibility
  • Motorized Pan/Tilt/Zoom for Remote Camera Positioning
  • Compact Form Factor allows Camera to be Discreet and Aesthetically Pleasing
  • IP66 Rated for Water and Dust Resistance
  • IK10 Rated for Impact Resistance
  • Advanced DIGIC DV III Image Processor to help Maximize Image Quality and Color Accuracy
  • Built-in Microphone for Audio Recording at Installation Site*
  • 64 Preset Positions for One-Click Camera Positioning
  • Moisture Release System to help Prevent Video Distortion due to Excess Moisture
  • Motion Adaptive Noise Reduction to Increase Video Clarity in Low-Light Conditions and Reduce Bandwidth Consumption
  • Area-Specific Data Size Reduction (ADSR) to Maintain Video Quality in Important Areas while Reducing Bandwidth Usage
  • Privacy Mask for Placing a Digital Mask over Restricted Areas
  • ONVIF Profile S Conformant for VMS Connectivity
  • Web-Based Camera Viewer with Mobile Device Support
  • PoE Power Source Compatible

  • Applications:

  • Auditoriums
  • Plazas and Lobbies
  • Financial Institutions
  • Security
  • Surveillance
  • Specifications
    Image Sensor 1/4.85 type CMOS (RGB)
    Number Of Effective Pixels Approx. 2.1 million pixels
    Scanning Method Progressive Scan
    Lens 3.5x optical zoom lens with auto focus
    Focal Length 2.25 (W) - 7.88mm (T)
    F-Number F1.4 (W) - F2.6 (T)
    Digital Zoom  4x
    Horizontal Viewing Angle 77.1° (W) - 20.6° (T)
    Vertical Viewing Angle 40.2° (W) - 11.5° (T)
    Day/Night Switch Yes
    I/R Cut Filter Digital Night Mode
    Min. Subject Illumination - Day (Color) 1.0 lux (F1.4, shutter speed 1/30 sec.)
    Min. Subject Illumination - Night (Monochrome) 0.55 lux (F1.4, shutter speed 1/30 sec.)
    Focus Auto/One-shot AF/Manual/Fixed at infinity
    Shooting Distance 0.3m (12 in.) - infinity (W)
    Shutter Speed 1 - 1/16000 sec.
    Exposure Auto/ Auto (Flickerless)/ Auto (shutter-priority AE)/ Manual (Shutter Speed, Gain)
    White Balance Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/ Manual
    (One-shot WB / R Gain/ B Gain)
    Metering Mode Center-Weighted/Average/Spot
    Exposure Compensation 9 levels
    Smart Shade Control Auto / Manual / Disable
    Auto: 3 Levels
    Manual: 7 Levels
    Haze Compensation 9 levels
    AGC Limit 6 levels
    Image Stabilizer N/A
    Pan Angle Range 350° (±175°)
    Tilt Angle Range 90° (ceiling-mounted position: -90° - 0°)
    Rotation Angle Range N/A
    IR Illumination Range N/A
    Moving Speed Pan: Max. 120°/sec., Tilt: Max. 120°/sec.
    Video Compression Method JPEG, H.264
    Video Size JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270,1280 x 720, 640 x 360, 320 x 180, 1280 x 960, 640 x 480, 320 x 240
    Video Quality JPEG, H.264: 5 levels
    Frame Rate JPEG: 0.1 - 30 fps
    H.264: 1/2/3/5/6/10/15/30 fps
    Maximum Frame Rate JPEG, H.264 (1920 x 1080): 30fps
    ASDR: Area-Specific Data Size Reduction Number of Specified Areas: Max. 8 windows
    I-Frame Interval 0.5/1/1.5/2/3/4/5 sec.
    Simultaneous Client Access Max. 30 Clients + 1 Admin Client - H.264: Max. 10 Clients
    Camera Control Administrator, Authorized user, Guest user
    Max. 50 user names and passwords registered for authorized users.
    Access Control User authority (user name and password), Host Access Restrictions (IPv4, IPv6)
    Encrypted Communications SSL/TLS, IPsec (Auto Key Exchange/Manual)
    ONVIF Version ONVIF Profile S
    IPv4 Protocol TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
    IPv6 Protocol TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP (Canon proprietary)
    Auto IP Yes
    Audio Compression Method G.711 μ-law (64 kbps)
    Audio Communication Method Full-duplex (two-way)/half-duplex (One-way communication)
    RTP, Sound Transfer Protocol by Canon
    Audio File Playback Available
    Privacy Mask Number of registration: Max. 8 places,
    Number of mask colors: 1 (select from 9 colors)
    View Restrictions Available
    Presets Max. 64 positions
    Intelligent Function - Video Moving object detection, abandoned object detection, removed object detection, camera tampering detection, passing detection and intrusion detection
    Intelligent Function - Detection Settings Max. 15
    Intelligent Function - Volume Volume Detection
    Event Trigger Type External Device Input, Timer, Intelligent Function (Video), Intelligent Function (Audio), Day/Night Switch
    Image Upload FTP/HTTP
    Event Notification HTTP/SMTP (e-mail)
    On-Screen Display Available
    Image Cropping Function Digital PTZ
    Cropping sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72
    640 x 480/512 x 384/384 x 288/256 x 192/128 x 96
    Enhanced Digital Zoom N/A
    Daylight Saving Time Available
    Custom Settings TBD
    Network Terminal LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
    Audio Input Terminal Built-in Microphone
    Sensitivity: -40 dB (0 dB=1 V/Pa)
    S/N Ratio: 62 dB or greater
    Frequency Response: 50 Hz - 16 kHz
    Audio Output Terminal Φ3.5 mm (Φ0.14 in.) mini-jack connector (monaural)
    LINE OUT (connect to an amplifier speaker)
    External Device I/O Terminal Input x 1, Output x 1
    Analog Video Out N/A
    Memory Card MicroSD Memory Card, MicroSDHC Memory Card, MicroSDXC Memory Card Compatible
    Memory Card Recorded Content Log, Video (Event, Manual, ONVIF, Timer, Upload
    Memory Card Recorded Frame Rate Frame Rate: Max. 1 fps (JPEG)
    Max. 30 fps (H.264)
    Temperature Operating Temperature Range
    -25°C - +50°C (-13°F - +122°F)
    Humidity Humidity: 5% - 85% (without condensation)
    Temperature -30°C - +60°C (-22°F - +140°F)
    Humidity 5% - 90% RH (without condensation)
    PoE PoE: PoE power supply via LAN connector (IEEE802.3af compliant)
    AC Adapter N/A
    External Power Source N/A
    Power Consumption
    With PoE Max. approx. 8.1 W
    With AC Adapter N/A
    With 12VDC N/A
    With PoE + N/A
    With 24VAC N/A
    Dimensions (Φ x H) Φ132 x 65 mm (Φ5.20 x 2.56 in.)
    - Camera only
    Mounting Position Ceiling Mount
    Heater TBD
    Weight Approx. 620 g (21.9 oz.) (T.B.D.)
    Outdoor Ready Yes
    * Dome may cloud when installed under direct sunlight
    IP Rating IP66
    Vandal Resistant Yes
    Impact Resistance IK10 (20J)

    Canon Network Cameras VB-S910F, VB-S800VE, VB-S30VE
