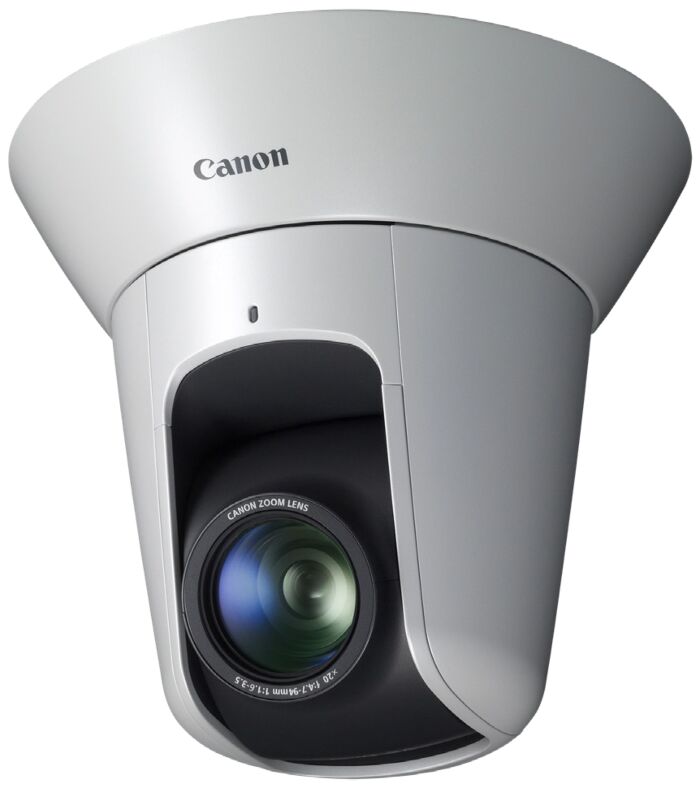

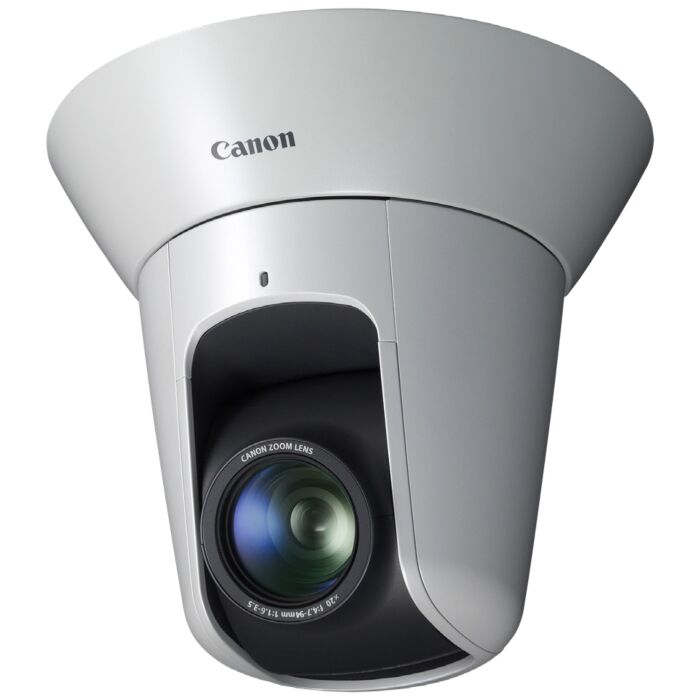

Canon VB-M44 (VBM44) 1.3 MP PTZ IP Security Camera

VB-M44 from Canon covers every angle and flexible installation options for indoor use. Available in Black or White Casing.

Coming soon in 2018

SKU
Canon VB-M44

The VB-M44 1.3 MP PTZ IP security camera combines a powerful 400x zoom, excellent low-light capability and fast auto-focus.

Features:

  • 1.3 MP PTZ IP security camera
  • Powerful 20x optical zoom lens with 20x digital zoom and fast autofocus
  • Superior image quality using Canon DIGIC DV III processor
  • Canon DIGIC NET II supports dual H.264 video streams (up to 30 fps)
  • Superior low-light performance: colour at 0.05 lux and mono at 0.003 lux
  • Auto Smart Shade Control (Auto-SSC) improves foreground objects in bright backlit scenes
  • Motion Adaptive Noise Reduction and Area-Specific Data Size Reduction (ADSR) help reduce data size while optimising image quality
  • Built-in analytics functions for intelligent and efficient alarm detection
  • Live monitoring and configuration on supported web browsers and mobile devices
  • ONVIF® Profile compliant

  • Applications:

  • Auditoriums
  • Plazas and Lobbies
  • Financial Institutions
  • Security
  • Surveillance
  • Image Sensor

    1/3 type CMOS (primary color filter)

    Number Of Effective Pixels

    Approx. 1.3 million pixels

    Scanning Method

    Progressive Scan

    Lens

    20x optical (20x digital zoom) zoom lens with auto focus

    Focal Length

    4.7 (W) - 94mm (T)

    F-Number

    F1.6 (W) - F3.5 (T)

    Horizontal Viewing Angle (16:9)

    60.4° (W) - 3.2° (T)

    Vertical Viewing Angle (16:9)

    35.1° (W) - 1.8° (T)

    Day/Night Switch

    Auto/ Day Mode / Night Mode

    Min. Subject Illumination

    Day Mode (Color):
    0.05 lux (F1.6 shutter speed 1/30 sec., smart shade control is off, 50IRE)

    Night Mode (monochrome):
    0.003 lux (F1.6, shutter speed 1/30 sec., smart shade control is on, 50IRE)

    Focus Modes

    Auto/One-shot AF/Manual/Fixed at infinity

    Shooting Distance

    Day Mode: 0.3m (12 in.) - infinity (W), 1.0m (3.3 ft.) - infinity (T)
    Night Mode: 1.0m (3.3 ft.) - infinity (W), 1.5m (4.9 ft.) - infinity (T)

    When [Enable] is selected for [Dome]:
    Day Mode: 2.0 m (6.6 ft.) - infinity (W,T)
    Night Mode: 1.0 m (3.3 ft.) - infinity (W), 2.2 m (7.2 ft.) - infinity (T)

    Shutter Speed

    1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 sec.

    Exposure Modes

    Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/Auto (Aperture-priority AE)/Manual (Shutter Speed, Aperture, Gain)

    White Balance

    Auto/Manual
    Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp
    Manual: One-shot WB/R Gain/B Gain

    Metering Mode

    Center-Weighted/Average/Spot

    Exposure Compensation

    9 levels

    Smart Shade Control

    Auto/Manual/Disable
    Auto: 3 levels
    Manual: 7 levels

    Haze Compensation

    Auto/Manual/Disable
    Auto: 3 levels
    Manual: 7 levels

    AGC Limit

    6 levels

    Image Stabilizer

    Digital (2 levels)

    Pan Angle Range

    340° (±170°)

    Tilt Angle Range

    100° (ceiling-mounted position: -90° – +10°)
    Moving Speed

    Pan: Max. 150°/sec., Tilt: Max. 150°/sec.

    Video Compression Method

    JPEG, H.264

    Video Size

    JPEG, H.264: 1280 x 720, 640 x 360, 320 x 180, 1280 x 960, 640 x 480, 320 x 240

    Video Quality

    JPEG, H.264: 10 levels

    Frame Rate

    JPEG: 0.1 – 30 fps
    H.264: 1/2/3/5/6/10/15/30 fps

    Maximum Frame Rate

    When streaming JPEG, H.264 (1280 x 960): 30 fps
    When used in the following combinations
    When streaming H.264(1)(1280 x 960) and H.264 (2) (1280 x 960) simultaneously: 15 fps
    When streaming H.264(1)(1280 x 720) and H.264 (2) (1280 x 720) simultaneously: 15 fps

    I-Frame Interval

    0.5/1/1.5/2/3/4/5 sec.
    Simultanious Client Access

    Max. 30 Clients + 1 Admin Client
    – H.264: Max. 10 Clients

    Camera Control

    Administrator, Authorized user, Guest user Max. 50 user names and passwords registered for authorized users

    Access Control

    User authority (user name and password), Host Access Restrictions (IPv4, IPv6)

    Encrypted Communications

    SSL/TLS, IPsec (Auto Key Exchange/Manual)

    IEEE 802.1X

    EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP

    Protocol

    IPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP (Canon proprietary)

    ONVIF Profile

    Profile-S

    Audio Compression Method

    G.711 μ-law (64 kbps)

    Audio Communication Method

    Full-duplex (two-way)/half duplex RTP, Sound Transfer Protocol by Canon

    Audio File Playback

    Available (audio files can be played back when an event is triggered by the intelligent function or external device input)
    - A third party amplifier speaker is necessary

    Privacy Mask

    Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colours)

    View Restrictions

    Available

    Presets

    Number of registers: Max. 64 positions (+Home Position)
    Number of Preset Tour Route: Max. 5

    Intelligent Function - Video

    Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, and Intrusion Detection

    Event Trigger Type

    External Device Input, Intelligent Function (Video), Intelligent Function (Audio), Timer, Day/Night Switch

    Number of Linked Events: 2

    Linked Event Conditions: OR, AND (wehter or not there is a sequence to events)

    Image Upload

    FTP/HTTP/SMTP (e-mail)
    Temporary storage memory in camera: Max. approx.
    5 MB Frame Rate: Max. 10 fps (JPEG)
    Max. 30 fps (H.264)

    Event Notification

    HTTP/SMTP (e-mail)

    Enhanced Digital Zoom

    Available

    On-Screen Display

    Available

    Daylight Saving Time

    Available

    Viewer

    Camera Viewer
    Mobile Camera Viewer

    Included Software

    Camera Management Tool RM-Lite
    Recorded Video Utility
    On-Screen Display Assist Tool

    Language German/English/Spanish/French/Italian/Polish/Russian/Turkish/Thai/Korean/Chinese/ (Simplified) /Japanese
    Network Terminal LAN x 1(RJ45, 100Base-TX (auto / full-duplex / half-duplex))
    Audio Input Terminal (common for LINE IN & MIC IN)  Φ3.5 mm (Φ0.14 in.) mini-jack connector (monaural)
    LINE IN (connect to an amplifier microphone) or MIC IN (connect to a microphone w/o amplifier)
    -Switch LINE IN/MIC IN in the Setting Page.
    Audio Output Terminal (LINE OUT) Φ3.5 mm (Φ0.14 in.) mini-jack connector (monaural) LINE OUT x 1 (connect to an amplifier speaker)
    External Device I/O Terminal Input x 2, Output x 2
    Memory Card SD Memory Card, SDHC Memory Card, SDXC Memory Card Compatible, Frame Rate: Max. 1 fps (JPEG) Max. 30 fps (H.264)
    Operating Environment Temperature: -10°C - +50°C (+14°F - +122°F)
    Humidity: 5% - 85% (without condensation)
    Power Supply  PoE: PoE power supply via LAN connector (IEEE802.3at Type1 compliant) AC Adapter" PA-V18 (100 - 240 V AC) (sold seperately)
    External power source: 24 V AC/12 V DC
    Dimensions

    (Φ x H) Φ132 x 155mm (Φ5.20 x 6.10 in.)

    Weight

    Approx. 1140 g (2.52 lb.)
