  • Blackmagic - Mini Converter Sync Generator image

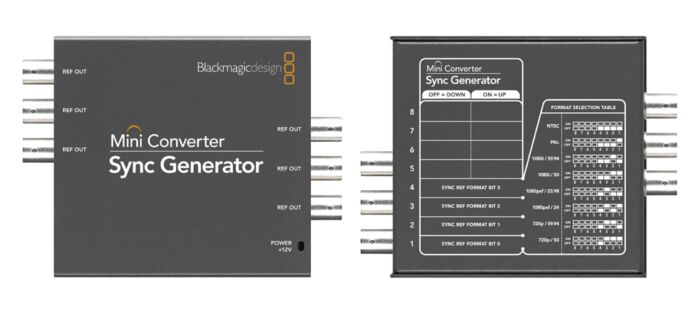

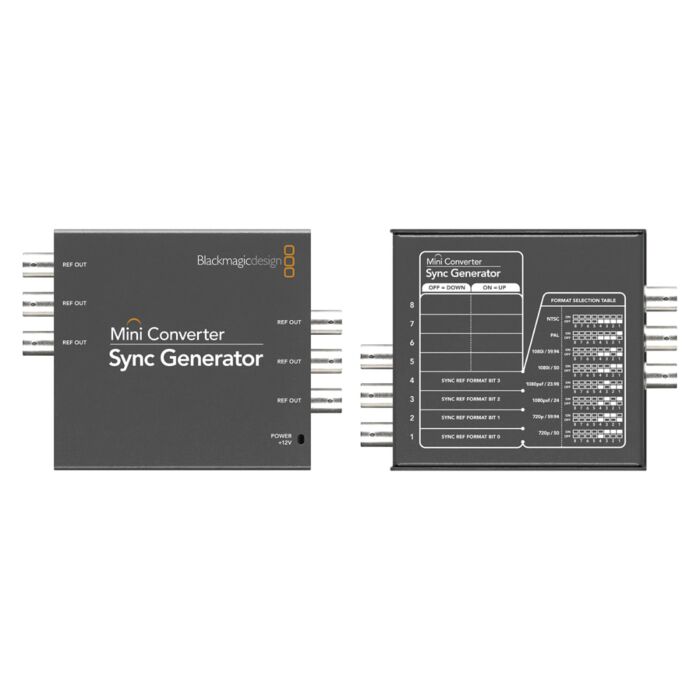

Blackmagic - Mini Converter Sync Generator

Quick Overview

Six Reference Outputs, Tri-Sync or Black Burst, Field Battery Power via Converter Cable.

Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri-Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!


  • Music Production
  • Concerts
  • Large Events
  • Houses Of Worship
  • Specifications
    Analog Video  6 x common reference outputs
    Multi Rate Support Via mini switches
    Updates and Configuration Via USB 2.0 high speed (480 Mb/s)
    Re-clocking Yes
    Analog Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50 and 720p59.94
    Copy Protection For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP
    Software Control Mac OS X and Windows software upgrade via USB
    Settings Control Mini Switches or USB software
    Firmware Upgrade Via included firmware updater application
    Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point
    110 Volt Power Consumption 36 mA
    220 Volt Power Consumption 18 mA
    Operational Voltage Range 12V
    Product Warranty  3 Year Limited Manufacturer's Warranty
