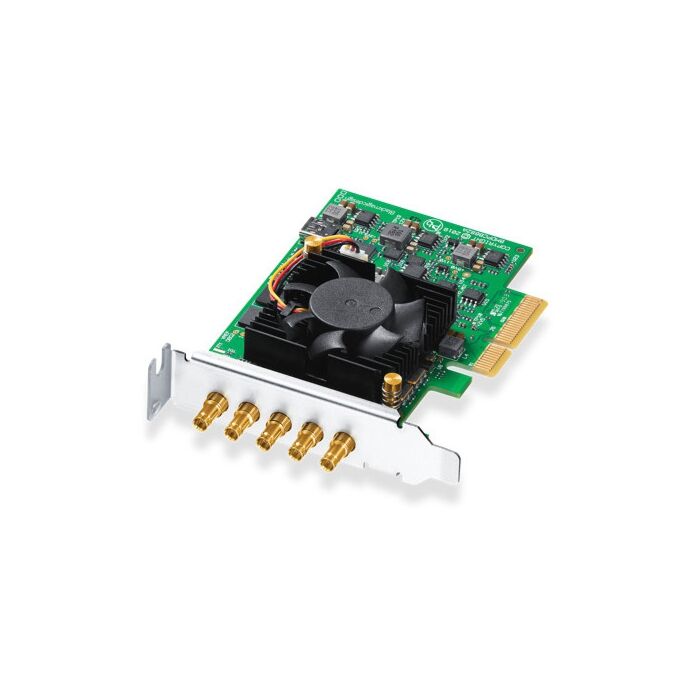

  • Blackmagic Design | DeckLink Duo 2 Mini Image #1

Blackmagic Design DeckLink Duo 2 Mini

Quick Overview

The DeckLink Duo 2 Mini offers flexible format and system support, letting you work with popular compressed video formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed video. Not just and imaging company, come experience the Aegis way and build/update your perfect system.


New Item Available Soon! Get your preorders in now!




Overview

The DeckLink Duo 2 Mini is compatible with macOS, Windows, and Linux-based workstations. Drivers and utility software are included on an SD card for the supported platforms.



Features:



  • Up to 1080p60 capture/playback
  • 8-/10-bit 4:2:2 in all modes up to 1080p30
  • 12-bit 4:4:4 up to 1080p30 in playback mode
  • HD to SD down conversion
  • SD to HD upconversion
  • Hardware cross conversion between 720p and 1080p on playback
  • Rec. 601 and Rec. 709 color space
  • BNC reference input
  • Blackburst and tri-sync
  • Supports 16 channels of embedded 24-bit 48 kHz SDI audio in HD and SD resolutions
  •


    Applications:



  • digital signage
  • real-time capture
  • media player applications
  • Specifications

    Blackmagic Design BDLKDUO2LP Specs

    Supported Operating Systems macOS 10.13, 10.14 or Later
    Windows 7, 8.1, 10 (All 64-Bit)
    Linux
    Inputs/Outputs 4 x BNC 3G-SDI (Bidirectional, 12-Bit SD/HD)
    1 x Reference In
    Sync Input Tri-Sync or Black Burst
    Computer Interface PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots)
    Audio Channels 16 x Embedded, HD and SD (Input and Output)
    Video Support HD:
    1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1080PsF: 23.98, 24, 25, 29.97, 30
    1080i: 50, 59.94, 60
    720p: 50, 59.94, 60

    SD:
    525i: 59.94 NTSC
    625i: 50 PAL
    Audio Sample Rate 24-Bit, 48 kHz
    Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4
    Conversion Modes Playback: 720p to 1080p, 1080p to 720p
    Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom)
    Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9)
    Color Space Conversion: Hardware-Based, Real-Time
    Color Space Rec. 601, Rec. 709
    SDI Color Precision 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
    8, 10-Bit YUV 4:2:2 (In All Modes)
    12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
    SDI Video Sampling 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
    8, 10-Bit YUV 4:2:2 (In All Modes)
    12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
    SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601
    SDI Metadata Support RP 188/SMPTE 12M-2 and Closed Captioning
    Power Consumption 10 W
    Certifications FCC, CE, and C-Tick
    Operating Temperature 41 to 104°F / 5 to 40°C
    Storage Temperature -4 to 113°F / -20 to 45°C
    Relative Humidity (non-condensing) 0 to 90%
    Length 3.9" / 9.9 cm
    Weight 3.1 oz / 87 g
