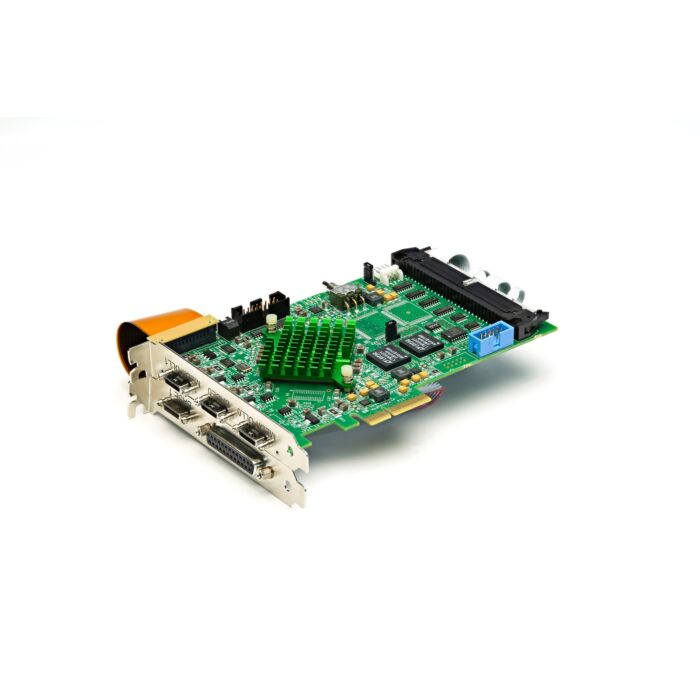

BitFlow AXN-PC2-CL-2xE (AXNPC2CL2xE) Camera Link Frame Grabber

The Axion-CL uses BitFlow's brand new PCIe Gen 2.0 platform, first designed for the Cyton-CXP. To develop this platform, we first started with a clean slate, and asked ourselves, "what does a next generation frame grabber need?" For sure, it needs a PCIe Gen 2.0 back end for the ultimate high speed access to host memory. It also needs a sophisticated DMA engine to handle the demands of new camera interface standards. New standards demand flexibility. For example, CXP cameras will soon be able to put out streams of random sized ROIs, something our previous generation DMA engine was not capable of. In addition, modern computers are getting faster, and busier. The new platform had to be robust in the face of a very busy system, fault tolerant in cases where memory couldn't be accessed. Completely self sufficient as CPUs these days are maxed out. As has already been shown with the Cyton-CXP, BitFlow's Gen 2 plaform meets all these goals.

The BitFlow's PCIe Gen 2 platform is the foundation for today's and tomorrows frame grabbers, be it CoaXPress, Camera Link, or whatever new standards emerge from the Machine Vision industry.


Features:

• Camera Link 2.0 Compliant
• Supports up to two cameras
• Supports base, medium, full, 80-bit (10-tap) CL cameras
• Supports CL clocks up to 85 MHz
• Supports simultaneous capture two 80-bit/85 MHz cameras
• Industry standard SDR Camera Link connectors
• Support PoCL and non-PoCL cameras
• Support dual connector PoCL
• Provides Safe Power, full protection from all power line faults
• Cameras can be accurately synchronized, or can be completely independent
• PCI Express x4 Gen 2.0 interface (also works in x8 and x16 slots)
• Compatible with PCI Express Gen 1.0 slots
• Separate I/O for each camera
• SDR Camera Link connectors
• Highly deterministic, low latency frame grabber to camera trigger
• Supports simultaneous communications to all cameras
• Windows "sees" a separate frame grabber for each camera
• FlowThru technology means no on-board memory is needed
• StreamSync acquisition engine optimizes synchronization between acquisition and DMA
• StreamSync buffer manager maximize DMA channel efficiency
• Acquire variable length frames from line scan cameras
• Acquire image sequences well beyond the 4GB barrier
• No frame rate limit
• Triggers and encoders for external control of acquisition
• Programmable signal generator for camera control (independent for each camera)
• Quadrature encoder support including sophisticated triggering schemes
• Encoder divider/multiplier
• Drivers, utilities and examples for Windows and Linux
• Supported on both 32-bit and 64-bit platforms
• Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
• Full GenICam support for control and capture
• RoHS compliant

Applications:

Adding the Axion-CL to your application is simple with our SDK, which supports both 32-bit and 64-bit operating systems. Applications can be developed using C/C++/.NET and our sophisticated buffer management APIs. In addition, free drivers can be downloaded from our web site for most 3rd party machine vision packages. The Cyton models are software compatible with each other, as well as with all the other current BitFlow frame grabbers. This makes migrating applications from Camera Link or analog to CXP simple and quick.
