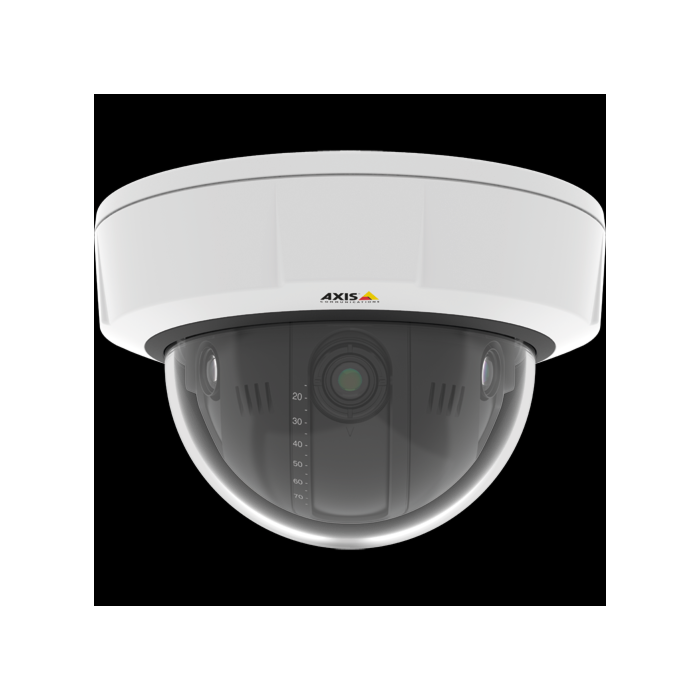

Axis Q3709-PVE (Q3709PVE) (3840x2880) Network Camera

*Product is discontinued, Replacement Option: Q3819-PVE

3 x 1/2.3” Progressive Scan CMOS, 3 x Lenses, Fixed Focus, 5.0 mm, F2.8.

SKU
Axis Q3709-PVE

Axis Q3709-PVE has three sensors that together provide a detailed 180° overview over a large area, providing situational awareness needed in, i.e. city surveillance applications.

Installation is easy, reliable and cost-efficient. No focusing is required since the lenses are factory-focused. The camera comes in a stylish and discreet design with easily repaintable and removable weather shield that protects against rain, snow and sunlight and allows for easy blending in with the environment. Thanks to the panoramic view, Axis Q3709-PVE can be a solution where a complete coverage of a large area is required in high detail, with an efficient one-camera installation.

Features:

  • 180° panoramic overview
  • Smooth video at up to 30 fps in 3 x 4K
  • Factory-focused lenses
  • Efficient one-camera installation
  • Outdoor-ready

  • Applications:

  • Video Conferencing
  • Meetings
  • Houses Of Worship
  • Security
  • Surveillance
  • Image Sensor 3 x 1/2.3” progressive scan CMOS
    Lens

    3 x lenses, fixed focus, 5.0 mm, F2.8 Combined horizontal angle of view: 180°

    Day and Night

    Automatically removable infrared-cut filter

    Minimum Illumination

    Color: 2 lux, F2.8 B/W: 0.4 lux, F2.8

    Shutter Time

    1/23250 s to 2/5 s

    Camera Angle Adjustment

    Pan +/- 180° Tilt 18°–75°

    Video Compression H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
    Resolutions 3 x (3840x2880 to 320x240)
    Frame Rate 3 x 4K Ultra HD: Up to 25/30 fps with power line frequency 50/60 Hz 3 x 11 MP: Up to 16/20 fps with power line frequency 50/60 Hz 3 x 5 MP (16:9): Up to 25/30 fps with power line frequency 50/60 Hz 3 x 5 MP (4:3): Up to 16/20 fps with power line frequency 50/60 Hz
    Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth VBR/CBR H.264
    Image Settings Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zone, Backlight compensation, WDR – dynamic contrast, Fine tuning of behavior at low light, Text and image overlay, Privacy mask, Capture alignment
    Pan/Tilt/Zoom Digital PTZ, Preset positions, Guard tour
    Security Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management, Cross-Origin Resource Sharing
    Supported Protocols IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
    Application Programming Interface Open API for software integration, including VAPIX® and AXIS Camera Application Platform
    AXIS Video Hosting System (AVHS) with One-Click Camera Connection ONVIF Profile S, specification
    Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
    Analytics AXIS Video Motion Detection 4, active tampering alarm, audio detection Support for AXIS Camera Application Platform enabling installation of third-party applications
    Event Triggers Analytics, external input, edge storage events
    Event Actions Overlay text, pre- and post-alarm video buffering, video recording to edge storage, SNMP trap
    File upload: FTP, SFTP, HTTP, HTTPS network share and email Notification: email, HTTP, HTTPS and TCP
    Built-in Installation Aids Pixel counter
    Casing IP66- and NEMA 4X-rated, IK10 impact-resistant aluminum casing with transparent, polycarbonate cover and dehumidifying membrane Encapsulated electronics Captive screws (resistorx 30) Color: White NCS S1002-B For repainting instructions and impact on warranty contact your Axis partner
    Memory 3 GB RAM, 768 MB Flash
    Power Power over Ethernet IEEE 802.3at Type 2 Class 4, max. 23.1 W, typical 16.7 W
    Connectors RJ45 10BASE-T/100BASE-TX/1000BASE-T
    Edge Storage Support for recording to dedicated network-attached storage (NAS)
    Operating Conditions -40 °C to 55 °C (-40 °F to 131 °F) Arctic Temperature Control: Start-up as low as -40 °C (-40 °F) Humidity 10–100% RH (condensing)
    Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F)
    Approvals EN 55022 Class A, EN 50121-4, IEC62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, C-tick AS/NZS CISPR 22 Class A, KCC KN22 Class A, KN24, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EN 50581, IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-30, IEC 60068-2-78, IEC/EN 62262 IK10
    Dimensions 205 x 205 x 172 mm (8.1 x 8.1 x 6.8 in)
    Weight 2.2 kg (4.8 lb) including weather shield
    Included Accessories RJ45 Push-pull connector (IP66), L-key, Weather shield, Installation Guide, Windows decoder 3-user license
    Optional Accessories Axis Mounts AXIS PoE+ Midspans AXIS T8604 Media Converter Switch AXIS T8129 PoE Extender AXIS T8415 Wireless Installation Tool AXIS P8221 Network I/O Audio Module RJ45 IP66-rated cables with premounted connector (Cat 6)
    Video Management Software AXIS Camera Companion, AXIS Camera Station, Video management software from Axis’ Application Development Partners
    Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese
    Warranty Axis 3–year warranty and AXIS Extended Warranty
