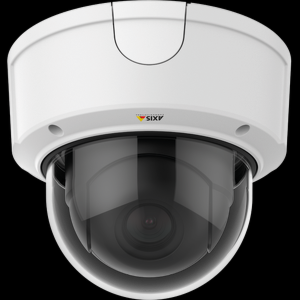

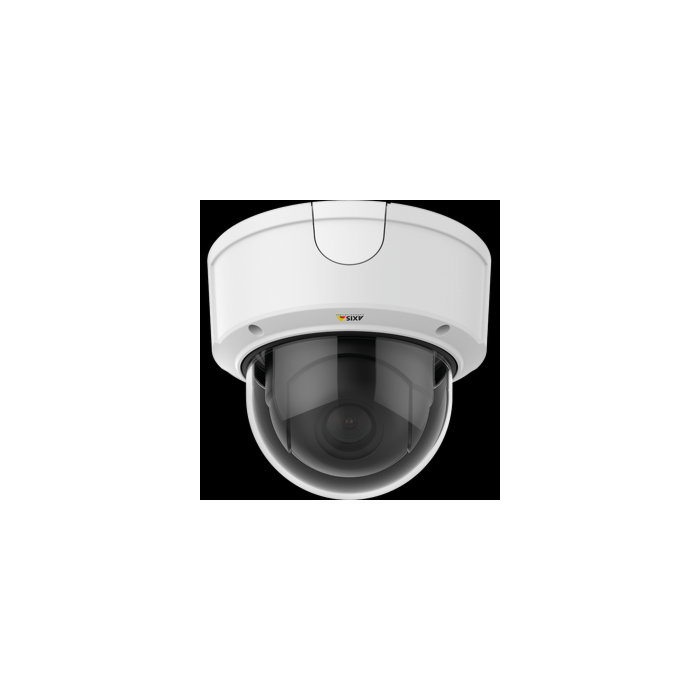

Axis Q3615-VE (Q3615VE) (1920x1200) Network Camera
Progressive Scan RGB CMOS 1/1.9”, Varifocal, 4.1–9 mm, F1.6.
SKU
Axis Q3615-VE
Axis Q3615-VE network camera is designed for mission-critical surveillance scenarios. Delivering superior image quality, uptime and protection, it’s perfect for critical infrastructure, transportation, and city surveillance, for example.
With our biggest sensors ever in a fixed dome camera, Axis Q3615-VE provides the best possible image quality no matter what. WDR – Forensic Capture lowers noise and increases the image signal when there are both light and dark areas in a scene. Axis’ Lightfinder technology delivers sharp color images in poor light conditions. And electronic image stabilization keeps the picture steady. Axis Q3615-VE also gives you HDTV 1080p at 30 fps with WDR or 60 fps without WDR, so it captures fast-moving objects and people in high resolution. Axis’ Zipstream technology – saves bandwidth and storage by up to 50% without sacrificing quality.
Features:
Applications:
| Image Sensor | Progressive scan RGB CMOS 1/1.9” |
| Lens |
Varifocal, 4.1–9 mm, F1.6 Horizontal field of view: 100°–46° Vertical field of view: 60°–29° Remote focus and zoom, P-Iris control, IR corrected |
| Day and Night |
Automatically removable infrared-cut filter |
| Minimum Illumination |
HDTV 1080p 25/30 fps with WDR - forensic capture and Lightfinder: Color: 0.1 lux at 50 IRE, F1.6; B/W: 0.02 lux at 50 IRE, F1.6 HDTV 1080p 50/60 fps: Color: 0.2 lux at 50 IRE, F1.6; B/W: 0.03 lux at 50 IRE, F1.6 |
| Shutter Time |
1/52500 s to 2 s |
| Camera Angle Adjustment |
Pan 370° Tilt +/- 81° Roll +/- 110° |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG |
| Resolutions | 1920x1200 to 160x90 |
| Frame Rate | HDTV 1080p (1920x1080) with WDR: 25/30 fps with power line frequency 50/60 Hz HDTV 1080p (1920x1080) without WDR: 50/60 fps with power line frequency 50/60 Hz WUXGA (1920x1200) without WDR: 25/30 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG Axis' Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 |
| Multi-view Streaming | 2 individually cropped out view areas |
| Image Settings | Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zone, Noise reduction, Fine tuning of behavior at low light, Rotation: 0°, 90°, 180°, 270° including Corridor Format, Text and image overlay, Privacy mask, Mirroring of images, Electronic image stabilization, Barrel distortion correction WDR – forensic capture: Up to 120 dB depending on scene |
| Pan/Tilt/Zoom | 2.2x optical zoom and 2x digital zoom Digital PTZ Optical zoom and digital PTZ preset positions |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management |
| Supported Protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Camera Connection ONVIF Profile S, specification Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
| Analytics | AXIS Video Motion Detection 3, Active tampering alarm, Audio detection Support for AXIS Camera Application Platform enabling installation of AXIS Perimeter Defender, AXIS Digital Autotracking and third-party applications |
| Event Triggers | Analytics, External input, Edge storage events, Shock detection |
| Event Actions | File upload: FTP, SFTP, HTTP, HTTPS network share and email Notification: email, HTTP, HTTPS and TCP Video recording to edge storage, Pre- and post-alarm video buffering, Zoom or digital PTZ preset, Overlay text, Send SNMP trap |
| Data Streaming | Event Data |
| Built-in Installation Aids | Pan/tilt/roll: Designed to withstand at least 200 full cycles, Autoroll, Remote zoom, Remote focus, Pixel counter |
| Casing | IP66-, IP67-, IP6K9K- and NEMA 4X-rated, IK10 impact-resistant casing with polycarbonate dome, aluminum base and dehumidifying membrane Color: White NCS S 1002-B For repainting instructions of casing and impact on warranty, contact your Axis partner |
| Sustainability | PVC Free |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 4.5 W, max 10.4 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| Storage | Support for microSD/microSDHC/microSDXC card SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS recommendations |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F) Humidity 10–100% RH (condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals | EMC EN 55022 Class B, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35 Safety IEC/EN/UL 60950-22 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/67, ISO 20653 IP6K9K, NEMA 250 Type 4X, IEC/EN 62262 IK10 |
| Dimensions | Depth: 166 mm (6 9/16 in) Depth with weather shield: 224 mm (8 13/16 in) ø 198 mm (7 13/16 in) |
| Weight | 2.3 kg (5.1 lb) with weather shield |
| Included Accessories | AXIS Connector Guard A, Safety hook wire, Installation Guide, Windows decoder 1-user license, Resistorx® L-key, Weather shield, Mounting bracket, Drill template, Cable gasket, Axis U-shape conduit adapter |
| Optional Accessories | AXIS T94V01L Recessed Mount, AXIS T94V01D Pendant Kit, AXIS T98A17-VE Cabinets, Axis Pole Mounts, Axis Ceiling Mounts, Axis Wall Mounts, AXIS T90B Illuminators, AXIS ACI Conduit Adapter 3/4" NPS, AXIS Q36-VE Smoked Dome, AXIS Surveillance microSDXC™ Card |
| Video Management Software | AXIS Companion, AXIS Camera Station, Video management software from Axis’ Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | Axis 3–year warranty and AXIS Extended Warranty |
