AXIS P1254 Network Camera Image 1

Axis P1254 (1280x720) Network Camera

Axis M3045–WV Image 1

Axis M3045–WV (M3045WV) (1920x1080) Network Camera

Axis P1264 (1280x720) Network Camera

1/4” (effective) progressive scan RGB CMOS, Fixed iris, fixed focus, pinhole
SKU
Axis P1264

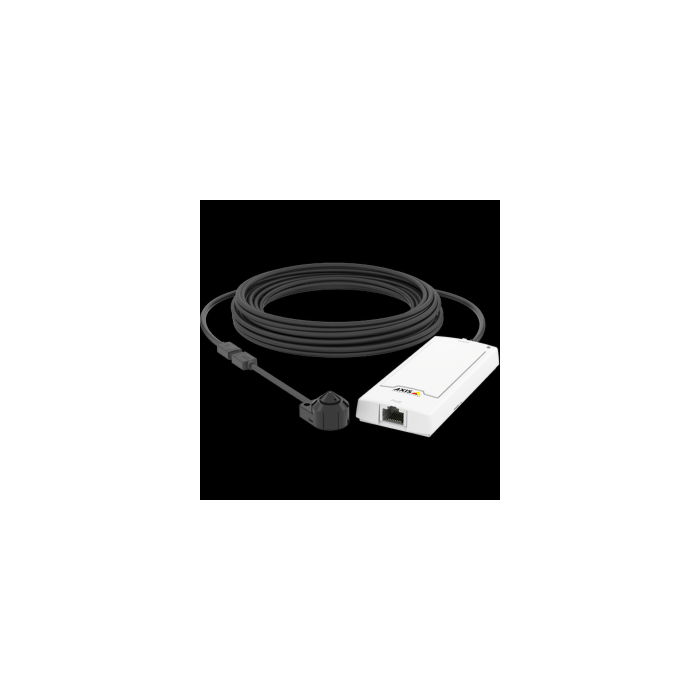

Axis P1264 Network Camera is a cost-effective and extremely discreet pinhole camera with HDTV 720p performance. Comprising a sensor unit and a main unit, the indoor camera is ideal for use in stores, ATMs, and ticket, vending and health monitoring machines. Axis P1264 is composed of the following: an Axis F1004 Pinhole Sensor Unit, comprising a lens and image sensor, and Axis P12 Mk II Main Unit, which is the body of the camera. The camera comes with a detachable 8-m (26 ft) cable for connecting the sensor unit to the main unit. The cable enables the main unit to be placed away from the viewing point where there is space.

The main unit, with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in.) makes it easy to install in tight places. It provides HDTV 720p video and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings. Axis P1264 supports Axis’ Zipstream technology, which is a more efficient implementation of the H.264 video encoder. It can lower bandwidth and storage use by an average of 50% or more for many surveillance scenarios. The encoding technology ensures that important details are maintained while unnecessary data is heavily compressed.


Features:

  • Pinhole lens for extremely discreet surveillance
  • HDTV 720p and 57º horizontal field of view
  • Axis’ Zipstream technology
  • Built-in microSD card slot
  • Power over Ethernet

  • Applications:

  • Meetings
  • Security/Surveillance
  • Remote Viewing
  • Video Conferencing
  • Webcasts/Remote Viewing
  • Image Sensor

    1/4” (effective) progressive scan RGB CMOS

    Lens

    Fixed iris, xed focus, pinhole 3.7 mm, F2.5
    Horizontal angle of view: 57°
    Vertical angle of view: 31°

    Minimum Illumination

    Color: 0.5 lux

    Shutter Time

    1/24500 s to 1/6 s

    Video Compression

    H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Pro les Motion JPEG

    Resolutions

    1280x720 to 480x270

    Frame Rate 25/30 fps (50/60 Hz)
    Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG
    Controllable frame rate and bandwidth VBR/CBR H.264
    Axis' Zipstream technology is H.264
    Image Settings

    Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure value, Exposure control, Exposure zones, Local contrast, Rotation, Corridor Format, WDR, Text and image overlay, Privacy mask, Mirroring of images

    Security

    Password protection, IP address ltering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized certi cate management

    Supported Protocols

    IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH

    Application Programming Interface Open API for software integration, including VAPIX® and AXIS Camera Application Platform
    Analytics

    AXIS Video Motion Detection 3, Active tampering alarm Support for AXIS Camera Application Platform enabling installation of AXIS Cross Line Detection and third-party applications

    Event Triggers Analytics, Edge storage evernts
    Event Actions

    File upload: FTP, SFTP, HTTP, HTTPS, network share
    Notication: email, HTTP, HTTPS and TCP
    Pre- and post-alarm video buffering
    Send SNMP trap, WDR mode

    Built-in Installation Aids Pixel counter
    Data Streaming Event data
    Casing

    AXIS P12 Mk II Main Unit: Steel and plastic
    AXIS F1004 Pinhole Sensor Unit: Metal casing (aluminum)

    Memory 512 MB RAM, 256 MB Flash
    Power

    Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2 max 4.0 W, typical 2.5 W

    Connectors

    Female RJ45 for 10BASE-T/100BASE-TX PoE RJ12 for sensor unit

    Edge Storage

    Support for microSD/microSDHC/microSDXC card
    Support for recording to dedicated network-attached storage (NAS)

    Operating Conditions

    -20°C to 50°C (-4°F to 122°F)
    Humidity 10-85% RH (non-condensing)

    Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F)
    Approvals

    EMC: EN 55022 Class B, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B
    Safety: IEC/EN/UL 60950-1
    Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27

    Dimensions

    AXIS P12 MkII Main Unit: 16.5x46x109mm(5/8x113/16x 4 5/16 in)
    AXIS F1004 Pinhole Sensor Unit: 27 x 20 x 18 mm (1 1/16 x 13/16 x 11/16 in)
    Sensor Unit Cable: 8 m (26 ft)

    Weight

    AXIS P12 Mk II Main Unit: 72 g (2.5 oz)
    AXIS F1004 Pinhole Sensor Unit: 14 g (0.5 oz)
    Sensor Unit Cable: 128 g (4.5 oz)

    Included Accessories

    Installation Guide, Windows decoder 1-user license, AVHS Authentication key
    AXIS F8206 Pinhole Mounting Bracket
    8-m (26 ft) black cable

    Optional Accessories

    AXIS T8120 15 W Midspan 1-port
    AXIS T8129 PoE Extender
    Network cable coupler indoor slim
    AXIS Surveillance microSDXC Card 64GB
    AXIS F7315 Cable White 15 m
    AXIS F8204 Mounting Band
    AXIS F9201 Black Height Strip Housing
    AXIS F9201 Silver Height Strip Housing



    Video Management Software

    AXIS Camera Companion, AXIS Camera Station, Video management software

    Warranty Axis 3-year warranty and AXIS Extended Warranty
