Axis P1254 (1280x720) Network Camera

1/4” (effective) progressive scan RGB CMOS, Fixed iris
SKU

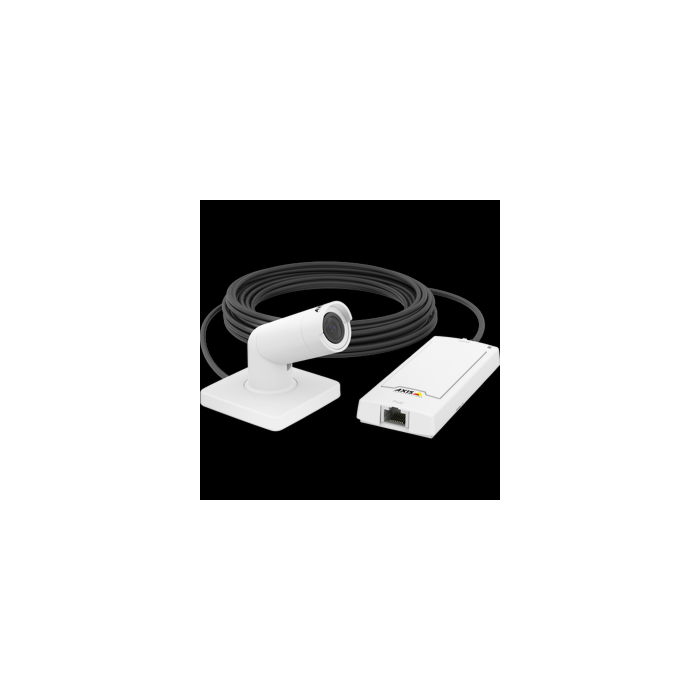

AXIS P1254 (1280x720) Network Camera

Axis P1254 Network Camera offers a cost-effective mini bullet-style camera for discreet surveillance in stores, kiosks, hotels and offices. The sensor unit of this indoor HDTV 720p camera allows for easy installation on walls or ceilings, and can rotate and tilt to the desired viewing direction.

Axis P1254 is composed of the following: an Axis F1004 Bullet Sensor Unit, comprising a lens and image sensor, and Axis P12 Mk II Main Unit, which is the body of the camera. The sensor unit comes with a detachable 8-m (26 ft) cable for connection to the main unit. The cable enables the main unit to be placed away from the viewing point where there is space. With a base plate smaller than the palm of a hand, the bullet-style sensor unit is both small and sleek. It provides a 102° horizontal field of view and color video in light as low as 0.4 lux.

Features:

  • Easy and discreet installation
  • Sensor unit rotates and tilts to the desired viewing direction
  • HDTV 720p and 102° horizontal field of view
  • Axis’ Zipstream technology
  • Built-in microSD card slot

  • Applications:

  • Meetings
  • Security/Surveillance
  • Remote Viewing
  • Video Conferencing
  • Webcasts/Remote Viewing


  • Image Sensor

    1/4” (effective) progressive scan RGB CMOS

    Lens

    Fixed iris
    2.1 mm, F2.2
    Horizontal eld of view: 102°
    Vertical eld of view: 56°

    Minimum Illumination

    Color: 0.4 lux

    Shutter Time

    1/24500 s to 1/6 s

    Camer Angle Adjustment

    Pan: ±180°
    Tilt: 0 to 90°
    Rotation ±90°

    Video Compression

    H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Pro les Motion JPEG

    Resolutions

    1280x720 to 480x270

    Frame Rate 25/30 fps (50/60 Hz)
    Video Streaming

    Multiple, individually con gurable streams in H.264 (Main, Baseline and High Pro les) and Motion JPEG
    Controllable frame rate and bandwidth
    VBR/MBR H.264
    Axis' Zipstream technology in H.264

    Image Settings

    Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure value, Exposure control, Exposure zones, Local contrast, Rotation, Corridor Format, WDR, Text and image overlay, Privacy mask, Mirroring of images

    Security

    Password protection, IP address ltering, HTTPS encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized certi cate management

    Supported Protocols

    IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH

    Application Programming Interface Open API for software integration, including VAPIX® and AXIS Camera Application Platform
    Analytics

    Video motion detection, Active tampering alarm
    Support for AXIS Camera Application Platform enabling installation of AXIS Cross Line Detection and third-party applications

    Event Triggers Analytics, Edge storage events
    Event Actions

    File upload: FTP, SFTP, HTTP, HTTPS, network share
    Notication: email, HTTP, HTTPS and TCP
    Pre- and post-alarm video buffering
    Send SNMP trap, WDR mode

    Built-in Installation Aids Pixel counter
    Casing

    AXIS P12 Mk II Main Unit: Steel and plastic
    AXIS F1004 Bullet Sensor Unit: Plastic

    Memory 512 MB RAM, 256 MB Flash
    Power

    Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2 max 4.0 W, typical 2.5 W

    Connectors

    Female RJ45 for 10BASE-T/100BASE-TX PoE RJ12 for sensor unit

    Storage

    Support for microSD/microSDHC/microSDXC card up to
    64 GB (card not included)
    Support for recording to dedicated network-attached storage (NAS)

    Operating Conditions

    -20°C to 50°C (-4°F to 122°F)
    Humidity 10-85% RH (non-condensing)

    Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F)
    Approvals

    EMC: EN 55022 Class B, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35
    Safety: IEC/EN/UL 60950-1
    Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27

    Dimensions

    AXIS P12 MkII Main Unit: 16.5x46x109mm(5/8x113/16x 4 5/16 in)
    AXIS F1004 Bullet Sensor Unit: 60x60x89mm(23/8x23/8x31/2in)
    Sensor Unit Cable: 8 m (26 ft)

    Weight

    AXIS P12 Mk II Main Unit: 72 g (2.5 oz)
    AXIS F1004 Bullet Sensor Unit: 55 g (1.94 oz)
    Sensor Unit Cable: 128 g (4.5 oz)

    Included Accessories

    Installation Guide, Windows decoder 1-user license, AVHS Authentication key

    Optional Accessories

    AXIS T8120 15 W Midspan 1-port
    AXIS T8129 PoE Extender
    Network cable coupler indoor slim
    AXIS Surveillance microSDXC Card 64GB
    AXIS F7315 Cable White 15 m

    Video Management Software

    AXIS Camera Companion, AXIS Camera Station, Video management software

    Warranty Axis 3-year warranty and AXIS Extended Warranty
