AXIS P1224-E (1280x720 to 320x180) Image 1

Axis P1224-E (P1224E) (1280x720) Network Camera

AXIS P1254 Network Camera Image 1

Axis P1254 (1280x720) Network Camera

Axis P1244 (1280x720) Network Camera

1/4” (effective) progressive scan RGB CMOS, Fixed Iris
SKU
Axis P1244 Network Camera

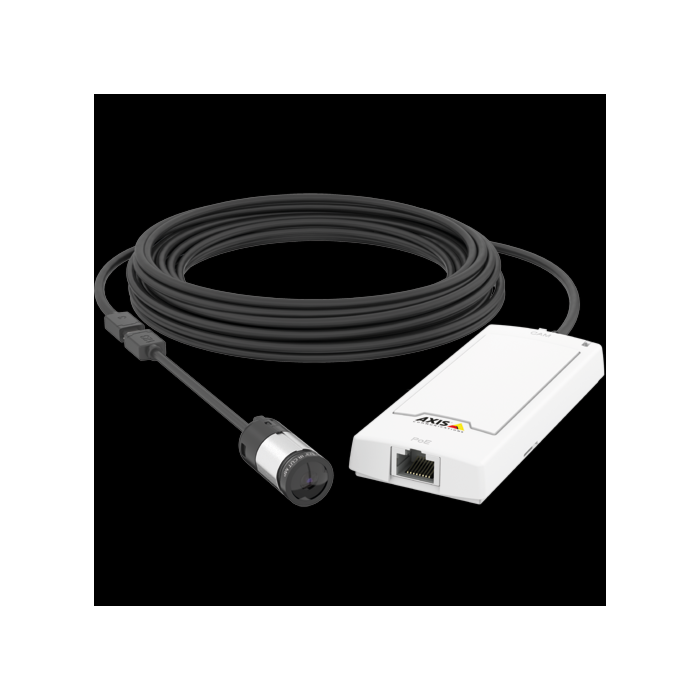

Axis P1244 is a small, cost-effective modular camera with HDTV 720p performance. The indoor camera is ideal for use in highly discreet installations such as in retail stores, banks and museums, and for installation in tight places such as in ATMs (automated teller machines), ticket, vending and health monitoring machines. Axis P1244 is composed of the following: an Axis F1004 Sensor Unit, comprising a lens and image sensor, and Axis P12 Mk II Main Unit, which is the body of the camera. The sensor unit comes with a detachable 8-m (26 ft) cable for connection to the main unit. The cable enables the main unit to be placed away from the viewing point where there is space.

Features:

  • HDTV 720p and 102° horizontal field of view
  • Easy and highly discreet installation
  • Axis’ Zipstream technology
  • Built-in microSD card slot
  • Power over Ethernet

  • Applications:

  • Meetings
  • Security/Surveillance
  • Remote Viewing
  • Video Conferencing
  • Webcasts/Remote Viewing
  • Image Sensor

    Progressive scan RGB CMOS 1/4”

    Lens

    Fixed iris, Fixed focus
    1.56 mm, F2.8
    Horizontal angle of view: 145°

    Light Sensitivity

    1.8-10000 lux

    Shutter Time

    1/24500 s to 1/6 s

    Video Compression H.264 (MPEG-4 Part 10/AVC),  Motion JPEG
    Resolutions

    1280x720 to 320x180

    Frame Rate Up to 25/30 fps (50/60 Hz) in all resolutions
    Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG
    Controllable frame rate and bandwidth VBR/CBR H.264
    Image Settings

    Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Rotation, Text and image overlay, Mirroring of images, Privacy mask, Axis’ Corridor Format

    Security

    Password protection, IP address ltering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certi cate Management

    Supported Protocols IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
    Application Programming Interface Open API for software integration, including VAPIX® and AXIS Camera Application Platform
    Analytics

    Video motion detection, Active tampering alarm
    Support for AXIS Camera Application Platform enabling installation of AXIS Video Motion Detection 3, AXIS Cross Line Detection

    Event Triggers Analytics, External input, Video loss
    Event Actions

    File upload: FTP, SFTP, HTTP, HTTPS, network share and email Noti cation: email, HTTP, HTTPS and TCP
    External output activation
    Video recording to edge storage
    Pre- and post-alarm video buffering

    Built-in Installation Aids Pixel counter
    Casing

    Main unit: Polycarbonate casing
    Sensor unit: IP66- and NEMA 4X-rated metal casing (aluminum)

    Memory 256 MB RAM, 128 MB Flash
    Power

    Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2 (max 6.49 W)
    8-28 V DC max 4.7 W

    Connectors RJ45 10BASE-T/100BASE-TX PoE
    RJ12 for the sensor unit
    Terminal blocks for power, 1 alarm input and 1 output
    Edge Storage

    Support for microSD/microSDHC/microSDXC card
    Support for recording to dedicated network-attached storage (NAS)

    Operating Conditions

    -20°C to 50°C (-4°Fto122°F)
    Main unit: Humidity 10-85% RH (non-condensing)
    Sensor unit: Humidity 10-85% RH (non-condensing)

    Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F)
    Approvals

    EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
    EN 61000-6-1, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B,
    KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,
    IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6 Class 4M4,
    IEC 60068-2-27 Class 4M3, 60068-2-78 Class 3K3
    Sensor unit: IEC/EN/UL 60950-22, IEC/EN 60529 IP66,
    NEMA 250 Type 4X, IEC 60068-2-14, IEC 60068-2-30,
    IEC 60068-2-78 Class 4K3

    Dimensions

    ø 20 x 52mm(13/16 x 2 1/16in)

    Weight

    Main unit: 109 g (0.24 lb)
    Sensor unit: 250 g (0.55 lb)

    Included Accessories

    Mounting kit, Installation Guide, Windows decoder 1-user license, AVHS Authentication key

    Optional Accessories

    Mounting brackets, AXIS T8120 Midspan 15 W 1-port, AXIS P7701 Video Decoder, AXIS P8221 Network I/O Audio Module

    Video Management Software

    AXIS Camera Companion, AXIS Camera Station, Video management software

    Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese
    Warranty Axis 3-year warranty and AXIS Extended Warranty
