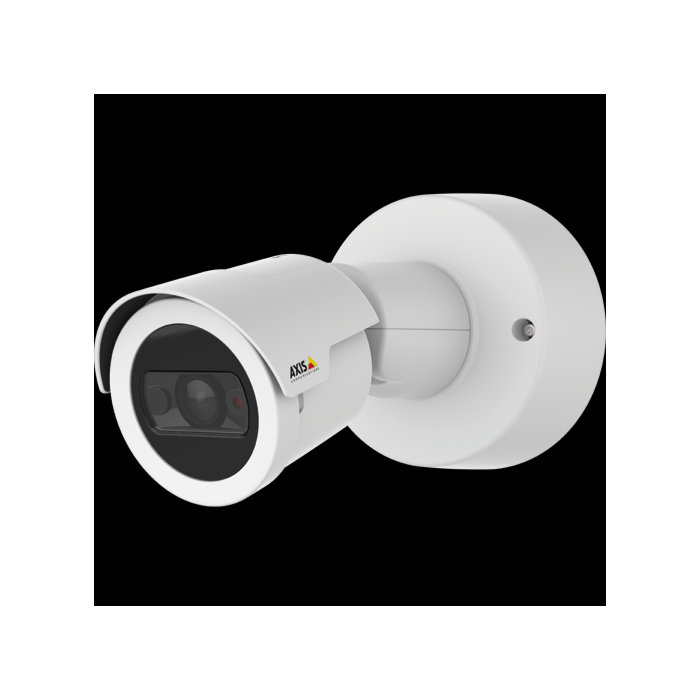

Axis M2025-LE (F1005E) (1920x1080) Network Camera
1/2.8" progressive scan RGB CMOS, 2.8 mm, F2.0.
SKU
Axis M2025-LE
AXIS M2025-LE Network Camera is a small bullet camera that offers Axis excellence at a surprisingly affordable price. It has built-in IR illumination and HDTV 1080p video quality, and it’s a perfect choice when you need small, easy-to-install cameras both outdoors and in. The camera is available in both black and white.
Features:
Applications:
| Image Sensor | 1/2.8" progressive scan RGB CMOS |
| Lens | M12 mount, Fixed iris, Fixed focus 2.8 mm, F2.0 Horizontal field of view: 115° Vertical field of view: 64° |
| Day & Night | Automatically removable infrared-cut filter |
| Minimum Illumination | Color: 0.2 lux at 50 IRE, F2.0 B/W: 0.04 lux at 50 IRE, F2.0 0 lux with IR illumination on |
| Shutter Time | 1/65000 s to 2 s |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG |
| Resolutions | 1920x1080 to 160x90 |
| Frame Rate | Up to 25/30 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth Axis' Zipstream technology in H.264 VBR/MBR H.264 |
| Multi-view Streaming | Up to 2 individually cropped out view areas in full frame rate |
| Image Settings | Compression, Color, Brightness, Sharpness, Contrast, Local contrast, White balance, Exposure control, WDR – Forensic Capture: up to 115 dB depending on scene. Rotation: 0°, 90°, 180°, 270° including Corridor Format, Text and image overlay, Privacy masks, Mirroring of images |
| PTZ | Digital PTZ |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management |
| Supported Protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection. ONVIF® Profiles S and G, specifications |
| Analytics | AXIS Video Motion Detection 3, Active tampering alarm Support for AXIS Camera Application Platform enabling installation of AXIS Cross-line detection, AXIS Digital Autotracking and third-party applications |
| Event Triggers | Analytics, Edge storage events, External input, Time scheduled |
| Event Actions | Notification: email, HTTP, HTTPS and TCP and SNMP trap Video recording to edge storage Send video clip Pre- and post-alarm video buffering Overlay text |
| Data Streaming | Event Data |
| Built-in Installation Aids | Pixel counter |
| Casing | IP66-, NEMA 250 Type 4X-, and IK08-rated, polymer casing Encapsulated electronics, Captive screws (Torx 10) M2025-LE: Color: White NCS S 1002-B M2025-LE Black: Color: Black NCS S 9000-N |
| Sustainability | PVC free |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical: 4.1 W, Max.: 6.3 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| IR Illumination | Power-efficient, long-life 850 nm IR LED. Range of reach up to 15 m (50 ft) depending on scene |
| Storage | Support for microSD/microSDHC/microSDXC card Support for recording to dedicated network-attached storage (NAS) For SD card and NAS recommendations |
| Operating Conditions | –30°C to 50°C (–22 °F to 122 °F) Humidity 10–100% RH (condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals | EMC EN 55032 Class A, EN 55024, IEC 62471, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-14, IEC 60068-2-6, IEC 60068-2-27, IEC/EN 62262 IK08, IEC/EN 60529 IP66, NEMA 250 Type 4X Safety IEC/EN/UL 60950-22 |
| Dimensions | Height, straight: 174 mm (6.9 in) Height, angled: 118 mm (4.6 in) ø 101 mm (4.0 in) |
| Weight | 0.5 kg (1.1 lb) |
| Included Accessories | Installation Guide, Windows decoder 1-user license, Torx L-key, Connector guard |
| Optional Accessories | AXIS T94B03L Recessed Mount AXIS T94B02D Pendant kit AXIS T94B01P Conduit Back Box AXIS T94B02M J-Box/Gang Box Plate Axis mounts AXIS Surveillance microSDXC™ Card |
| Video Management Software | AXIS Camera Companion, AXIS Camera Station, Video management software from Axis’ Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | Axis 3-year warranty and AXIS Extended Warranty |
