  • Axis F4005 - E | DOme Camera Image #1

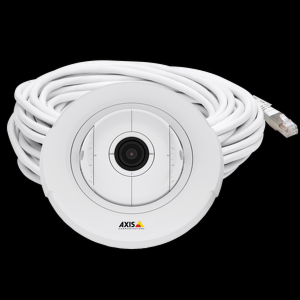

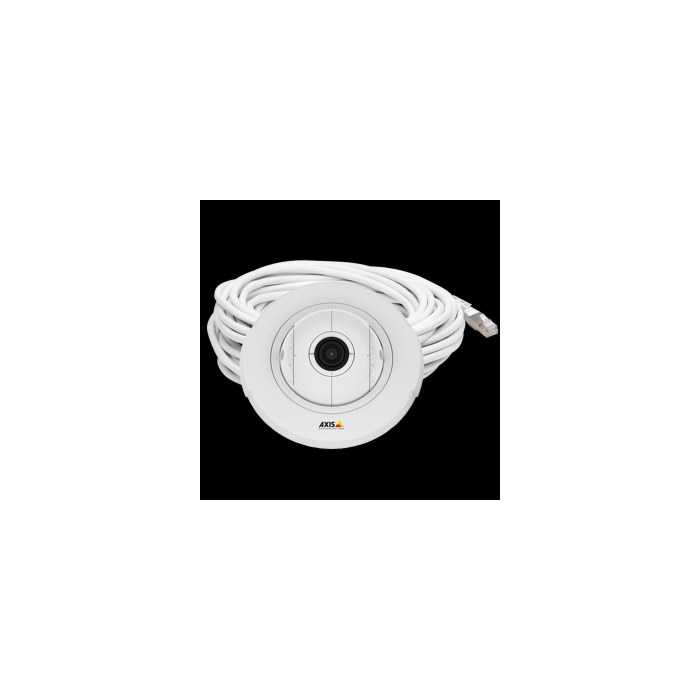

Axis F4005 (1920x1200) Dome Sensor Unit

Quick Overview

1/2.8” (effective) progressive scan RGB CMOS, 2.8 mm, F2.0
Overview

Axis F4005 is a compact, easy-to-install recessed dome sensor unit for discreet video surveillance indoors in retail, office and banking environments. The included mounting adapter enables the sensor unit to be installed on hard surfaces as well.

For use with an Axis F Main Unit, Axis F4005 provides a 1080p resolution and a wide 113º horizontal field of view. It has a tilt range of 120°, enabling the sensor unit to be directed to the desired viewing area. Axis F4005 also supports Axis’ Corridor Format to suit more vertically oriented areas such as staircases, hallways and aisles. A rotation tool is supplied for leveling the image. The sensor unit comes with a 12-m (39 ft.) cable for connection to a main unit.

Features:

  • Compact, recessed dome for indoor surveillance
  • Fixed lens with 1080p resolution
  • Wide 113° horizontal field of view
  • Supports WDR – Forensic Capture (with Axis F41/F44 Main Unit)
  • Supports Axis’ Corridor Format

  • Applications:

  • Security
  • Surveillance
  • Indoor / Outdoor Capability
  • Specifications
    Image Sensor

    1/2.8” (effective) progressive scan RGB CMOS

    Lens

    2.8 mm, F2.0
    With AXIS F34/F41/F44, 1080p
    Horizontal angle of view: 113°
    Vertical angle of view: 62°

    With AXIS F34/F44,
    720p
    Horizontal angle of view: 73°
    Vertical angle of view: 41°



    Shutter Time

    WDR – Forensic Capture
    With AXIS F41: 1080p, 25/30 fps (50/60 Hz)
    With AXIS F44: 720p, 12.5/15 fps (50/60 Hz)

    Resolutions

    1920x1200/1080

    Frame Rate Up to 50/60 fps with power line frequency 50/60 Hz
    Casing Plastic
    Operating Conditions

    -30 °C to 55 °C (-22 °F to 131 °F) Humidity 10-85% RH (non-condensing)

    Storage Conditions

    -40 °C to 65 °C (-40 °F to 149 °F)

    Approvals

    ECE R10 rev.04, EN 50121-4, IEC/EN/UL 60950-1,
    IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14,
    IEC 60068-2-30, IEC 60068-2-60, IEC 60068-2-78, IEC 62236-4, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
    EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, EN 50581, IEC 60068-2-60,
    IEC 60721-3-5 5M3 (vibration, shock)

    Dimensions

    Depth: 38 mm (1 1/2 in)
    ø 112 mm (1/6 in)
    12-m (39 ft) cable

    Weight

    530 g (1.1 lb)

    Included Accessories Installation Guide, Rotation tool
    Required Harware

    AXIS F34/F41/F44 Main Unit

    Warranty Axis 3-year warranty and AXIS Extended Warranty
