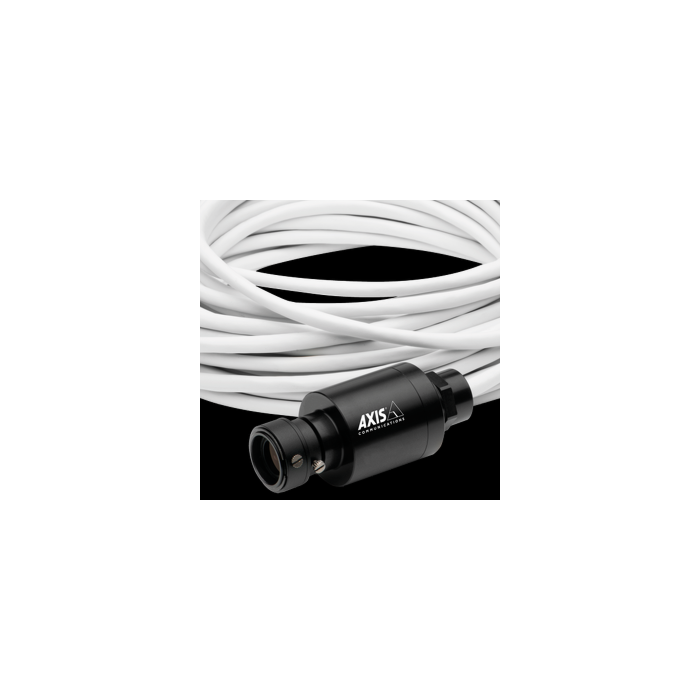

  • Axis P1364-E |  Sensor Unit Image #1

Axis F1035-E (1920x1200) Sensor Unit

Quick Overview

1/2.8” (effective) progressive scan RGB CMOS, Fixed iris
Overview

AXIS F1035-E Sensor Unit, together with an AXIS F Main Unit, provides wide area coverage with a fisheye view. It is ideal for highly discreet overview surveillance in indoor, outdoor and mobile surveillance applications; for example, at entrances, long corridors, around an ATM (automated teller machine), in emergency vehicles, buses and trams.

The small sensor unit can be installed in tight places, flush-mounted in a wall or ceiling, or incorporated in a lightbar on top of an emergency vehicle. The rugged, IP66-rated AXIS F1035-E withstands dust, rain, snow, vibrations, shock and temperature fluctuations.

AXIS F1035-E comprises an image sensor with 1080p resolution (1920 x 1080 pixels) and a fisheye lens that provides a 194° horizontal field of view.

AXIS F1035-E also supports Wide Dynamic Range (WDR) – Forensic Capture, which can be activated when the sensor unit is connected to a main unit that supports this feature. WDR – Forensic Capture enables a high level of detail to be visible in both the bright and dark areas of a scene.

AXIS F1035-E is available with a 3-m or 12-m (10-ft. or 39-ft.) pre-mounted cable for connection to an AXIS F Main Unit. The main unit can be placed further away in an indoor location, inside a vehicle or in an outdoor enclosure.

AXIS F1035-E comes with an AXIS F8201 Vari-angle Mounting Bracket that enables the sensor unit to be secured and tilted in any position.

Features:

  • Flexible, rugged design for indoor, outdoor and mobile use
  • Fisheye lens with 1080p resolution
  • Ultra-wide 194° horizontal field of view
  • Supports WDR – Forensic Capture (with AXIS F41/F44 Main Unit)

  • Applications:

  • Meetings
  • Security/Surveillance
  • Remote Viewing
  • Video Conferencing
  • Webcasts/Remote Viewing
  • Specifications
    Image Sensor

    1/2.8” (effective) progressive scan RGB CMOS

    Lens

    Fixed iris
    1.3 mm, F2.8
    With AXIS F34/F41/F44 in 1080p:
    Horizontal angle of view: 194°
    Vertical angle of view: 113°
    With AXIS F34/F44 in 720p:
    Horizontal angle of view: 112°
    Vertical angle of view: 66°

    Wide Dynamic Range

    WDR – Forensic Capture
    With AXIS F41: 1080p, 25/30 fps (50/60 Hz)
    With AXIS F44: 720p, 12.5/15 fps (50/60 Hz)

    Minimum Illumination

    Color: 0.3 lux

    Shutter Time

    With AXIS F34/F44:
    DTV 720p 25/30 fps: 1/28000 s to 2 s
    1080p 12.5/15 fps: 1/22500 s to 2 s
    With AXIS F41:
    HDTV 1080p 25/30/50/60 fps: 1/143000 s to 2 s
    WUXGA (1920x1200) 25/30 fps: 1/143000 s to 2 s



    Resolutions

    1920x1200/1080

    Frame Rate

    Up to 50/60 fps (50/60 Hz)

    Casing

    IP66-, IP67- rated, Aluminum

    Operating Conditions

    -30 °C to 55 °C (-22 °F to 131 °F) Humidity 10-100% RH (condensing)

    Approvals

    ECE R10 rev.04, EN 50121-4, IEC/EN/UL 60950-1,
    IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14,
    IEC 60068-2-30, IEC 60068-2-78, IEC 60529 IP4X, IEC 62236-4, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
    EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, EN 50581
    IEC 60068-2-60, IEC 60529 IP66/IP67,
    IEC 60721-3-5 5M3 (vibration, shock), IEC/EN/UL 60950-22, NEMA 250 Type 4X

    Dimensions

    62 mm (2 7/16 in) ø 30 mm (1 3/16 in)

    Weight

    3 m / 10 ft. cable: 96 g (0.21 lb)
    12 m / 39 ft. cable: 346 g (0.76 lb)

    Required Hardware

    AXIS F34/F41/F44 Main Unit

    Included Accessories

    Installation Guide
    AXIS F8201 Vari-angle Mounting Bracket

    Optional Accessories

    AXIS F8203 Fixed Mount Bracket
    AXIS F8204 Mounting Band
    AXIS F8212 Trim Ring
    AXIS F8235 Fisheye Accessory

    Warranty Axis 3-year warranty and AXIS Extended Warranty
