Axis 1145-L (1145L) (1920x1080) Network Surveillance Camera
1/2.9" RGB CMOS, Varifocal, P-Iris 3-10.5 mm, F1.4.
SKU
Axis 1145-L

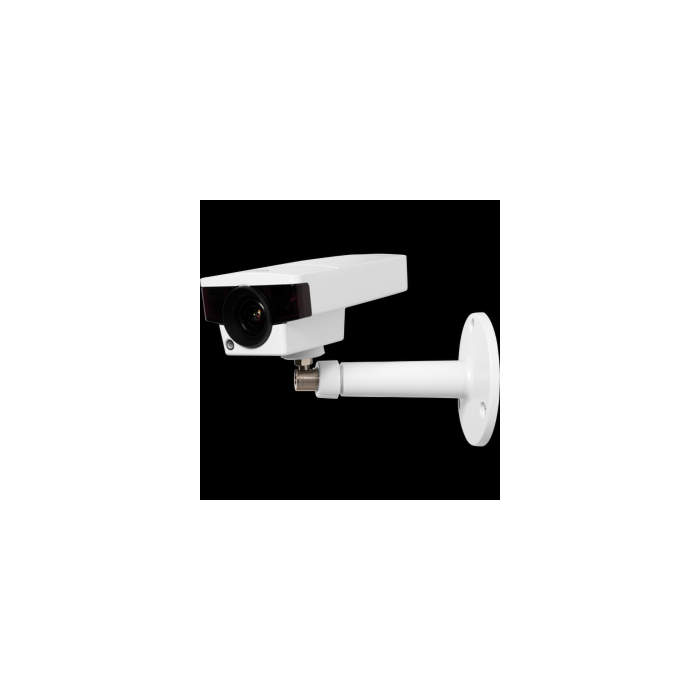

AXIS M1145-L Network Camera is an affordable and compact fixed camera, perfectly suited for boutiques, restaurants, hotels and offices or other places where surveillance is required during day and night.
Features:
Applications:
| Image Sensor | Progressive scan RGB CMOS 1/3" |
| Lens | Varifocal, P-Iris 3-10.5 mm, F1.4 Horizontal angle of view: 95°-34° Built-in IR-cut filter and motorized focus/zoom |
| Day & Night | Automatically removable infrared-cut filter |
| Minimum Illumination | Color 0.4 lux, F1.4 B/W: 0.08 lux, F1.4, 0 lux with IR illumination on |
| Shutter Time | 1/28000 s to 2 s with power line frequency 50 Hz 1/33500 s to 2 s with power line frequency 60 Hz |
| Pan/Tilt/Zoom | Digital PTZ |
| Video Compression | H.264 Main and Baseline Profile (MPEG-4 Part 10/AVC), Motion JPEG |
| Resolutions | 1920x1080 to 160x90 |
| Frame Rate | 25/30 fps in all resolutions with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth, VBR/CBR H.264 |
| Image Settings | Compression, Color, Brightness, Sharpness, Contrast, White balance, Backlight compensation, Mirroring of images, Rotation - including Corridor Format, Text and image overlay, Privacy mask Rotation: 0°, 90°, 180°, 270° Wide Dynamic Range - Dynamic Contrast, Exposure control, Exposure zones, Fine tuning of behavior at low light |
| Security | Password protection, IP address filtering, IEEE 802.1Xa network access control, HTTPSa encryption, digest authentication, user access log |
| Supported Protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection. ONVIF® Profiles S and G, specifications |
| Analytics | AXIS Video Motion Detection 3, Active tampering alarm Support for AXIS Camera Application Platform enabling installation of AXIS Cross-line detection, AXIS Digital Autotracking and third-party applications |
| Event Triggers | Analytics, Edge storage events, External input, Time scheduled |
| Event Actions | s File upload via FTP, HTTP and network share and email Notification via email, HTTP and TCP, Pre- and post-alarm video buffering, External output activation, Video recording to edge storage, Go to PTZ preset, Guard tour |
| Data Streaming | Event Data |
| Casing | Color: White NCS S 1002-B Aluminium and PC/Siloxane, 42% recycled plastic |
| Sustainability | PVC free |
| Memory | 256 MB RAM, 128 MB Flash |
| Power | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 Max. 10.5 W |
| Connectors | RJ45 10BASE-T/100BASE-TX 1 alarm input and 1 output |
| IR Illumination | Optimized IR, highly efficient LEDs with adjustable intensity and angle of illumination. Range up to 15 m (50 ft) |
| Storage | Support for microSD/microSDHC/microSDXC card Support for recording to dedicated network-attached storage (NAS) For SD card and NAS recommendations |
| Operating Conditions | 0 °C to 50 °C (32 °F to 122 °F) Humidity 20-80% RH (non-condensing) |
| Approvals | EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2,EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-1, IEC/EN 62471 EN 50581 |
| Weight | 260 g (0.57 lb) |
| Included Accessories | Stand, Installation Guide, Windows decoder 1-user license |
| Optional Accessories | Axis Mounts, Axis Housings & Cabinet, Axis Midspans, Axis Illuminators |
| Video Management Software | AXIS Camera Companion, AXIS Camera Station, Video management software from Axis’ Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | Axis 3-year warranty and AXIS Extended Warranty |
