Aegis-MA130-USB3E Interface Kit for Sony FCB-MA130

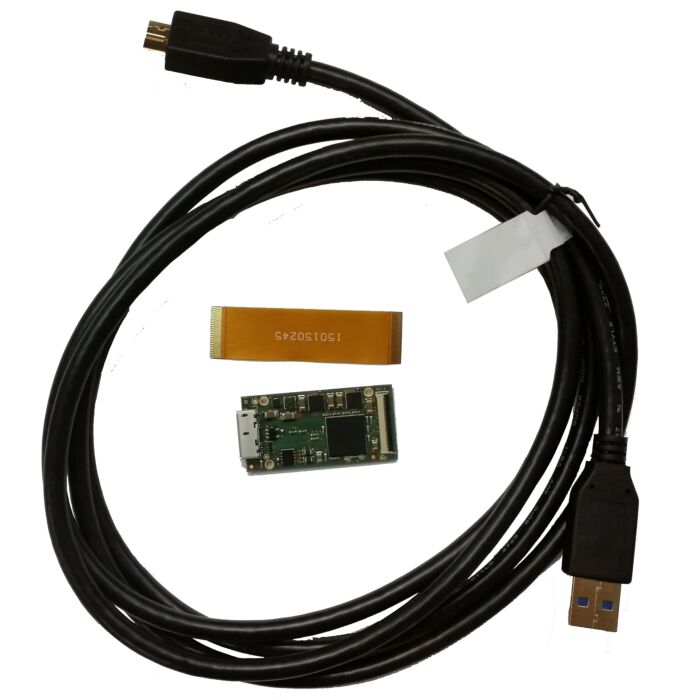

This kit includes: USB 3 Interface Board (Aegis-MA130-USB3-BOARD), Ribbon Cable, 6 foot (2 Meter) USB 3.0 Cable For Desktop computers with Embedded USB 3
SKU
Aegis AVP-MA130-USB3E333
The Aegis-MA130-USB3 Interface Kit is a perfect video capture bundle solution for the tiny Sony FCB-MA130 camera. The small size allows it to be fit into many applications and still capture high quality images and videos for easy streaming to a USB 3 host.
| Aegis-MA130-USB3-BOARD - USB 3 Interface Board | |
| Output Video Resolutions | 1920x1080 (Full HD), 1600x1200 (UXGA), 1280x960 (SXGA), 1280x720 (HD), 1024x768 (XGA), 800x480 (WVGA), 640x480 (VGA) |
| Output Still Image Resolutions | 4192x3104, 4128x3096, 3264x2448, 2592x1944, 1920x1080, 1280x960, 1280x720, 640x480 |
| FCB-MA130 Camera Control Options | USB Video Class Controls, Virtual COM Port |
| Input Connectivity | Sony FCB-MA130, 16-bit CMOS Parallel, YCbCr 4:2:2, 45-pin 0.35mm pitch FPC/FFC Cable, Matching p/n (Molex): 15015-0245 |
| Output and Control Connectivity | USB 3.0 SuperSpeed, Micro USB 3.0 “B” type connector |
| Power Supply | 5V (USB 3.0 Power) |
| Dimensions (inches) | 1.634’’ x 0.787’’ x 0.183’ |
|
Mounting Provisions
|
3x M1,6 mounting holes |
| Operating Temperature | -40°C - 85°C |
