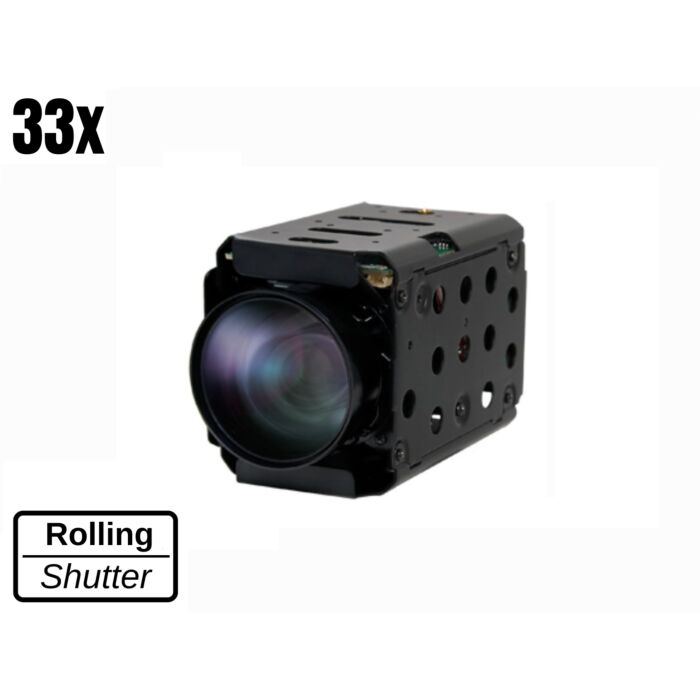

  • ATC-HZ7833M-LT | HD Block Camera Image #1

ATC-HZ7833M-LTN: KT&C 1/2.8" High-Definition Block Camera

Quick Overview

Both HD & SD Signals!!!


The ATC-HZ7883M-LT is a Block Camera is a multi-output zoom block camera module with a compact footprint, day/night capabilities and powerful processing power.

Overview

The camera features FULL HD 1080/60fps digital signal (via HD-SDI / LVDS / AHD / TVI) and composite analog signal (via CVBS), this block module is built to suit analog to state of the art HD digital signals.



Features:



Features:



  • 360x AF Zoom
  • 1080P,720P, 1080I
  • Mechanical Day & Night
  • Digital WDR, 3D DNR, Defog
  • Multi ProtocolHD-SDI, EX-SDI, LVDS, CVBS, HD-TVI
  •



    Applications:



  • Security
  • Surveillance
  • ITS
  • Military
  • UAVs
  • Specifications
    Image Sensor 1/2.8" Sony EXMOR Sensor
    Effective Pixels 2.13 Million
    Resolution 1080P
    Sensitivity Day Mode=0.5 Lux@F1.6   Night Mode =0.1 Lux @ F1.6
    S/N Rate More Than 52dB
    Synch Internal
    Backlight Comp OFF/BLC/HLC/WDR
    White Balance Auto/ATW/Indoor/Outdoor/Push/Manual
    Shutter Speed 1/25(30)/1/50(60)-1/30,000sec
    OSD English
    Motion Detection 4 zones
    Privacy Masking 16 Zones
    Picture Effects Freeze, Image Reverse, Nega
    Camera Control Protocol SONY VISCA, Baud Rate: 9.6 Kpbs
    Power Supply DC 12V (DC7V-15V)
    Power Consumption Max 5.0 W
