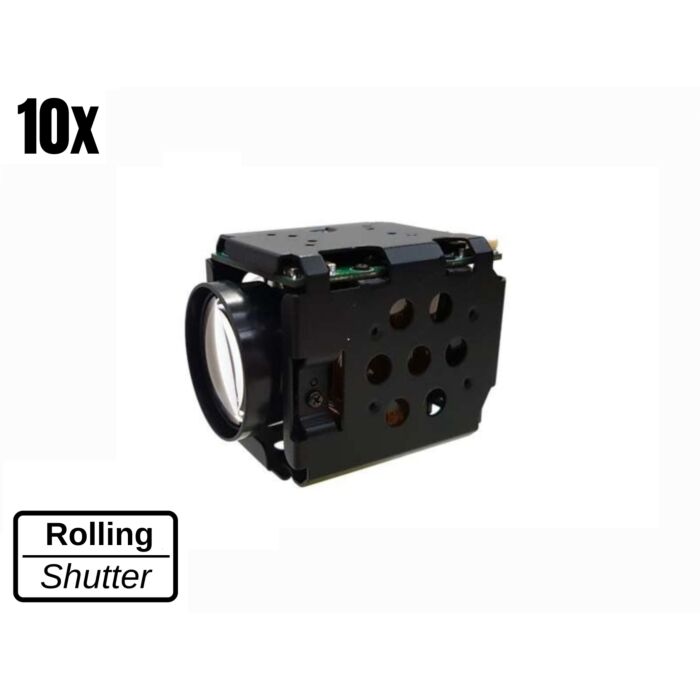

KT&C ATC-HZ7810LSC - ATC-HZ7810LC 10x Zoom HD Block Cameras

KT&C ATC-HZ7810 Block Camera Series

A smaller version of this camera is available. Contact your representative for more information.

Available Models:
ATC-HZ7810LC - LVDS, CVBS RS232 TTL
ATC-HZ7810LSC - LVDS, HD-SDI, CVBS RS232 TTL

SKU
ATC-HZ7810LSC/LC

Introducing the KT&C ATC-HZ7810LSC - ATC-HZ7810LC 10x Zoom HD Block Cameras – compact powerhouses that redefine imaging possibilities. These cameras are designed to deliver outstanding performance and versatility, making them indispensable tools across a wide range of applications.

The ATC-HZ7810 Series Full HD Zoom Block Cameras combine innovation and functionality. Equipped with a 1/3" 2.1M Progressive CMOS Image sensor, the ATC-HZ7810LC produces crystal-clear FULL HD 1080p/60fps images. Progressive scanning ensures clarity, even in low light conditions, and the Noise Reduction function guarantees low-noise imaging, enhancing performance.

Discover exceptional zoom capabilities with the 120x AF Zoom, featuring 10x Optical Zoom and 12x Digital Zoom. The camera excels in capturing intricate details from a distance, making it ideal for precision applications. The versatile Digital WDR and 3D DNR, coupled with Defog functionality, ensure that images remain clear and balanced, regardless of lighting conditions.

Seamlessly integrate these cameras into your existing setup with multi-output options. The ATC-HZ7810LC offers LVDS (Digital OUT), CVBS, and RS232 TTL video outputs, catering to diverse needs and allowing for easy integration with various systems.

Versatility defines these cameras' applications. From robotics and drones to surveillance cameras, police vehicle cameras, remote ocean vehicles, unmanned aerial vehicles, and more, the ATC-HZ7810LSC - ATC-HZ7810LC cameras excel across various fields. They find their place in intelligent traffic systems, industrial setups, video conferencing, and even house of worship environments.

In conclusion, the KT&C ATC-HZ7810LSC - ATC-HZ7810LC 10x Zoom HD Block Cameras redefine precision and versatility. With their powerful features, advanced sensor technology, and compatibility, they stand as essential tools in a multitude of applications. Elevate your imaging capabilities with the ATC-HZ7810LSC - ATC-HZ7810LC cameras and experience an unprecedented level of clarity and performance.


Features:

  • 1/2.8" Sony SONY EXMOR Progressive Scan
  • 120x AF Zoom (10x Optical Zoom, 12x Digital Zoom)
  • 1080P 30fps (25fps)
  • Mechanical Day & Night
  • Digital WDR, 3D DNR, Defog
  • Multi Protocol (Compatible with SONY VISCA)
  • LVDS (Digital OUT), CVBS, RS232 TTL


Applications:

  • Robotics
  • Drones
  • Bomb Disposal Robots
  • Unmanned Vehicles
  • Surveillance Camera
  • Police Vehicle Camera
  • ROV Camera
  • Remote Ocean Vehicle Camera
  • Unmanned Aerial Vehicle
  • Intelligent Traffic Camera
  • Industrial Camera
  • Unmanned Vehicle Camera
  • Video Conference
  • House of Worship Camera
 Model ATC-HZ7810LC
ATC-HZ7810LSC
Image Sensor 1/2.8" Exmor CMOS Image Sensor
Effective Pixels 2.38 Million Pixels
Resolution 1080P (1920x1080)
Sensitivity Day Mode: 0.15 Lux @ F1.5
Night Mode: 0.01 Lux @F1.5
S/N Rate More than 52 dB
Synchronization Internal
Back Light Compensation OFF/BLC/HLC/WDR
White Balance Auto / ATW / Indoor / Outdoor / Push / Manual
Shutter Speed 1/25(30)/1/50(60) - 1/60000 sec
OSD English
Motion Detection 3 Area
Privacy Zone Masking 1-24, Privacy Mask Zone
Picture Effects Freeze, Image Reverse (H, V, H/V) Negative
Camera Control Protocol SONY VISCA, Baud Rate : 9.6 Kbps
Video Output LVDS (Digital Out)
CVBS 1Vp (75 Omega)
HD-SDI
CVBS 1Vp-p (75 Omega)
HD-SDI, LVDS (Digital Out)
CVBS 1Vp-p (75 Omega)
Power Supply 12V DC (7V to 15V DC)
Power Consumption Max 4.4 W
DImensions 41.6mm x 45mm x 61.6mm
Lens f=5.1mm - 51mm (F1.6 - 1.8F)
Zoom Rate Optical to 10x
Digital 12x
Min. Working Distance 0.01m (Wide) / 1.0m (Tele)
FOV D=68.0°(W) - 6.7° (T)
Aperture DC Iris
Mechanical D&N ICR (IR Cut Filter Removable)
Interfaces 30 pin LVDS
Weight Approx. 210g
Ambient Operating Temperature -10° - +50°C
Storage Temperature -20° - +60°C
