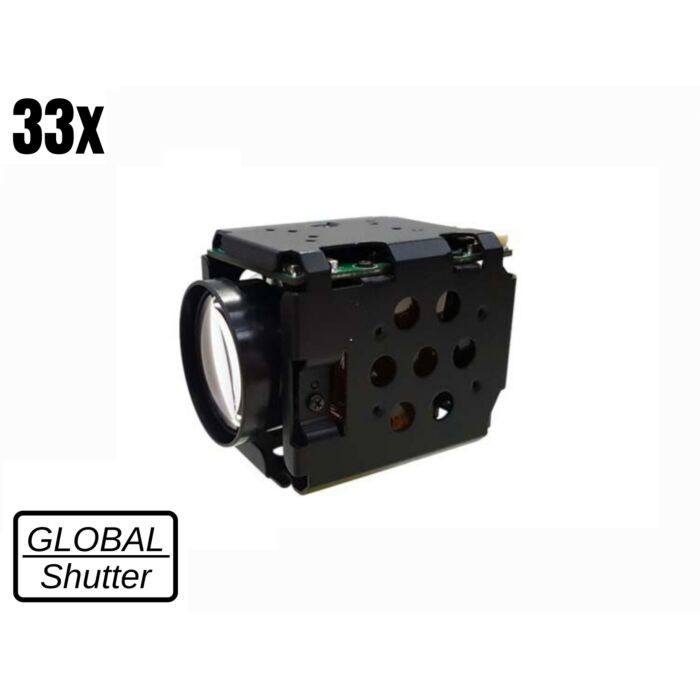

KT&C ATC-HZ5533M-LP 1/2.9" SONY Progressive Scan Global Shutter CMOS Camera

*Product is discontinued, Replacement Option: KT&C ATC-HZ5530Z-LPN

KT&C's brand new ATC-HZ5533M-LP Progressive Scan Global Shutter Camera with Sony technology.

SKU
ATC-HZ5533M-LP

Elevate surveillance with the KT&C ATC-HZ5533M-LP Global Shutter CMOS Camera. Experience 33x optical zoom, 720p clarity, and versatile applications. Ideal for traffic monitoring, surveillance, law enforcement, and more. This camera boasts a 1/2.9" SONY Progressive Scan Global Shutter CMOS, ensuring crisp images even in fast-paced scenarios. With 120x AF Zoom (33x optical zoom and 12x digital zoom), you can capture intricate details from a distance. The camera supports various frame rates (60/50/30/25fps) for seamless video playback.

Transition smoothly between day and night modes using Mechanical Day & Night functionality, delivering clear images around the clock. True WDR enhances image quality in challenging lighting conditions. The 3D DNR and Defog features further optimize image clarity by reducing noise and enhancing visibility.

Effortlessly control and configure the camera using UART RS232-TTL communication protocols, including Pleco-D, Pelco C, VISCA, and Hitachi. This versatile camera finds applications in diverse fields such as traffic management, surveillance, military operations, law enforcement, border patrol, monitoring, video conferencing, and low vision scenarios.

With its exceptional features, the KT&C ATC-HZ5533M-LP camera is a reliable choice for capturing details and ensuring security in various environments. Its advanced technology and adaptable design make it a valuable asset for numerous applications.

Features:

  • 1/2.9" SONY Progressive Scan Global Shutter CMOS
  • 120x AF Zoom(33x optical zoom, 12x digital zoom)
  • 720p 60/50/30/25fps
  • Mechanical Day & Night
  • True WDR
  • 3D DNR, Defog
  • UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)


Applications:

  • Traffic
  • Surveillance
  • Military Applications
  • Law Enforcement
  • Border Patrol
  • Monitoring
  • Video Conferencing
  • Low Vision Applications
Image Sensor 1/2.9" SONY Progressive Scan Global Shutter CMOS
Effective Pixels 1.58MP 1456(H) x 1088(V)
Video Output Mode LVDS / Parallel / CVBS
Max. Video Resolution LVDS / Parallel :720p@60(50fps)
Synchronization System Internal / External Option
Min.Illumination Day mode: 0.05Lux(F1.6)
Night mode: 0.03Lux(F1.6/ IR-cut filter on)
DSS OFF, AGC28dB
S/N Rate More than 52dB(AGC off, DSS off)
Lens AF Optical zoom lens(DC Iris), IR Corrective
f=5.1mm~51mm
F1.6(W)~1.8(T)
Horizontal 54.0°(W)~4.9°(T), Vertical 31.0°(W)~4.0°(T)
Zoom Ratio Optical 10x / Digital 12x
Focus Min.Working Distance 0.01m(Wide)/1.0m(Tele)~
Focus Control Auto/Manual/Interval/One Shot/Preset
AE mode Auto/Shutter Priority/Iris Priority/Manual/Bright
Brightness 0~14
Manual Shutter x32~x2(Low shutter), 1/30(25), 1/60(50)~1/30000
Manual Iris F1.6~F19, Close
Sense-up Off~32fields
ETC Spot AE, Slow AE
D&N Mode Auto/Day(Color)/Night(BW)/External-H or L
White Balance AUTO/ATW/Indoor/Outdoor/Push/Manual
Image Freeze Off/On
Image Flip Off/Horizontal/Vertical/H+V(180° Flip)
Privacy Mask Zone 16 Zones/14 mask color selectable, semi-transparency
Digital Image Stabilization Yes
Motion Detection 4 Zones
D-WDR Off/Low/Middle/High
WDR Off/Low/Middle/High
BLC Off/On, Area selectable
HLC Off/0~20, Color selectable
AGC Max.58dB
Sharpness Adjustable(0~15)
3D-DNR On/Off(1~5)
2D-DNR Auto/Manual
Defog Off/Low/Middle/High
Preset Position 256 position Presets(Zoom,Focus), 16Memory Presets, Custom Preset
Language English,Janpanese,Russian,Spanish,German,France,Portuguese,Chinese
UART RS232 TTL +5.0V(+3.3V compatible)
VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection
2400/48009600/19200/38400/57600/115200bps
UTC -
Supply Voltage 12VDC(7V to 15VDC)
Power Consumption Max.5.2W / Non-working zoom&focus 3.2W
Dimension(mm) 41.6X45X61.6mm
Weight Approx.124g
Operating Temperature -10~+50, Humidity(20~80%)
Storage Temperature -20~+60, Humidity(20~95%)
