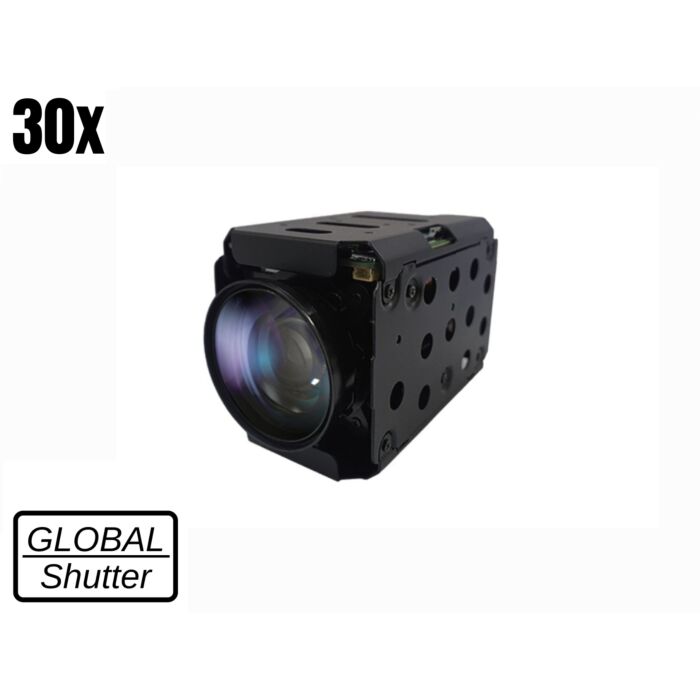

KT&C ATC-HZ5530W-LPN HD Auto Focus Optical Zoom Global Shutter Block Camera

The ATC-HZ5530W-LPN is part of KT&C's ATC-HZ55 Series Optical Auto Focus Zoom Cameras.
SKU
ATC-HZ5530W-LPN

Introducing the KT&C ATC-HZ5530W-LPN HD Auto Focus Optical Zoom Global Shutter Block Camera - an embodiment of cutting-edge imaging technology that combines power and precision.

This multi-output (Parallel / LVDS) zoom block camera module redefines versatility by seamlessly blending compact design with formidable processing capabilities, catering to diverse imaging needs.

At its core lies a state-of-the-art 1/1.8" Progressive Scan Global Shutter CMOS sensor, ensuring exceptional image quality. The Mechanical Day & Night functionality enables you to capture clear footage even in challenging lighting conditions, enhancing overall performance.

The camera's ATCHZ5530W-LPN AF Zoom, with 30x optical zoom and 12x digital zoom capabilities, ensures detailed shots from varying distances. The inclusion of True WDR (Wide Dynamic Range) technology guarantees optimal exposure in high-contrast scenes, resulting in well-balanced and vivid images.

Supporting Full HD 1080p resolution at 60/50/30/25fps, the camera offers a seamless and immersive viewing experience. Its prowess is particularly invaluable in difficult-to-view applications and demanding environments, consistently exceeding expectations with its high-quality imaging.

The ATC-HZ5530W-LPN is a master in producing images that go beyond the ordinary, making it a game-changer in various scenarios. Whether you're engaged in traffic monitoring, surveillance, military applications, law enforcement, border patrol, monitoring, video conferencing, or low vision applications, this camera excels.

The camera's advanced features, including Global Shutter, Digital Image Stabilization, Motion Detection, and Image Flip (E-Flip), make it a comprehensive solution for precision imaging requirements.

In conclusion, the KT&C ATC-HZ5530W-LPN HD Auto Focus Optical Zoom Global Shutter Block Camera is a testament to innovation and performance. Its blend of compact design, powerful capabilities, and advanced features sets new standards in imaging excellence. Elevate your imaging capabilities today with the KT&C ATC-HZ5530W-LPN and experience a new era of clarity and precision.



Features:

  • Global Shutter
  • Digital Image Stabilization
  • Motion Detection
  • Image Flip (E-Flip)

Applications:

  • Traffic
  • Surveillance
  • Military Applications
  • Law Enforcement
  • Border Patrol
  • Monitoring
  • Video Conferencing
  • Low Vision Applications
Image Sensor   1/1.8" CMOS
Effective Pixels   3.19MP 2064(H) x 1544(V)
Video Output Mode Common LVDS / CVBS
AHD/TVI/LVDS
Max. Video Resolution   LVDS/ Parallel : 1080p@60(50fps)
Synchronization System   Internal / External Option
Min.Illumination
Min.Illumination   Day mode: 0.05Lux(F1.6)
Night mode: 0.03Lux(F1.6/ IR-cut filter on)
DSS OFF, AGC28dB
S/N Rate   More than 52dB(AGC off, DSS off)
Lens
Lens Type AF Optical zoom lens(DC Iris), IR Corrective
Focal Length f=6.0mm~180mm
F-value F1.5(W)~4.3(T)
Angle of View Horizontal 61.2°(W)~2.32°(T), Vertical 36.1°(W)~1.31°(T)
Zoom Ratio   Optical 30x / Digital 12x
Focus Min.Working Distance   .1m(Wide) / 1.5m(Tele)~∞
Focus Control   Auto/Manual/Interval/One Shot/Preset
Exposure
AE mode   Auto/Shutter Priority/Iris Priority/Manual/Bright
Brightness   0~14
Manual Shutter   x32~x2(Low shutter), 1/30(25), 1/60(50)~1/30000
Manual Iris   F1.6~F19, Close
Sense-up   Off~32fields
ETC   Spot AE, Slow AE
Functions
D&N Mode   Auto/Day(Color)/Night(BW)/External-H or L
White Balance   AUTO/ATW/Indoor/Outdoor/Push/Manual
Image Freeze   Off/On
Image Flip   Off/Horizontal/Vertical/H+V(180° Flip)
Privacy Mask Zone   16 Zones/14 mask color selectable, semi-transparency
Digital Image Stabilization   Yes
Motion Detection   4 Zones
D-WDR   Off/Low/Middle/High
WDR   Off/Low/Middle/High
BLC   Off/On, Area selectable
HLC   Off/0~20, Color selectable
AGC   Max.58dB
Sharpness   Adjustable(0~15)
3D-DNR   On/Off(1~5)
2D-DNR   Auto/Manual
Defog   Off/Low/Middle/High
Preset Position   256 position Presets(Zoom,Focus), 16Memory Presets, Custom Preset
Language   English,Janpanese,Russian,Spanish,German,France,Portuguese,Chinese
Communication
UART Remote RS232 TTL +5.0V(+3.3V compatible)
Protocol VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection
Baud rate 2400/48009600/19200/38400/57600/115200bps
UTC   -
Power
Supply Voltage   12VDC(7V to 15VDC)
Power Consumption   Max.5.2W / Non-working zoom&focus 3.2W
Pysical and Temperature
Dimension(mm)   55 x 64 x 123mm
Weight   Approx.380g
Operating Temperature   -10~+50, Humidity(20~80%)
Storage Temperature   -20~+60, Humidity(20~95%)
