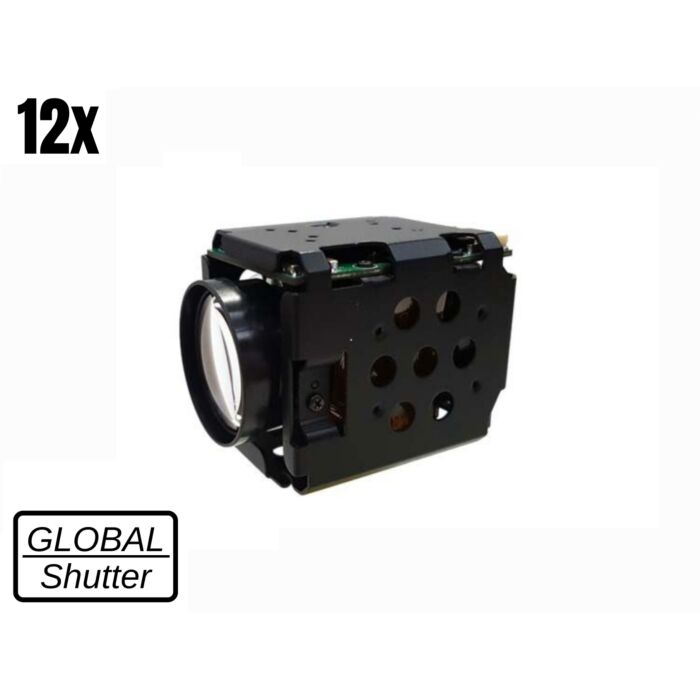

KT&C ATC-HZ5512W-LP HD Auto Focus Optical Zoom Global Shutter Block Camera
*Product is discontinued, Replacement Option: KT&C ATC-HZ5518W-LPN
The ATC-HZ5512W-LP is part of KT&C's ATC-HZ55 Series Optical Auto Focus Zoom Camera Line-Up.
Elevate your imaging capabilities with the KT&C ATC-HZ5512W-LP HD Auto Focus Optical Zoom Global Shutter Block Camera. This advanced camera offers a range of powerful features for exceptional performance in various applications.
With its Global Shutter technology, this camera eliminates rolling shutter effects, capturing images with unmatched accuracy. The Digital Image Stabilization ensures steady footage even in dynamic environments. Motion Detection enhances security, while the Image Flip (E-Flip) feature provides flexible image orientation.
The 1/1.8" CMOS sensor, boasting 1.58MP and 1456x1088 resolution, guarantees remarkable image clarity. The camera offers versatile video outputs, including LVDS and CVBS, supporting 1080p@60(50fps). Its adaptive Day/Night mode transitions between 0.05Lux (F1.6) in the day and 0.03Lux (F1.6 with IR-cut filter on) in night mode.
Thanks to features like AGC, WDR, and AF Optical zoom lens with 10x optical and 12x digital zoom, this camera excels in diverse lighting conditions. Whether it's auto/manual interval shooting or precise presets, the camera provides customizable control over focus and exposure.
The camera's robust design includes Digital WDR, 3DNR, and defog capabilities, ensuring top-notch image quality. The RS232 TTL interface enables seamless communication with various protocols like VISCA, Pelco-D, Pelco-P, and Hitachi.
With applications spanning from security and surveillance to robotics and video conferencing, this camera delivers exceptional performance. Its compact dimensions (41.6x45x61.6mm) and lightweight build (approx. 124g) make it suitable for various setups. Operating within -10℃ to +50℃ temperature range, this camera adapts to challenging environments with ease.
Experience outstanding image quality, versatility, and reliability with the ATC-HZ5512W-LP. Choose innovation and precision for your imaging needs.
Features:
- Global Shutter
- Digital Image Stabilization
- Motion Detection
- Image Flip (E-Flip)
Applications:
- Traffic
- Surveillance
- Military Applications
- Law Enforcement
- Border Patrol
- Monitoring
- Video Conferencing
- Low Vision Applications
| Image Sensor | 1/1.8" CMOS | |
| Effective Pixels | 1.58MP 1456(H) x 1088(V) | |
| Video Output Mode | Common | LVDS / CVBS |
| AHD/TVI/LVDS | ||
| Max. Video Resolution | LVDS/ Parallel : 1080p@60(50fps) | |
| Synchronization System | Internal / External Option | |
| Min.Illumination | ||
| Min.Illumination | Day mode: 0.05Lux(F1.6) Night mode: 0.03Lux(F1.6/ IR-cut filter on) DSS OFF, AGC28dB |
|
| S/N Rate | More than 52dB(AGC off, DSS off) | |
| Lens | ||
| Lens | Type | AF Optical zoom lens(DC Iris), IR Corrective |
| Focal Length | f=7.0~84mm(12x) | |
| F-value | F1.5~1.9 | |
| Angle of View | Horizontal 54.0°(W)~4.9°(T), Vertical 31.0°(W)~4.0°(T) | |
| Zoom Ratio | Optical 10x / Digital 12x | |
| Focus Min.Working Distance | 0.01m(Wide)/1.0m(Tele)~∞ | |
| Focus Control | Auto/Manual/Interval/One Shot/Preset | |
| Exposure | ||
| AE mode | Auto/Shutter Priority/Iris Priority/Manual/Bright | |
| Brightness | 0~14 | |
| Manual Shutter | x32~x2(Low shutter), 1/30(25), 1/60(50)~1/30000 | |
| Manual Iris | F1.6~F19, Close | |
| Sense-up | Off~32fields | |
| ETC | Spot AE, Slow AE | |
| Functions | ||
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L | |
| White Balance | AUTO/ATW/Indoor/Outdoor/Push/Manual | |
| Image Freeze | Off/On | |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) | |
| Privacy Mask Zone | 16 Zones/14 mask color selectable, semi-transparency | |
| Digital Image Stabilization | Yes | |
| Motion Detection | 4 Zones | |
| D-WDR | Off/Low/Middle/High | |
| WDR | Off/Low/Middle/High | |
| BLC | Off/On, Area selectable | |
| HLC | Off/0~20, Color selectable | |
| AGC | Max.58dB | |
| Sharpness | Adjustable(0~15) | |
| 3D-DNR | On/Off(1~5) | |
| 2D-DNR | Auto/Manual | |
| Defog | Off/Low/Middle/High | |
| Preset Position | 256 position Presets(Zoom,Focus), 16Memory Presets, Custom Preset | |
| Language | English,Janpanese,Russian,Spanish,German,France,Portuguese,Chinese | |
| Communication | ||
| UART | Remote | RS232 TTL +5.0V(+3.3V compatible) |
| Protocol | VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection | |
| Baud rate | 2400/48009600/19200/38400/57600/115200bps | |
| UTC | - | |
| Power | ||
| Supply Voltage | 12VDC(7V to 15VDC) | |
| Power Consumption | Max.5.2W / Non-working zoom&focus 3.2W | |
| Pysical and Temperature | ||
| Dimension(mm) | 41.6X45X61.6mm | |
| Weight | Approx.124g | |
| Operating Temperature | -10℃~+50℃, Humidity(20~80%) | |
| Storage Temperature | -20℃~+60℃, Humidity(20~95%) |
|
