Aegis SDI-EV-AS for Sony FCB-EV Series of HD Block Cameras

*Product is discontinued

HD-SDI digital interface for the Sony FCB-EV series cameras (FCB-EV7500/7310/7300/7100/5500/5300), 1080p/1080i/720p high definition video, RS-232 serial communications.

SKU
Aegis SDI-EV-AS

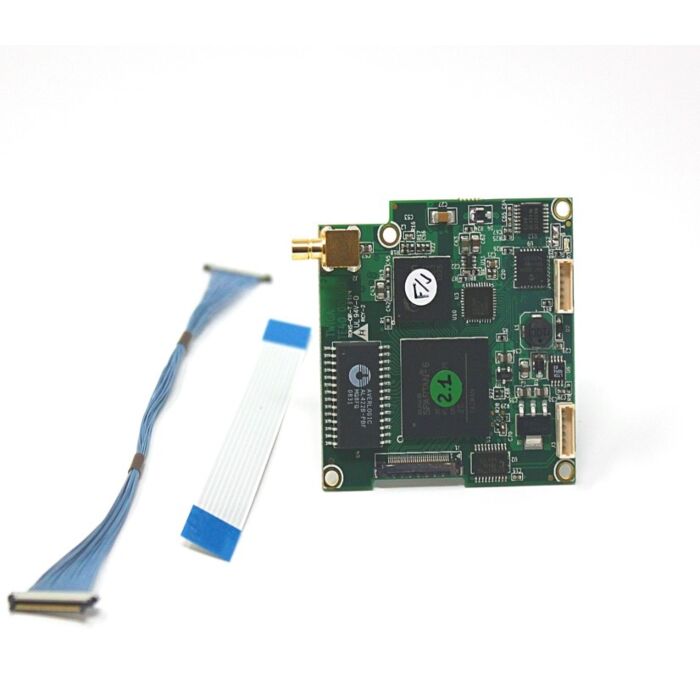

The SDI-EV-AS is a complete interface solution to provide real-time HD-SDI video from the Sony EV series of block cameras.This interface module provides a cost-effective solution to take full advantage of the high definition digital video provided by the FCB-EV block cameras. The interface board connects directly to the camera’s digital output to provide superior image quality. This interface module supports all the HD-SDI modes of the camera. (For 3G-SDI support, please contact us for latest product portfolio.)

A DIP switch located on the rear of the module allows the HD video mode to be conveniently selected without the need to send serial commands to the camera. The SDI-EV-AS has a built in test pattern which conforms to the SMPTE RP-219-2002 specification (see Figure 2). The pattern generation feature is controlled via connector J3. The product is supplied as a kit consisting of the interface module, mounting kit and cables, and for volume OEMs the board alone may also be ordered without the mounting kit and cables if required. The physical outline of the SDI-EV-AS sits within the rear profile of the FCB-EV series of cameras and the supplied mounting kit allows the module to be securely and neatly attached to the camera (see Figure 1).

Features:

  • HD-SDI interface solution for the Sony FCB-EV series of cameras
  • Includes interface module, cables and mounting kit
  • Uses the camera’s digital output to give optimum image quality
  • Supports the following HD modes – 1080p at 25, 29.97 and 30Hz, 1080i at 50, 59.94 and 60Hz, 720p at 25, 29.97, 30, 50, 59.94 and 60Hz
  • Compliant with SMPTE 274M and SMPTE 296M
  • Video mode selection switches and built-in test pattern
  • RS-232 communications port for camera control
  • RoHS compliant
Digital Video Output SMTPE 292M up to 1080p25/30
Analog Video Output NTSC when the HD configuration is 1080p30 or 1080p60
PAL when the HD configuration is 1080p25 or 1080p50
Camera Setting VISCA - Default : RS232 Level - TTL Level (Option)
Sync System Internal
Power 6 to 12 VDC, 5 W (including camera)
Environmental 0°C to 60°C
Storage -20°C to 60°C
Dimensions ( mm) 50(H) x 50(W) x 10(D)
