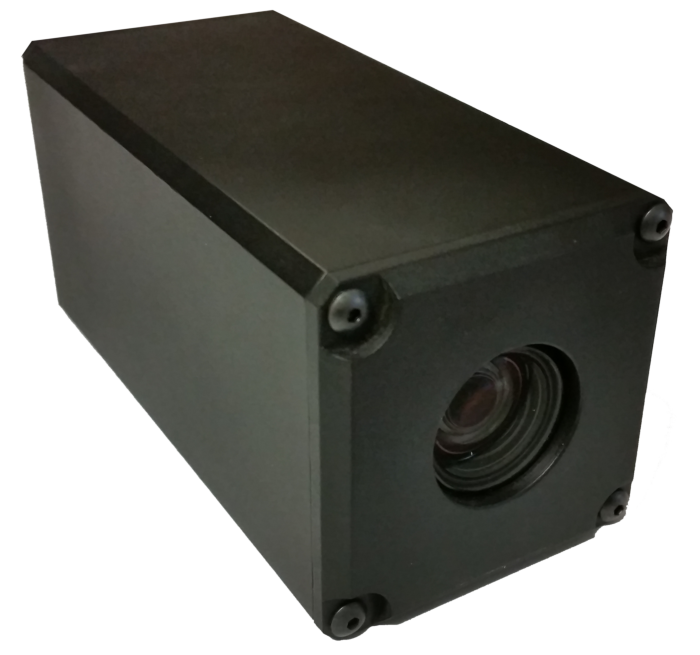

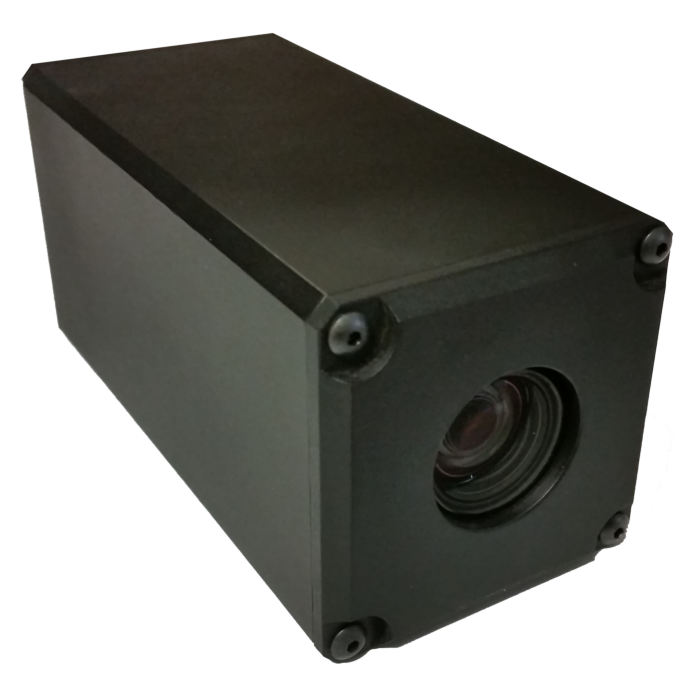

  • Aegis AEG-7100 Housed Block Camera Assemblies Front Image
  • Aegis AEG-7100 Housed Block Camera Assemblies Back Image

Aegis AEG-7100 (AEG7100) 10x Zoom HD Block Camera in Housing

Quick Overview

1/2.8-type Exmor CMOS sensor, 10X Optical Zoom, HDSDI, GigE or HDMI output available


  • 1/2.8-type Exmor CMOS sensor
  • 10X Optical Zoom (3.8mm - 38mm)
  • HDSDI or NTSC Output (Optional HDMI, HD Component and GigE also available)
  • 1.4 Lux
  • Day/Night Mode
  • WDR mode
  • E-Flip
  • Mirror Image
  • 1/4-20 Standard Mounting Bracket
  • Specifications
      HD SD
    Image Sensor 1/2-8 Type Exmor CMOS Sensor
    Number Of Total Pixels 2M Pixels
    Lens 10X Optical Zoom (3.8 -38m)
    Digital Zoom 12X (120X with optical zoom)
    Minimum Working Distance 10 mm (wide end) to 800 mm (tele end)
    S/N Ratio More than 50 dB
    Electronic Shutter 1/2 to 1/10,000's
    ICR on / off / auto
    Minimum Illumination 1.4 Lx
    Minimum Illumination ICR 0.095 Lx (typical) (F1.6 50 IRE) HS-Mode
    White Balance Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium Vapar Lamp Fix/Auto
    Gain Control Auto / Manual (-3 to 28 dB, 2 dB 16 steps)
    Exposure Control Auto, Manual, Shutter Priority, Iris Priority, Bright, EV Comp, Slow AE
    Focusing System Full Auto (Normal AF/Interval AF/Zoom Trigger AF), One-push Trigger, Manual, Infinity
    Signal System
    • 1080p/59.94
    • 1080p/29.97
    • 1080p/25
    • 1080i/59.94
    • 1080i/50
    • 720p/59.94
    • 720p/50
    • 720p/29.97
    • 720p/25

    One mode out of 11 modes can be selected

    Video Output HD-SDI (options: Y/Pb/Pr, HDMI, GigE VBS: 1.0 Vp-p (Sync Negative)
    Sync System Internal
    Camera Control Interface RS232 signal level
    Storage Temperature -40 °C to 85 °C
    Operating Temperature
    -5 °C to 60 °C
    Power Consumption 12.0 VDC / 3.75W
    Mass TBD
    Dimensions (W x H x D) HDSDI: 2.50" x 2.50" x 5.25"
    Accessories (Included) 1/4-20 standard mounting bracket
