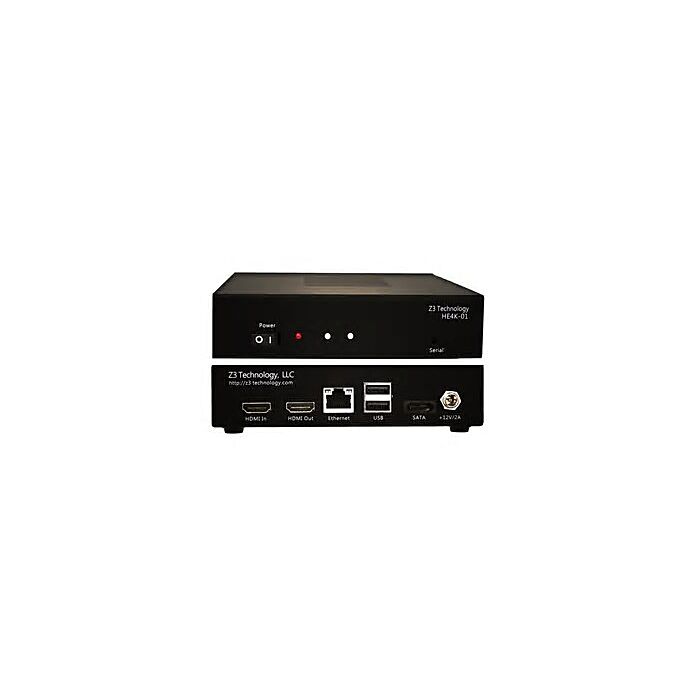

  • Z3 Technology Z3-HE4K-01 4K  Image 1

Z3 Technology Z3-HE4K-01 4K Ultra HD Video Encoder

Quick Overview

The HE4K-01 is an H.264 encoder and decoder solution supporting HD resolutions up to 2160p at 30 frames per second (4K Ultra HD). This system offers 4K encoding and decoding capabilities while still consuming less power than a PC Based system.
Overview

The Z3-HE4K-01 is the H.264 answer to your encoding and decoding quandaries. The system supports HD resolutions up to 2160p at 30 frames per second (4K Ultra HD). This system offers these incredible capabilities while still consuming less power than a PC-based system. Its compact form factor makes is easily transportable to a variety of applications. The Z3-HE4K-01 is a network-enabled, cost-effective system that is the ideal 4K scenarios.

The HE4K-01 also offers a feature of simultaneously streaming one source in 4K + 1080p30. Its compact form factor makes is easily transportable for a variety of applications. The HE4K-01 is a network-enabled, cost-effective system that is the ideal 4K solution for industrial video, video distribution, digital signage, security and remote monitoring.

Features:

  • H.264 Encode up to 4K Ultra HD
  • Simultaneous Stream One Source in 4K + HD
  • Supports Sony VISCA Camera Control
  • Record to Storage Options
  • Low Power Consumption
  • Compact Form Factor

  • Applications:

  • Industrial Video
  • Video Distribution
  • Digital Signage
  • Security
  • Remote Monitoring
  • Specifications
    Video Encoding
    Interfaces
    • 1x 4K HDMI Input
    • 1x GigE
    Supported Resolutions
    • H.264 encod in resolutions up to 2160p30 (4K UHD)
    • Simultaneous encode of one source in 4K + 720p30, 4K + 1080p29.97 and 4K + 1080p30
    Video Codecs H.264
    Output Formats MPEG-2 TS, RTP, RTMP, RTSP and TS File
    Video Frame Rates (HD)  25p, 29.97p, 30p, 50p, 59.94p and 60p @720p
    24p, 25p, 29.97p, 30p, 50p, 59.94p and 60p @ 1080p
    50i, 59.94i and 60i @ 1080i
    Video Frame Rates (UHD) 23.98p, 24p, 25p, 29.97p and 30p @ 2160p
    Features
    • Stream One Source in Multiple Resolutions (See Use Case on Next Pg)
    • Supports Sony VISCA camera control
    • Supports Unicast and Multicast
    • Seamless Bitrate and Frame Rate Changes
    Audio Encoding
    Interfaces Embedded HDMI Audio
    Audio Codecs AAC-HE ADTS, AAC-LC ADTS
    Optional Audio Codecs AAC-LC LATM, AAC-HE LATM, AAC-HE V2, G.711 and PCM
    Dimensions 145 x 130 x 34 mm (5.71 x 5.12 x 1.34 in)
    Weight 608 g (1.4 lb)
    Video Decoding
    Interfaces
    • 1x 4K HDMI Output
    • 1x GigE
    Supported Resolutions HD resolutions up to 2160p30 (4K UHD), 1080p30, 1080p/i at 60fps and 720p60
    Input Formats  MPEG-2 TS, RTP, RTSP and TS File
    Video Frame Rates (HD)  30p, 50p and 60p @ 1080p
    Video Frame Rates (HD)  25p, 29.97p, 30p, 50p, 59.94p and 60p @ 720p
    24p, 25p, 29.97p, 30p, 50p, 59.94p and 60p @ 1080p
    50i, 59.94i and 60i @1080i
    Video Frame Rates (UHD)  23.98p, 24p, 25p, 29.97p and 30p @ 2160p
    Audio Decoding
    Audio Codecs AAC-HE ADTS, AAC-LC ADTS
    Audio Bitrate 32 to 320 kbps
    Other
    Additional Interfaces 2x USB 2.0, SATA2 and RS-232
    Software Control HTTP-Based GUI: Configuration and Software Update
    RS-232: Configuration
    Power 12V External Power Supply
    15W Typical Consumption
    Temperature and Humidity Operating: 0 to 40 degrees C at 20-80% Relative Humidity
    Storage: -1and0 to 65 degrees C at 20-80% Relative Humidity
