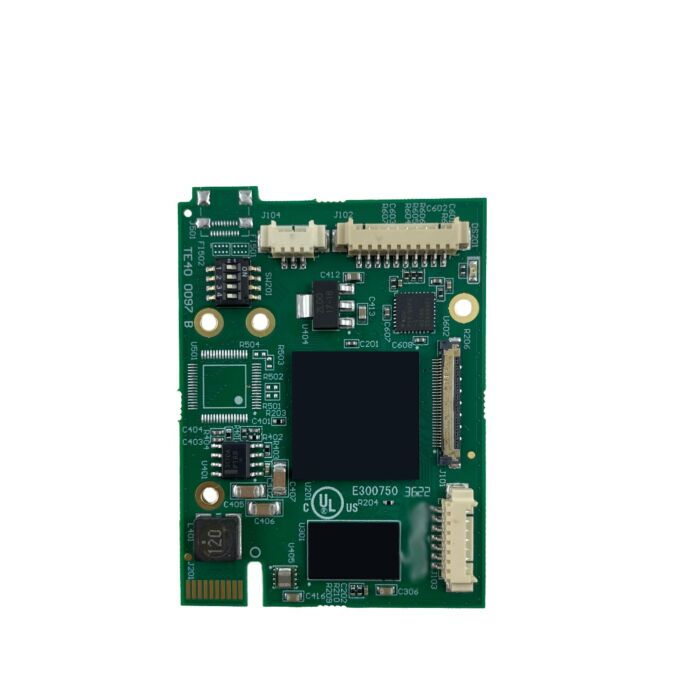

YPrPr-EV-MP1010 LVDS to HDMI + Analog HD/YPbPr & Analog SD/CVBS - Y/C Interface Board For Tamron MP1010M-VC

Quick Overview

Designed for Tamron MP1010M-VC.
Overview

Features:

  • Accessory set included with YPbPr-EV-MP1010
  • KEL 30 way micro coaxial camera cable
  • 10 way cable (analog SD & HD output + COM TTL + power)
  • 3 way cable (RS232)
  • 7 way cable (GPIO’s)
  • Screws - Spacers
  • Specifications
    LVDS Camera Input
    • LVDS (Y, Cb, Cr, Sync, Clk) 5 channels 8 bits ( “Channel link format”)
    • LVDS clock: 74,25MHz, 148,5 MHz
    • HD video formats: 720p50/60, 1080p25/30
    • KEL 30 way connector
    HDMI Output
    • Same HD video formats as LVDS input (up to 1080p50/60)
    • RGB 8 bit encoding
    • HDMI connector
    SD Analog Outputs
    • CVBS and YC: 1V pp, 75ohm
    • NTSC (with 1080p30 configuration)
    • PAL 9 (with 1080p25 configuration)
    • "Letter box" or "Crop" conversion from HD 16/9 to SD 4/3 aspect ratio
    • Delay from LVDS inputs to analog outputs : about 40ms for PAL and moving from 33ms to 67ms for NTSC
    • MOLEX 0 way connector
    HD Analog Outputs
    • YPbPr :1V pp, 75ohm
    • From 720p25 to 1080p30 video formats
    • MOLEX 10 way connector
    Serial Control
    • VISCA (SONY) protocol
    • Baud rate: 9600, 19200, 38400, 115200
    • Logical Level +3V3 on MOLEX 3 way connector
    • RS232 level +3 V3 on MOLEX 10 way connector
    GPIO Control
    • Zoom, focus and freeze controls
    • Connection to ground to activate control
    • Logical level +3 V3
    • MOLEX 7 way connector
    Power
    • +8 to 12V
    • MOLEX 10 way connector
    Mechanical              Board Dimensions: 55mm x 41.5mm
