Ximea MU9PM-BH | Micro 5 Megapixel | CMOS | USB2.0 | B/W Camera Image #1

Ximea MU9PM-BH Micro 5 Megapixel CMOS, USB2.0 B/W Camera

Ximea MU9PM-MH | Micro USB Camera Image #1

Ximea MU9PM-MH Micro USB Camera

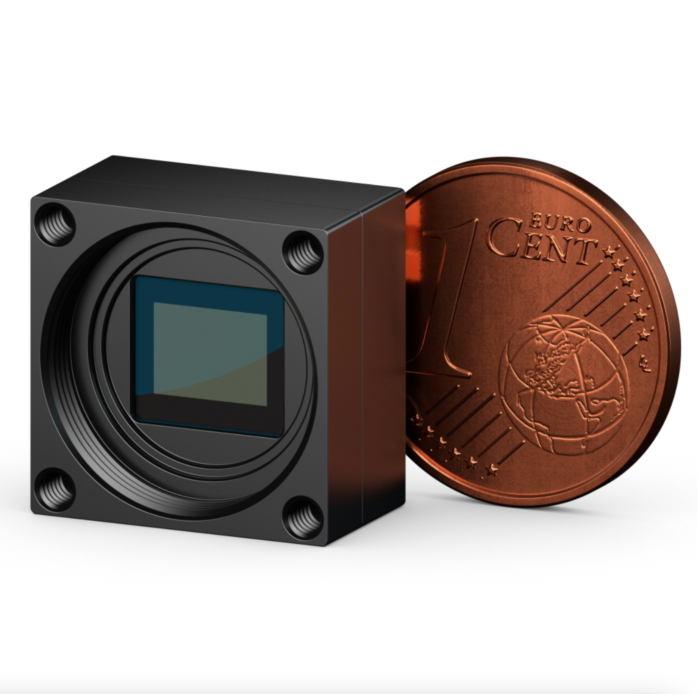

Ximea MU9PC-MH Micro Color USB Camera

2592 pixels x 1944 (5MP), 1/2.5" CMOS, 5.8 fps, USB2.0 Board Level Camera.

Available in Color or Monochrome (Black and White)

SKU
MU9PC-MH-Ximea

These cameras are manufactured to the highest quality to micro dimensions; 15 x 15 x 8 mm. Don’t allow their size to reduce your expectations. These camera may be as small as your thumb nail but their surpass all expectations with their performance.

Features:

  • Incredibly small: World smallest USB camera with GenICam/GenTL support
  • Low thermal dissipation
  • Single PCB, board level version available

  • Applications:

  • 3D Scanning
  • Robotic Arms
  • Material and Life Science Microscopy
  • Ophthalmology and Retinal Imaging
  • Medical Imaging
  • Flat Panel Inspection
  • Dental
  • Kiosks
  • Security
  • Biometrics
  • Resolution 5M 2592x1944 pixels
    Sensor type CMOS RGB Bayer Matrix
    Sensor model APTINA MT9P031
    Sensor size 1/2.5
    Sensor active area 5.7 x 4.28 mm
    Dynamic range ~ 70dB
    Signal to noise ratio ~ 38dB
    Image data interface USB 2.0
    Data I/O GPIO 2IN, 2OUT
    Power requirements 5V USB
    Lens mount M12
    Weight 5g
    Dimensions (WxHxD) 15x15x8.5 mm
    ECCN EAR99
    Board Level Available in board level model
