Ximea MQ003MG-CM

Quick Overview

Ultra compact USB 3.0 Industrial B/W Camera

Availability: In stock

More Views

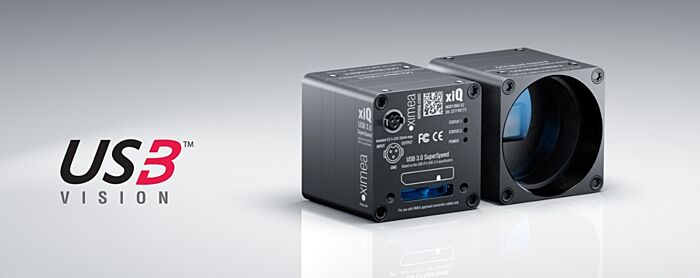

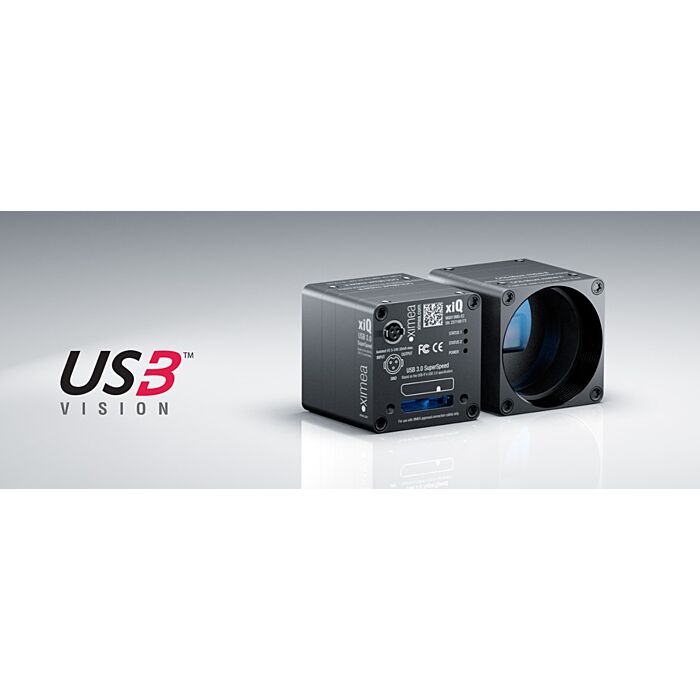

Ximea MQ003MG-CM.

  • Model: /m/q/mq003cg_1.jpg

Additional Information

Overview

Benefits:

  • Industry standard interface - Compliant with USB 3.0 SuperSpeed specification
  • AIA standard compatibility - USB3 Vision standard (1)
  • Ultra compact micro camera- only 26.4 x 26.4 x 21.2 mm, 27grams (2)
  • Economical - excellent value and price, low TCO and fast ROI
  • Cool - low power consumption, 1.0 to 1.8 W power consumption
  • Powerful - 5Gb/s interface 400Mpix/s data troughtput
  • Fast - high speed, high frame rate: 600fps at VGA and 90fps at 4Mpix resolutions
  • Connectivity - Programmable opto-isolated input and output, 3 status LEDs
  • Compatibility - support for Windows and Linux, various Image Processing Libraries
  • Software interfaces - GenICam / GenTL and highly optimized xiAPI SDK
  • Easy deployment - range of accessories and widest software support
Specifications
MQ003MG-CM Specifications
Sensor CMV300
Resolution 648 x 488
Pixel µm 7.4
ADC bits 12/10
Frames per sec 600
DR dB 66
Optical size 1/3"
Diagonal mm 6.0
Power W 1.8
Sensor Technology CMOS, Global shutter
Acquisition Modes Continuous, software trigger, hardware trigger
Partial Image Readout ROI, Skipping and Binning modes supported (check hardware manual for details)
Image data formats 8, 10 or 12 bit RAW pixel data
Data conversion programmable hardware LUT 12->8 (*)
Color image processing Host based de-Bayering, sharpening, Gamma, color matrix, true color CMS
Hot/blemish pixels correction On camera storage of up to 5000 pixel coordinates, host assisted correction
Auto adjustments Auto white balance, auto gain, auto exposure
Flat field corrections Host assisted pixel level shading and lens corrections
Image Data and Control Interface USB 3.0 standard Micro B with screw lock threads compliant to USB3 Vision standard
General Purpose I/O 1x opto-isolated input, 1x opto-isolated output, power LED, 2x LED software programmable
Signal conditioning Programmable debouncing time
Synchronization Hardware trigger input, software trigger, exposure strobe output, busy output
Housing and lens mount Standard C mount. Available options are CS mount, S(M12) mount and board level
Power requirements 1 to 1.8W, supplied via USB 3.0 interface
Dimensions 26.4 x 26.4 x 26.5 mm (C-mount version)
Weight 27 grams (C-mount version)
Environment Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 60°C storage
Conformity CE, FCC, RoHS, GenICam/GenTL, USB 3.0 SuperSpeed
Opertating systems Windows 7 SP1 (x86 and x64), Linux Ubuntu
Minimumm host hardware Intel i3 3.0GHz, 2GB RAM, NVIDIA or Radeon 128MB, Motherboard with PCIe x1 Gen 2 slot, compatible USB 3.0 host adapter
Software support xiAPI SDK, adapters and drivers for various image processing packages
Firmware updates Field firmware update
Board Level Available in board level model.
Product Videos N/A
Accessories N/A
