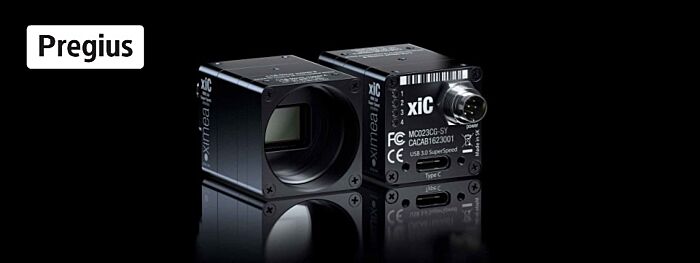

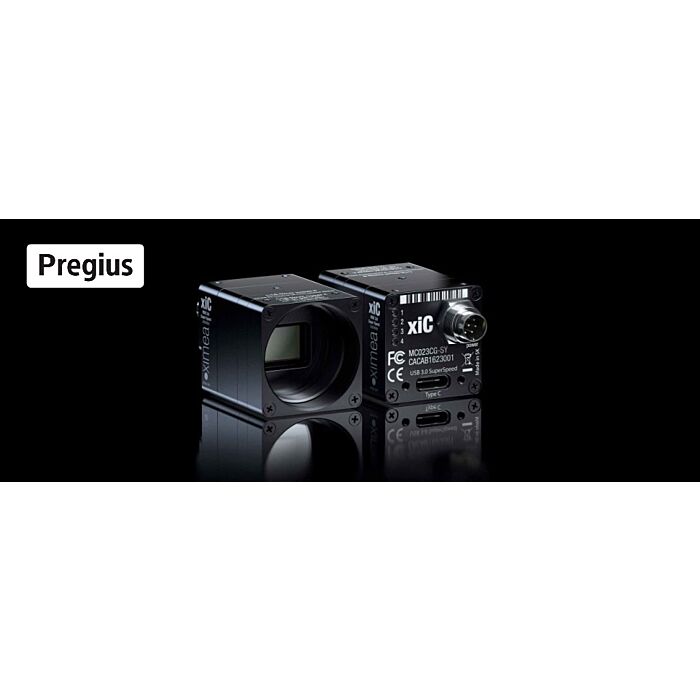

Ximea Miniature USB 3.1 Sony CMOS Cameras

The smallest camera featuring Sony Pregius™ sensors - Compact with only 26.4 x 26.4 x 33 mm and lightweight with 38 grams (1)

Model Numbers:

MC023MG-SY     MC023CG-SY

MC031MG-SY     MC031CG-SY

MC050MG-SY     MC050CG-SY

MC089MG-SY     MC089CG-SY

MC124MG-SY     MC124CG-SY

SKU
Ximea Miniature USB 3.1 Sony CMOS Cameras

Sony CMOS cameras with USB 3.1 Gen.



Features:

  • Smallest camera featuring Sony Pregius™ sensors - Compact with only 26.4 x 26.4 x 33 mm and lightweight with 38 grams (1)
  • Fast CMOS - High speed, high frame rate: from 2.3 Mpix at 165 Fps to 12 Mpix at 31 Fps
  • Cool Economy - Low power consumption with under 3 Watt and minimal heat dissipation
  • All-around Support - support for Windows 7 and 10, macOS, Linux, ARM and embedded platforms
  • Industry Standard Interface - Compatible with USB 3.1 Gen 1, former USB 3.0 SuperSpeed
  • AIA Standard - USB3 Vision standard compliant
  • Adaptable Potential - Available with two connectors: novel USB 3.1 Type-C and proven Micro-B
  • Software Interfaces - GenICam / GenTL and highly optimized API / SDK for Image Processing
  • Connectivity and Synchronization - Programmable optoisolated input and output, 4 status LEDs
  • Highly Customizable - Variety of sensor options including IMX249, IMX265, IMX264, IMX267, IMX304 available in board level stack for OEM use and with Flat ribbon flex cable connection
  • Interoperability Increase - Continuous embrace of new software and hardware partners
  • Cost Efficient - Excellent value and price with utilization of newest technologies including Sony Pregius™




Applications:

  • Ultra-fast 3D scanning
  • Medical Imaging
  • Precision Moldings, Electronics, Photovoltaics
  • Miniature and accurate robotic arms
  • Industrial and Factory Automation, Machine Vision
  • Robotic Welding
  • High definition Motion capture, Cinematography and Entertainment
  • Material and Life science microscopy
  • Marking and Labeling Verification, AOI, Food and Print inspection
  • 360 Panorama
  • Face recognition, Eye Tracking, Body scanner, People counting
  • Packaging and Kitting, Defect detection, Code recognition
  • Broadcasting
  • OCR / OCV
  • Metrology
  • Sports Automation & Motion Tracking
  • Gauging, Manufacturing
  • Alignment and Assembly
  • Ophthalmology and Retinal imaging
  • ISR - Intelligence, surveillance and reconnaissance, Security
  • Rapid process capturing, e.g. golf club swings, baseball, tennis, hockey
  • VR and AR (virtual or augmented reality)
  • Intelligent Transportations Systems (ITS), Autonomous vehicles
  • Open road tolling and Traffic monitoring
  • ANPR
  • Biometrics
  • Automotive crash testing
  • ideal for UAV / UAS (drones) and LoLa (Low Latency audio visual streaming system)
B/W model Color Model Sensor Resolution Pixel µm ADC bits
Frames Per Second
dr DB  Optical Size Power Watt
 MC023MG-SY  MC023CG-SY  Sony IMX174  1936 x 1216  5.86  12/10  165 fps  71.7 1/1.2" 2.4
 MC031MG-SY  MC031CG-SY  Sony IMX252  2064 x 1544  3.45  12/10/08  122 fps  70.9 1/1.8" 2.75
 MC050MG-SY  MC050CG-SY  Sony IMX250  2464 x 2056  3.45  12/10/08  76 fps  70.8 2/3" 2.85
 MC089MG-SY  MC089CG-SY  Sony IMX255  4112 x 2176  3.45  12/10/08  43 fps  70.5 16.1 3.25
 MC124MG-SY  MC124CG-SY  Sony IMX253  4112 x 3008  3.45  12/10/08  31 fps  70.4 17.6 3.25
