  • Sony XC-505 Color Camera

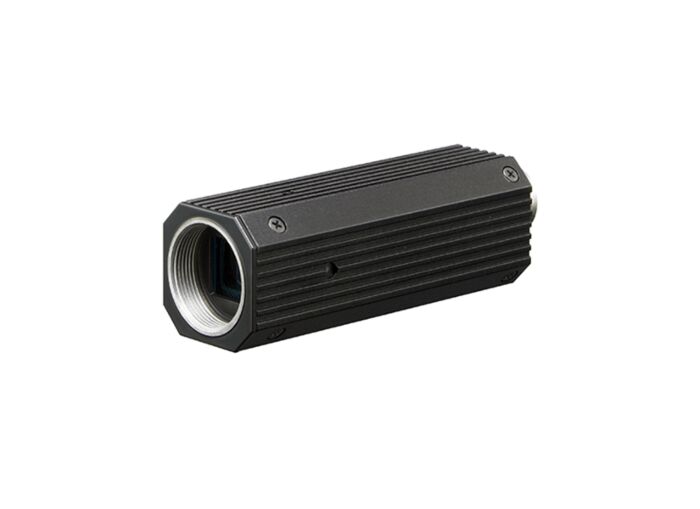

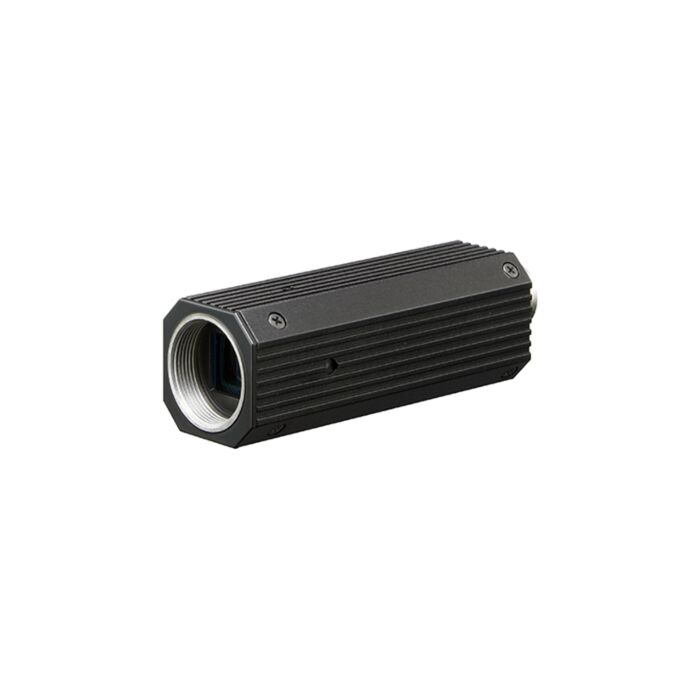

Sony XC-505 NTSC Color Analog Camera

Quick Overview

768 x 494, 1/3-type Super HAD II CCD, Ultra Compact NTSC Color Camera. Also available in PAL Model, XC-505P
Overview

XC-505 camera incorporates a high sensitivity and high performance 1/3-type Super HAD II CCD. Best of all, it combines first-class picture quality with superb sensitivity for those less-than-ideal lighting conditions at a competitive price!

The XC-505 color camera is easily integrated in space restricted environments thanks to their one-piece, ultra-compact, robust body measuring only 22 (H) x 22 (W) x 64 (D)mm with no need for a bulky CCU (camera control unit). It uses a NF lens system which can easily be converted into a flexible C mount lens allowing for additional optical options. What’s more, the XC-505 camera has very broad market appeal – from remote monitoring, security, content creation to machine vision and sports shooting.

  • High-sensitivity Super HAD II CCD
  • One-piece body and amazingly compact design: 22 (H) x 22 (W) x 64 (D)mm, 51g (7/8 x 7/8 x 2 5/8 inches, 2 oz)
  • Selectable video outputs and external synch inputs
    - Video outputs: VBS and Y/C
    - External synch: HD/VD, VS, VBS (no genlock)
  • Easy camera set-up with dip switches or RS-232C serial communication
  • Various image acquisition features:
    - Selectable Auto Exposure and White Balance
    - Defective pixels correction
    - 2D/3D Noise reduction (NR)
    - Edge Enhancement/Detail Enhancement
    - E-flip
    - Built-in color bar
  • Specifications
    Image Device 1/3 type IT CCD
    Color Filter Complementary Color Mosaic
    Cell Size 5.0 (H) x 7.4 (V) ㎛
    Effective Picture Elements 768 (H) x 494 (V)
    Video Signal System NTSC
    Sync System Internal/External (switched automatically)
    External Sync System HD/VD, VS
    Lens Mount NF Mount
    Horizontal Resolution 470 TV Lines
    Minimum Illumination 1.5 lx (F1.4, AGC ON)
    Sensitivity 2000 lx (F11, AGC OFF (0dB))
    Shutter Speed 4 speeds selectable OFF, Flickerless, 1/1000 s, CCD iris
    Gain 2 modes selectable AGC, Fixed (0 dB)
    S/N Ratio 48 dB AGC OFF (0 dB)
    White Balance 5 modes selectable
    ATW, One Push WB, 3200K, 5600K, Manual
    Video Output VBS, Y/C (selected with the switch)
    VBS: 1Vp-p, 75Ω, sync negative
    Y: 1 Vp-p, 75Ω,
    C: C level depends on the composite video out signal
    Camera Control Interface RS-232C serial communication
    Output Connector DC IN, SYNC, VIDEO: multi 12-pin
    Power Requirement 10.5 – 15 V DC
    Power Consumption 1.5 W
    Operation temperature 32 to 104º F (0 to +40º C)
    Storage temperature -22 to 140º F (-30 to 60º C)
    Shock Resistance 70G
    Vibration Resistance 10G
    MTBF 81,880 hrs (approx. 9.3 yrs)
    Dimensions (W x H x D) 7/8 x 7/8 x 2 5/8 inches (22 x 22 x 64 mm)
    Mass 1.8 oz (51 g)
    Supplied Accessories Lens mount cap (1), Tripod adaptor (1 set), Operating instructions (1)
