Watec WAT-910BD (WAT910BD) 1/2” Ultra High Sensitivity Dark-field Camera
1/2” Ultra High Sensitivity Dark-field Camera, Low light sensitivity 0.0000025 lx, High quality image without noise under poor light condition.
*Product is discontinued

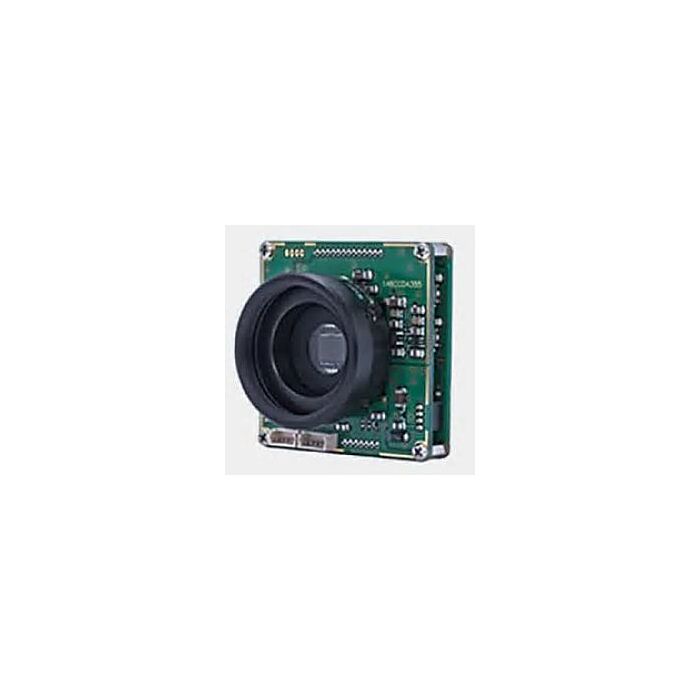

Super High Sensitivity Adjacent to Near Infra-Red Ray Exposed Single PC Board Watec is proud to introduce the new BD series to our WAT-910HX super low light black and white camera line. At 42x42 and available in multiple miniature compact lens configurations, the BD series is ideal for systems integration where ultra low light performance is demanded. The standard 0.0001LUX (F1.2) and 0.000005LUX (integrated frame technology) this camera is designed to adjust via frame loss compensation based on the lighting conditions of your environment. This unit is fully adjustable to meet the requirements of low light, no light or lighted application and can be pre-calibrated by the user to ensure the highest quality imaging experience.
The 910BD is the only one in the HX series to offer DVO (Digital Video Output) via cable port on the rear panel on the camera. The DVO connector for the WAT-910BD is P/N: BM14B-SRSS(JST) which is a board-to-wire connection crimp style and designed for communication between PCBs. The cable length can be not be longer than 50cm as per supplied standard for this accessory. Actual digital output format of the WAT-910BD is BT.656. Standard BT.656 operates on a pixel clock of 27MHZ, the 910BD on the other hand operates on NTSC: 28.6363MHZ and PAL : 28.375MHZ. When considering design and compatibility of the decoder circuit in your application it must receive the output signal from the WAT-910BD to accept and pair accordingly.
Features:
| Sensor type | 1/2 inch interline transfer CCD image sensor |
| Number of total pixels | 811(H) × 508(V) |
| Number of effective pixels | 768(H) × 494(V) |
| Unit cell size | 8.4μm(H) × 9.8μm(V) |
| Synchronizing system | Internal |
| Scanning system | 2:1 interlace |
| Video output | Analog: Composite: 1.0 V(p-p) 75Ω (Unbalanced) Digital: BT.656 (Compatible): 8bit parallel, (H/V Sync dual output) - Pixel clock 28.6363MHz - Pixel clock 28.375MHz |
| Resolution | More than 570TVL (Center) |
| Minimum illumination | 0.0000025 lx F1.4 (AGC=HI, γ=0.35, 3DNR=ON, Shutter=x256) |
| S/N | More than 52dB (AGC=6dB, γ=1.0, 3DNR=ON, Shutter=x256) |
| Function settings | OSD (On Screen Display) / 3 wired SPI interface, Remote controller |
| AE mode | Fixed: x2, x4, x8, x16, x32, x64, x128, x256 (field) 1/60, 1/100 sec. - 1/50, 1/120 sec. 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec. EI: 1/60 - 1/100000 sec. - 1/50 - 1/100000 sec. LO: 6 - 30dB / MID: 6 - 34.5dB / HI: 6 - 41dB (SENSE-UPMAX) - 1/100000 sec. |
| AGC | ON: LO: 6 - 30dB / MID: 6 - 34.5dB / HI: 6 - 41dB OFF: 6 - 41dB (MGC) |
| Gamma Characteristics | γ≒0.05 - 0.45 - 1.0 (0.05 step), USER (S-curve) |
| Noise Reduction | 3DNR ON / OFF (Level adjustable) |
| Wide dynamic range | D-WDR (Digital Wide Dynamic Range) OFF / USER1 / USER2 |
| Motion detection | 4 areas |
| Lens iris | Video / DC |
| Back light compensation | OFF / BLC / HSBLC |
| White blemish correction | Max 64 dots |
| Mirror image | OFF / H-FLIP / V-FLIP / HV-FLIP |
| Freeze | ON / OFF |
| Digital zoom | ON (x1.0 - x32.0, Magnification selectable) / OFF |
| Neg. image | ON / OFF |
| Power Supply | DC+12V±10% |
| Power Consumption | 1.38W (115mA) |
| Operating Temperature | -10 - +50℃ |
| Storage Temperature | -30 - +70℃ |
| Operating / Storage Humidity | 95% RH or less (Without condensation) |
| Lens Mount | CS mount |
| Weight | Approx. 40g |
| Accessories | WPDC12 (DC plug), AIC-G (Iris plug), Hex. wrench, Cable (6 pcs) |
