  • Watec WAT-W-01CDB3 Image 1

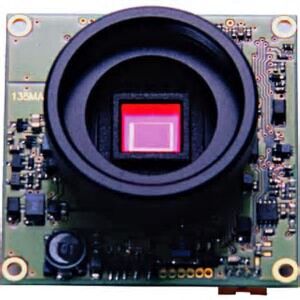

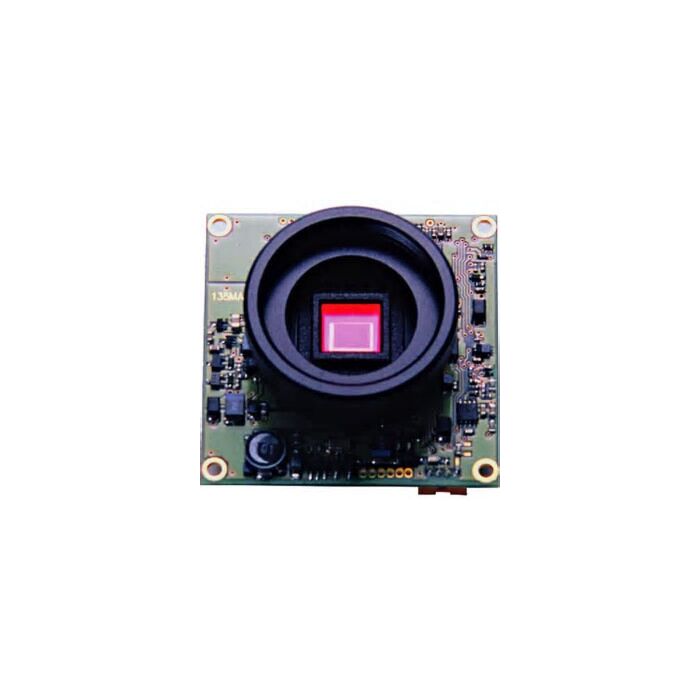

Watec WAT-W-01CDB3 1/3 inch CCD Color Board Camera

Quick Overview

1/3 inch interline transfer CCD image sensor, 450 TV lines, 380,000 pixels
Overview

Watec sets high standards for all their CCTV products, and the W-01CDB3 board camera is no exception. With its ultra compact form and in the absence of an enclosure, the W-01CDB3 is the ideal camera for professional covert and custom video installations.

Despite being small, Watec was able to incorporate into it a wealth of electronic picture controls including an advanced shutter speed, white balance and AGC. These will assist the camera in maintaining optimum image quality in a variety of lighting and scene situations. You'll also appreciate the W-01CDB3 CS lens mount, so you can easily pair it with industry standard CCTV lenses.

Features:

  • Effective Pixels: 380k
  • Scanning system: 2:1 Interlace
  • Synchronizing system: Internal
  • Gain Control: AGC(3~24dB)
  • Min. Illumination: 1.5 Lux @ F1.2
  • S/N Ratio: More than 50dB
  • Shutter Speeds: EI(1/60~1/100,000), ES(OFF:1/60, FL:1/100, 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/20000, 1/50000, 1/100000)
  • B.L.C.: Full Screen
  • Mirror Image: ON/OFF Selectable
  • White balance: ATW, 3200K, 5100K, 8200K
  • Weight: 35g
  • CCD: 1/3"
  • Resolution: 450TVL
  • Power: DC +12V ± 10%
  • Specifications
    Sensor type 1/3 inch interline transfer CCD image sensor
    Number of total pixels 768(H) x 494(V)
    Unit cell size 6.4μm(H) × 7.5μm(V)
    Scanning system 2:1 interlace
    Sync system Internal
    Video output 1.0 V(p-p), 75Ω, unbalanced
    Video level 100IRE/75IRE
    Resolution 450TVL
    Shutter speed ES: OFF (NTSC: 1/60, PAL: 1/50), FL (NTSC: 1/100, PAL: 1/120), 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/20000, 1/50000 (sec.)
    Minimum illumination 1.5lx F1.2
    Gamma characteristics γ≒0.45
    AGC 3-24dB
    White balance ATW / 3200K / 4200K / 6300K
    BLC Full-screen
    Mirror image ON / OFF
    S/N 50dB (AGC OFF, γ=1.0)
    Lens mount CS-mount
    Auto iris DC
    Power supply DC+10.2V - +13.8V (Recommended: DC+12V±15%)
    Electric power 1.08W (=90mA)
    Operating temperature 0°C - +40°C (w/o condensation)
    Storage temperature -30°C - +70°C (w/o condensation)
    Dimensions W42XH42(mm)
    Size of mounting screw holes 4- φ2.2(mm)
    Weight 35g
