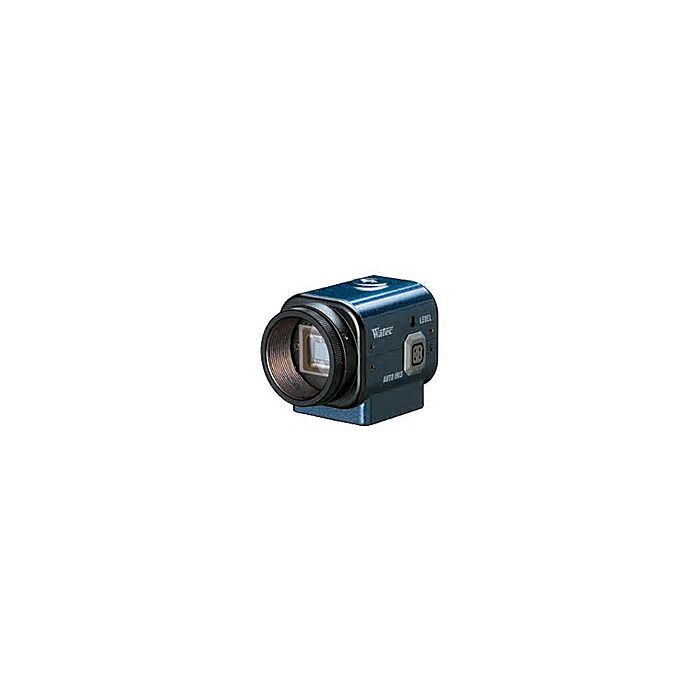

Watec WAT-910NC (WAT-910NC) EIA IP Monochrome Camera
The Watec WAT-910NC EIA IP Monochrome Camera is a high-quality, 12 V/POE miniature surveillance camera.
*Product is discontinued
SKU
Watec WAT-910NC
The WAT-910NC features sharp black and white imaging, and includes the OSD menu system. This listing is for the IP version of this model, and also includes a remote.
Features:
| Sensor type | 1/2 inch interline transfer CCD image sensor |
| Number of total pixels | 811(H) × 508(V) |
| Number of effective pixels | 768(H) × 494(V) |
| Unit cell size | 8.4μm(H) × 9.8μm(V) |
| Synchronizing system | Internal |
| Scanning system | 2:1 interlace |
| Video output | Composite Video, 1.0 V(p-p), 75Ω, unbalanced |
| Resolution | More than 570TVL (Center) |
| Minimum illumination | 0.000005lx. F1.4 (Shutter: x256, AGC: HIGH, γ：0.35) |
| S/N | More than 52dB (AGC=6dB, γ=1.0) |
| Function settings | OSD (On Screen Display) operated by operation dial |
| Electronic iris | 1/60-1/100000 sec. - 1/50-1/100000 sec. x256(field) *selectable -1/100000 sec. |
| Electronic shutter | x2, x4, x8, x16, x32, x64, x128, x256 (field) 1/60, 1/100 sec. - 1/50, 1/120 sec. 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec. |
| AGC | ON: LOW: 6-30dB / MID: 6-34.5dB / HIGH: 6-41dB OFF: 6-41dB (1dB step) *selectable |
| Gamma Characteristics | γ≒0.05-1.00 (0.05 step), USER *selectable |
| Noise Reduction | 3DNR ON *selectable / OFF |
| Wide dynamic range | WDR(Digital Wide Dynamic Range) USER1 / USER2 / OFF |
| Motion detection | Max. 4 areas selectable (Out-put terminal available) |
| Lens iris | Video / DC (Auto-select) |
| Back light compensation | OFF / BLC / HSBLC |
| White blemish correction | Up to 64 dots correctable by OSD operation |
| Power Supply | DC+12V±10% |
| Power Consumption | 1.38W (115mA) |
| Operating Temperature | -10 - +50℃ |
| Storage Temperature | -30 - +70℃ |
| Operating / Storage Humidity | Less than 95% RH (Without condensation) |
| Lens Mount | CS (Back focus adjustable) |
| Weight | Approx. 83g |
