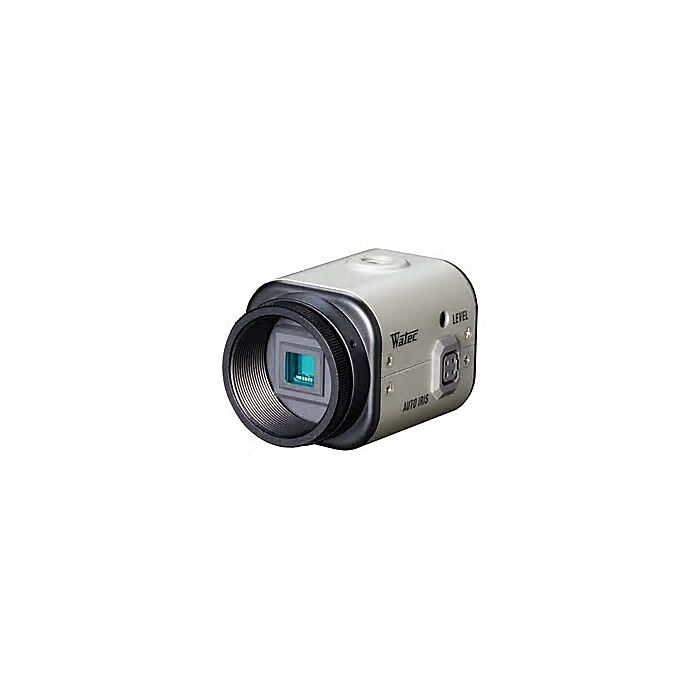

  • Watec WAT-250D2 Image 1
  • Watec WAT-250D2 Image 2

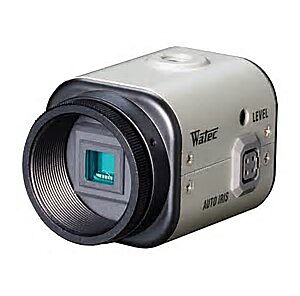

Watec WAT-250D2 NTSC 1/3" Ultra Compact Low Light Color Camera

Quick Overview

540TVL, 0.02 lx. F1.2, 811(H) × 508(V)
Overview

The Watec WAT-250D2 NTSC 1/3" Ultra Compact Low Light Color Camera is a 1/3" formatted color camera that provides high resolution images in a miniature package.

Features:

  • Compact & lightweight
  • High sensitivit
  • High sensitivity
  • High resolution
  • Compact & lightweight
  • Bremish correction
  • Flickerless EI
  • Color rollingless ATW
  • Screw mount
  • White balance control
  • Electronic iris
  • Flickerless mode
  • AGC
  • Back light compensation
  • Gamma correction
  • Video/DC iris auto-select
  • Iris level control

  • Applications:

  • Medical Imaging
  • Hobby-related
  • Rapid Deployment
  • Security Applications
  • Specifications
    Sensor type 1/3inch Interline transfer CCD image sensor
    Number of total pixels 811(H) × 508(V)
    Number of effective pixels 768(H) × 494(V)
    Unit cell size 6.35μm(H)×7.4μm(V)
    Imaging system Ye, Cy, Mg, and G complementary color mosaic filters on chip
    Synchronizing system Internal
    Scanning system 2:1 interlace
    Video output Composite Video, 1.0 V(p-p), 75Ω, unbalanced
    Resolution More than 540TVL (Center)
    Minimum illumination 0.02 lx. F1.2
    S/N ratio More than 50dB (MGC=0dB, γ=1.0)
    AE mode  Fixed: 1/60, 1/100 sec. -  1/50, 1/120 sec.
    EI: 1/60 - 1/100000 sec.(flicker suppress) - 1/50 - 1/100000 sec.(flicker suppress)
    White balance ATW(color rolling less), PWB
    AGC ON: 0~38dB
    OFF: 0dB
    Gamma characteristics γ≒0.45(ON) / γ=1.0(OFF)
    Video level 100IRE(ON) / 75IRE(OFF)
    Lens iris Video / DC (EIAJ arrangement, Auto-select)
    Back light compensation ON / OFF
    White blemish correction Up to 32 pixels
    Power supply  DC+12V±10%
    Power consumption 1.74W (145mA)
    Operating temperature -10℃ ~ +50℃ (Without condensation)
    Storage temperature -30℃ ~ +70℃ (Without condensation)
    Operating / Storage humidity Less than 95% RH
    Lens mount CS mount (Back focus adjustable)
    Weight Approx. 90g
