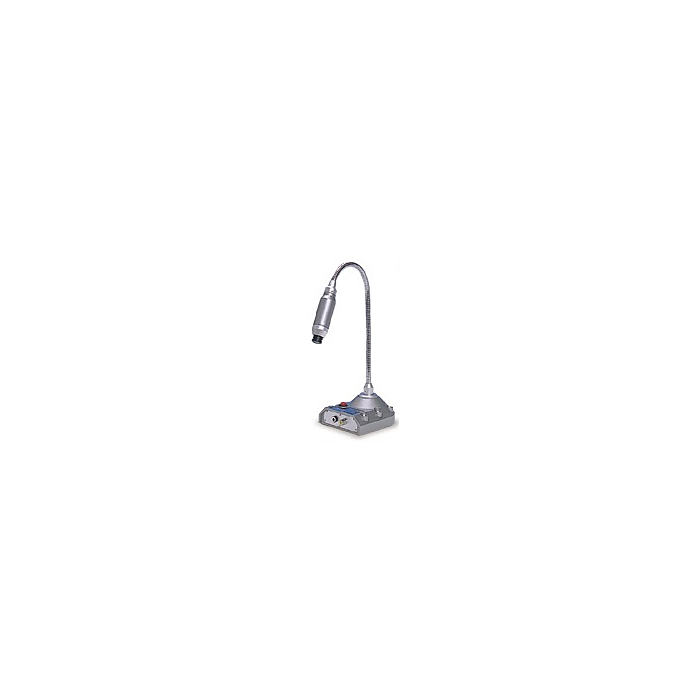

  • Watec WAT-240F25 G3.8 NTSC, DSP Color Camera Image

Watec WAT-240F25 G3.8 NTSC, DSP Color Camera

Quick Overview

DSP Color Analog Camera
Overview

25cm silver base/flex arm w/stand, Horizontal plane control Extreme close up views!

Specifications

WAT-240F25 G3.8-NTSC
Signal System
NTSC
Pick-up element
1/4 inch interline transfer CCD image sensor
Number of total pixels
542(H)×492(V)(NTSC)
Effective pixels
512(H)×492(V)(NTSC)
Unit cell size 7.2 μm(H)×5.6 μm(V)(NTSC)
Scanning system 2:1 interlace
Synchronizing system Internal
Video output Composite video, 1Vp-p, 75ohm Unbalanced
Resolution(Horizontal) 350TV lines (Center)
Minimum illumination 6.5 lx.(F5.0)
Gamma Correction γ≒0.45
AGC 3~24dB
S/N Ratio 50dB(AGC OFF, γ=1.0)
White balance Automatic
Back light compensation OFF
Electronic iris 1/60 ~ 1/1,000 sec.
Standard lens (Glass, f6.5mm, F5.0) or (Pin hole, f3.7mm, F4.5)
Power supply DC +5.4~+7.5V
Current max. 200mA
Operating temperature -10℃ ~ +40℃
Storage temperature -30℃ ~ +70℃
Weight Approx. 540g (WAT-240F25)
Accessories AC adaptor, Video cable(5m)
No Video available
Watec WAT-240F25 G3.8
