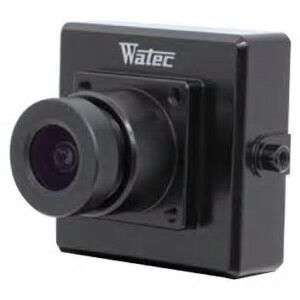

  • Watec WAT-230V2 Image 1

Watec WAT-230V2 G3.7 1/4" Miniature Color Camera 650TVL

Quick Overview

1020 (H) × 508 (V) pixels, minimum illumination of 0.1 Lux @ F1.8, 450 TV lines
Overview

The Watec WAT-230V2 color enclosed board camera provides high resolution images at 650TVL and access to apply the camera in nearly any application at a low cost. Designed to provide the user with access to self modify all features the 230V2 is convenient, affordable and easy to use. Perfect for those application demanding max performance, on the fly MODS and high resolution imaging quality.

Features:

  • High resolution of 650TVL with high sensitivity 0.1 lx F1.8
  • 2DNR, privacy masking, BLC (Back light Compensation) / HLC (Highlight Compensation)
  • Mirror image, white blemish correction, contour correction
  • Wide range power supply (DC+4.6 - +14V)
  • Advanced setting available by OSD (On screen display) through an optional controller
  • Various optional M12 lenses available
  • Specifications
    Sensor type 1/4 inch interline transfer CCD image sensor
    Number of total pixels 1020(H) × 508(V)
    Number of effective pixels 976(H) × 494(V)
    Unit cell size 3.75μm(H) × 5.56μm(V)
    Imaging system Ye, Cy, Mg, and G complementary color mosaic filters on chip
    Synchronizing system Internal
    Scanning system 2:1 interlace
    Video output Composite Video, 1.0 V(p-p), 75Ω, unbalanced
    Resolution More than 650TVL (Center)
    Minimum illumination 0.1 lx F1.8
    S/N ratio More than 50dB
    Function settings OSD(On Screen Display) operated by optional remote controller
    AE mode  Fixed: 1/60, 1/100 sec. -  1/50, 1/120 sec.
    1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.
    EI: 1/60 - 1/100000 sec. - 1/50 - 1/100000 sec.
    White balance ATW, PUSH, USER1, USER2, ANTI CR, MANUAL, PUSH LOCK
    AGC ON: 0~45dB
    OFF: 0dB
    MGC 8 steps (selectable)
    Gamma characteristics γ≒0.45
    Noise reduction 2DNR ON/OFF
    Back light compensation OFF / BLC / HLC
    White blemish correction Max 64 dots
    Privacy mask 8 masks
    Mirror image ON (H-FLIP) / OFF
    Video level 0 - 255 (BRIGHTNESS)
    Setup level 7.5 IRE
    Output switching AUTO / COLOR / BW
    Sharpness 0 - 255 (SHARPNESS)
    Power supply  DC+4.6V - +14V
    Power consumption 0.775W/155mA (DC+5V), 0.75W/125mA (DC+6V), 0.78W/65mA (DC+12V)
    Operating temperature -10℃ ~ +50℃ (Without condensation)
    Storage temperature -30℃ ~ +70℃ (Without condensation)
    Operating / Storage humidity 95% RH or less (Without condensation)
    Lens mount M12 P=0.5
    Standard lens M3718BC-12 (f3.7 F1.8)
    Cable length 300mm
    Weight Approx. 35g
    Accessory 4P cable
