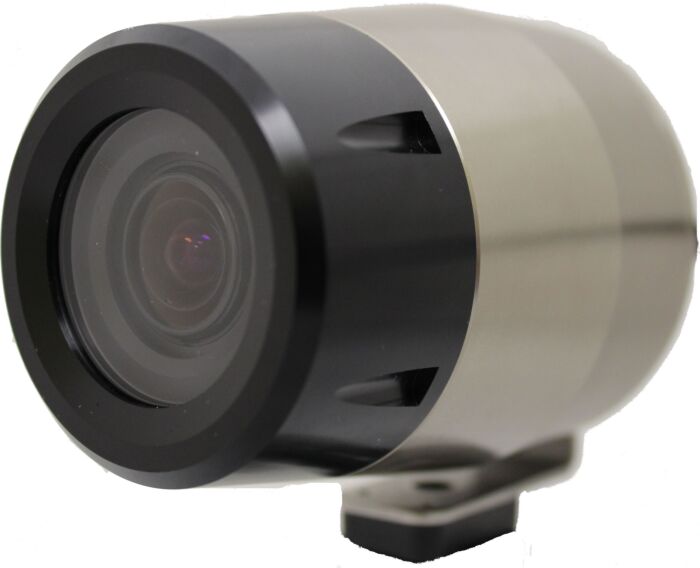

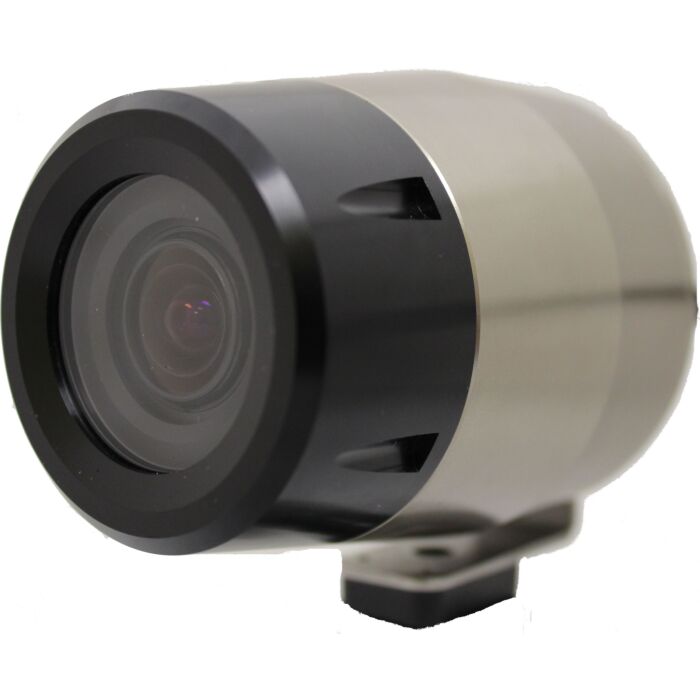

Watec WAT-2200DW NTSC (WAT2200DWNTSC) HD-SDI Compact 1/2.7" CMOS Waterproof Color Camera
The Watec WAT-2200DW is a Waterproof HD-SDI 1080p color camera with a 1/2.7" CMOS sensor, progressive scan at 0.9 lux color and 12VDC power.
*Product is discontinued
SKU
2200DW NTSC
The Watec WAT-2200DW NTSC High Definition color camera allows users to operate in extreme weather conditions and integrates into any application where analog cabling is in place with HDSDI connectivity. Leave your BNC run in place and simply connect your new Watec 2200DW NTSC in-line with your existing system. Outputs HD video from a BNC connector in a Serial Data Interface (SDI) interface.
Features:
| Sensor Type | 1/2.8" CMOS image sensor |
| Number of total pixels | 1952(H) x 1236(V) |
| Number of effective pixels | 1080i/1080p: 1920(H) x 1080(V) / 720p: 1280(H) x 720(V) |
| Unit cell size | 2.8µm × 2.8µm |
| Imaging system | RGB+W array mosaic filters on chip |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Video output | 3G-SDI (Level A, SMPTE424M, Compatible) / HD-SDI (SMPTE292M, Compatible) |
| Output format | 3G-SDI: 1080p60, 1080p50, 1080p59.94 HD-SDI: 1080i60, 1080i50, 1080i59.94, 1080p30, 1080p25, 1080p29.97, 720p60, 720p50, 720p59.94 |
| Minimum illumination | 0.1 lx. F1.2 |
| S/N | More than 50dB |
| Function settings | OSD(On Screen Display) operated by remote controller / RS-232(Compatible) |
| AE mode | AUTO / MANUAL |
| Shutter speed | OFF, 1/100, 1/120, 1/200, 1/500, 1/1000, 1/2000, 1/5000, 1/10000 sec. |
| Flickerless mode | ON / OFF |
| AGC | HIGH / MEDIUM / LOW |
| MGC | 0 - 30dB |
| White balance | ATW, PWB, MANUAL, PRESET (4 types) |
| Noise reduction | 2DNR ON / OFF |
| Privacy Mask | 16 areas (RS-232) |
| Mirror Image | OFF / ON (H-FLIP, V-FLIP) |
| Back light compensation | ON / OFF |
| Defog | ON / OFF |
| White blemish correction | 1023 pixels |
| Lens iris | DC |
| Power Supply | DC+12V±10% |
| Power Consumption | 2.22 W (185 mA) |
| Operating Temperature | -10 - +50℃ |
| Storage Temperature | -30 - +70℃ |
| Operating / Storage humidity | 95％RH or less (Without condensation) |
| Lens mount | CS mount (Back focus adjustable) |
| Weight | Approx. 130g |
