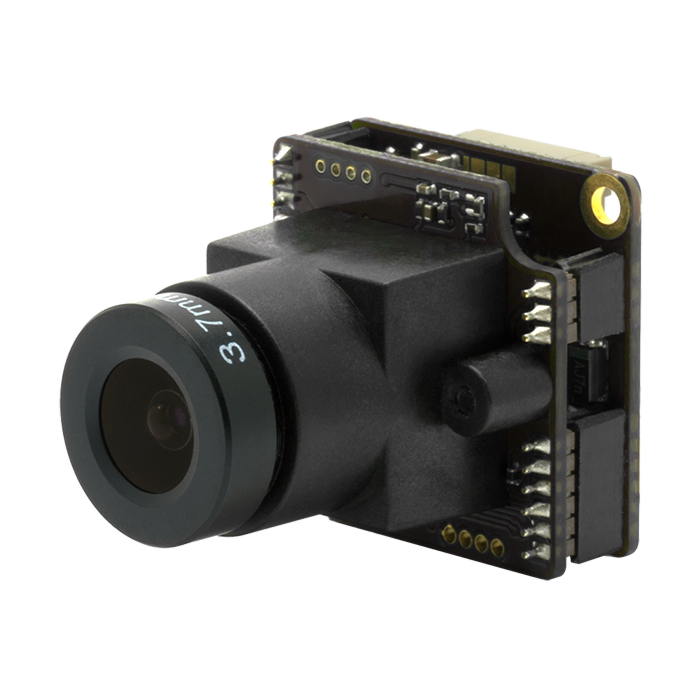

  • Watec WAT-1100MBD Image #1

Watec WAT-1100MBD G3.7 High Resolution (750TVL) Low Light Camera

Quick Overview

1/3.2" High Sensitivity, Compact, Board type
Overview

At 23x23mm this mini day/night camera has OSD interface allowing you to customize the camera features making it compatible with nearly all applications. Its small size and application adaptability, make this camera perfect for systems integration and concealment.

Features:

  • High sensitivity
  • Min. Illumination 0.005 lx F1.8 (AGC 54dB)
  • Ultra-Compact design only 23 x 23 x 34 mm
  • Wide dynamic range, ICR Mechanical less Day/Night function
  • Advanced setting available by OSD (On Screen Display) through an optional controller
  • 2DNR ON (Level adjustable)
  • Specifications
    Pick-up element 1/3.2 inch BSI CMOS image sensor
    Number of effective pixels 1280(H) × 960(V)
    Unit cell size 3.5μm(H)×3.5μm(V)
    Imaging system RGB+W array mosaic filters on chip
    Synchronizing system Internal
    Scanning system Progressive
    Video output Composite: 1.0 V(p-p) 75Ω (Unbalanced)
    Resolution (H) More than 750TVL (Center)
    Minimum illumination 0.005 lx F1.8 (AGC=54dB)
    S/N More than 55dB (AGC=OFF、 γ=1.0)
    Function settings OSD (On Screen Display) operated by remote controller
    AE mode Fixed: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/20000, 1/50000, 1/100000 sec
    EI: 1/60 - 1/100000 sec., 1/50 - 1/100000 sec.
    White balance ATW, PUSH, USER1, USER2, MANUAL, PUSH LOCK
    AGC  0 - 54dB
    MGC MIN, 6, 12, 18, 24, 30, 36, 42, 48, MAX dB
    Day / Night ICR mechaless Day/Night
    Gamma characteristics γ≒0.45
    Noise reduction 2DNR ON (Level adjustable)
    Wide dynamic range Mutiple exposure WDR: ON (Level selectable) / OFF
    ATR : ON (Level selectable) / OFF
    Lens Iris DC
    Back Light Compensation OFF / BLC / HLC
    Defog OFF / AUTO (Correction level selectable)
    Privacy Mask 16masks
    Mirror Image OFF / V-FLIP / H-FRIP / HV-FLIP
    Sharpness 0 - 255 (SHARPNESS)
    Power Supply DC+5V - 12V
    Power Consumption 0.72W (60mA) ※12V
    Operating Temperature -10 - +50℃
    Storage Temperature -30 - +70℃
    Operating / Storage humidity 95% RH or less (Without condensation)
    Lens Mount M12 P=0.5
    Standard Lens M3718BC-12(f3.7 F1.8)
    Weight Approx. 13.5g
    Accessories 4P Cable, I/O Cable
