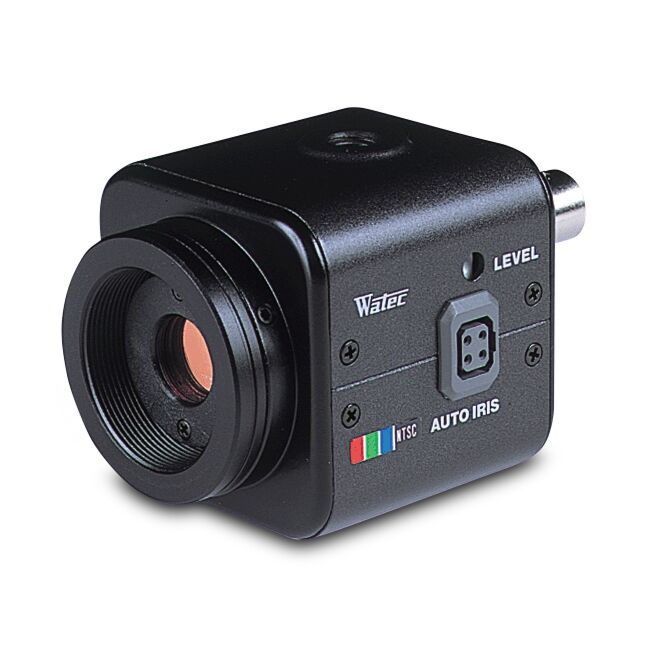

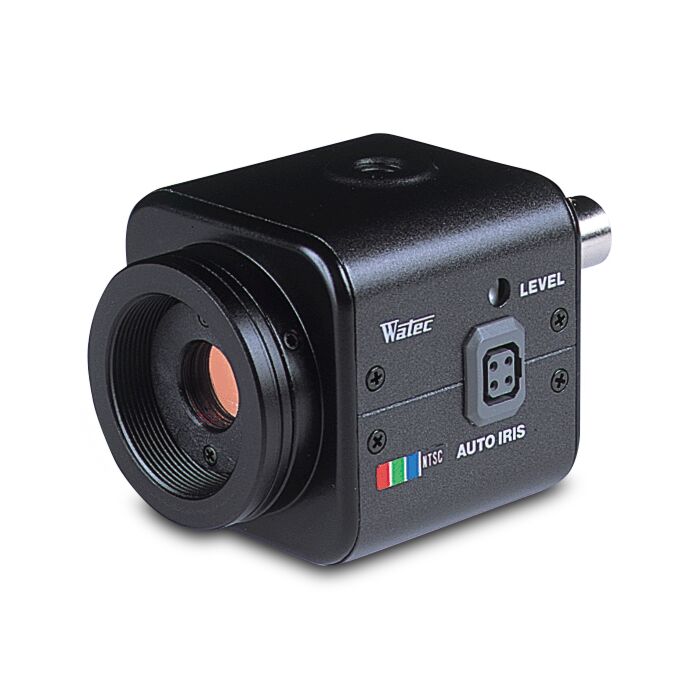

Watec WAT-221S2 1/2 inch CCD Low Light CCD Color Camera
1/2" DSP Color Industrial Camera
This camera is discontinued.
The replacement cameras are:
Analog:
WAT-1200CS
Digital:
2400S
WAT-03U2
WAT-2200MK2
The new Watec WAT-221S2 is a 1/2 inch formatted CCD camera solution for those industries which demand image perfection. Now providing 550TV of true color resolution, the second generation model is lower light gathering and supports an OSD menu for full access to all features and functions.
The latest in the 200 series high resolution, fully adjustable- low light cameras, the 221S2, provides you convenience in miniature package; making this unit the preferred model in the Medical Imaging, Factory Automation, Military, and Law Enforcement Industries.
All accessories used with the original model WAT-221S are interchangeable with the new unit.
Features:
Applications:
|
Image Sensors
|
1/2 inch Interline transfer CCD image sensor |
|
Number of total pixels
|
811(H)×508(V) |
|
Effective pixels
|
768(H)×494(V) |
| Unit cell size | 8.4μm(H)×9.8μm(V) |
| Minimum illumination | 0.006 lx F1.2 (AGC=ON, Shutter=OFF, NR=ON, γ=0.45) 0.0004 lx F1.2 (AGC=ON, Shutter=x16, NR=ON, γ=0.45) |
| S/N | More than 55dB (AGC=-3dB, γ=1.0) |
| Function settings / Serial port | OSD (On Screen Display) / RS-485 (Pelco-D) |
| AE mode | Fixed: x2, x4, x8, x16, x32, x64, x128, x256 (field) - 1/60, 1/100 sec. - 1/50, 1/120 sec. - 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec. EI: 1/60 - 1/100000 sec. - 1/50 - 1/100000 sec. - x16 - 1/100000 sec. |
| AGC | HI: -3～44dB / LO: -3～32dB |
| MGC | -3～44dB (1dB step) |
| Gamma Characteristics | 9 steps setting (1.0/0.8/0.7/0.6/0.55/0.5/0.45/0.4/0.35) |
| White Balance | ATW, PWB, MWB, PRESET (4 types) |
| Noise Reduction | 3DNR ON (Level selectable) / OFF |
| Wide Dynamic Range | WDR(Digital Wide Dynamic Range) ON (Level selectable) / OFF |
| Lens Iris Range | Video / DC |
| Back light compensation | ON / OFF |
| HSBLC(Highlight BLC) | ON (Level selectable) / OFF |
| White blemish correction | Up to 64 pixels |
| Defog | ON (Level selectable) / OFF |
| Digital zoom | x 2 - 256 (ZOOM / PAN / TILT) |
| Privacy mask | 4masks |
| Mirror image | V-FLIP / H-FLIP / HV-FLIP |
| Motion detection | ON (Area/Sensitivity/Alarm) / OFF |
| Power supply | DC+12V±10% |
| Power consumption | 1.32W (110mA) |
| Operating temperature | -10 - ＋50℃ |
| Storage temperature | -30 - ＋70℃ |
| Operating / Storage humidity | Less than 95% RH (Without condensation) |
| Lens mount | CS mount (Back focus adjustable) |
| Weight | Approx. 150g |
