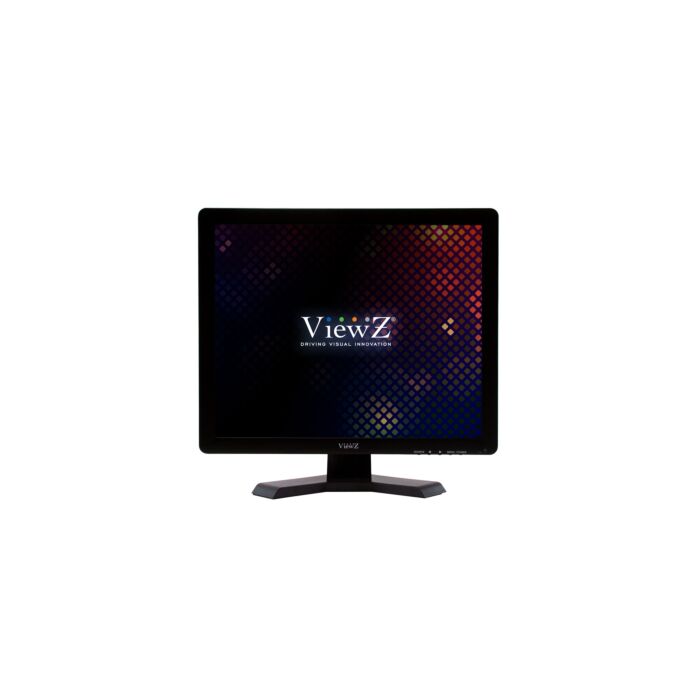

ViewZ VZ-17RTN 17” LED CCTV Monitor

Elevate your visual experience with the ViewZ VZ-17RTN 17” LED CCTV Monitor. Ideal for industrial and machine vision applications, it offers crisp image quality, versatile connectivity, and advanced features like 3D comb-filter and de-interlace. Boost productivity and efficiency in manufacturing, quality control, and inspections. Get yours today for enhanced monitoring precision.
SKU
VZ-17RTN

Experience Enhanced Clarity with ViewZ VZ-17RTN 17” LED CCTV Monitor

Elevate your visual experience with the ViewZ VZ-17RTN, a high-performance 17-inch LED CCTV monitor designed for industrial and machine vision applications. Boasting a resolution of 1280 x 1024 and a 5:4 aspect ratio, this commercial-grade monitor delivers crisp, clear images with exceptional detail. With 2 BNC composite inputs, HDMI, VGA, and audio in/out options, it offers versatile connectivity to various devices.

Featuring advanced technologies like a 3D comb-filter and de-interlace, the VZ-17RTN ensures superior image quality and smooth video playback. The intuitive on-screen display (OSD) and included remote control provide effortless control and customization. Additionally, with auto source and power recovery functions, this monitor ensures seamless operation in dynamic environments.

Ideal for industrial and machine vision applications, the VZ-17RTN enhances productivity and efficiency in manufacturing, quality control, and inspection processes. Its rugged construction and reliable performance make it suitable for demanding industrial environments. Backed by a 3-year warranty, this monitor offers peace of mind and long-term reliability for your visual monitoring needs.

Features:

  • 17" LED commercial-grade monitor
  • 1280 x 1024 resolution
  • HDMI, VGA, BNC inputs
  • Loop-through output
  • 3D comb-filter, de-interlace
  • OSD, remote control
  • Auto source & power recovery
  • 2.5W stereo speakers (x2)
  • 3-year warranty

Applications:

  • Manufacturing
  • Quality control
  • Inspection processes
Screen Size 17"
Resolution 1280 x 1024 @60Hz
Pixel Pitch 0.294mm x 0.294mm
Brightness 300cd/m²(Typical)
Contrast ratio 700:1
Aspect Ratio 5 : 4
Viewing Angle (H/V) 170°/150°
Display Color 16.7 Million
Response Time < 5ms
Video System NTSC / PAL
Frequency (H) 30 ~ 80Khz
Frequency (V) 50 ~ 75Hz
AV(Composite) In/ Out 2 / 1
RGB In (15pin D-Sub) 1
HDMI In 1
AV(Composite) Sound In/Out (RCA Type) 1
Built-in Speakers 2.5 W x 2
Filter Type 3D Comb filter / De-Interlace
Video Resolution (Max) 600 TV Line
Multi-lingual Language English, Spanish, French, Italian, Dutch
Outline Dimension 15.06" x 12.40" x 1.78"
(W x H x D) (382.60mm x 315.10mm x 45.30mm)
Net Weight 6.10 lbs (2.77kg)
Gross Weight 7.20 lbs (3.27kg)
VESA 75mm x 75mm, (M4 x L10 Screw)
Power - Electrical Ratings Electrical Ratings - DC12V(AC100 ~ 240V[50/60Hz])
Power - Consumption 20W
Warranty - Parts / Labor 3 Year / 3 Year
Warranty - MTBF (Approx.) 50,000 Hours
Operating Temperature 14 - 122°F / -10°C - 50°C
Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
Compatible Mounts - Ceiling VZ-CMK02, VZ-CMKiT-01, VZ-CMKiT-02
Compatible Mounts - Rack VZ-RMK08
