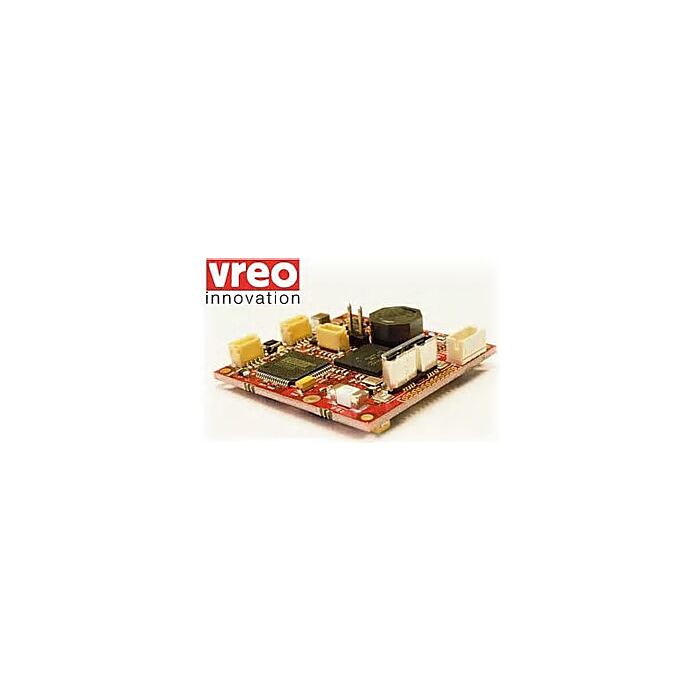

VREO Liberty USB 3.0 Board for Sony FCB Block Cameras

Quick Overview

A USB3.0 interface for the established and widely used SONY FCB block cameras.
Overview

VREO LIBERTY extends the range of cameras that can be integrated into your USB3.0 products. This board provides a USB3.0 interface for the well established SONY FCB block cameras providing a cost effective way to bring USB 3.0 into your product lines, reducing time to market and development costs. LIBERTY is a very compact and efficient solution allowing a one cable interface to a PC and comes with free bespoke application called OneView which will help you evaluate the board and camera for your application.

LIBERTY is capable of streaming 1080p at 30fps over USB 3.0 and includes a push button inputs for camera zoom control, PWM output for external LED light control, and an efficient selectable power supply for the attached camera. As well as being powered completely over the USB bus, Liberty allows the user to command the camera using VREO's bespoke program OneView.

Features:

  • Efficient built in power supply for the camera
  • PWM output for LED dimming control
  • Push Button inputs for Zoom
  • 1080p at 30fps
  • USB3.0 Interface for the SONY FCB Block Cameras
  • A one cable solution
  • Camera power and communication over the same connection

  • Applications:

  • Machine Vision
  • Low Vision
  • Video Conferencing
  • Inspection Systems
  • UAV's
  • Robotics
  • Augmented Reality Systems
  • Specifications
    Supported Cameras from Sony FCB-EH6500 FCB-EH6300 FCB-EH3410 FCB-EH3310 FCB-EH3150 FCB-EV7500 FCB-EV7300 FCB-EV7310 FCB-EV7100 FCB-EV5500 FCB-EV5300
    Interface USB3.0
    Operating Temperature 0°C – 50°C
    Max Resolution 1080p at 30fps
    Camera Output Voltage 5v or 9v (selectable)
    Board Dimensions 37mm x 37mm x 12mm
