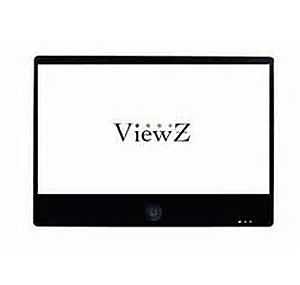

ViewZ VZ-PVM-Z4B3 (VZPVMZ4B3) 32" HD PVM - Black
HD Public view commercial-grade CCTV monitor with built-in D-WDR camera for retail security and digital signage.
SKU
ViewZ VZ-PVM-Z4B3
Features:
| Screen Size | 32" |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.36375mm x 0.36375mm |
| Brightness | 350cd/m² (Typical) |
| Contrast Ratio | 3000:1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 6.5ms |
| Video System | NTSC / PAL |
| Frequency (H) | 31 ~ 80Khz |
| Frequency (V) | 56 ~ 75Hz |
| AV (Composite) In / Out | 1 / 1 |
| Camera Out | 1 / 720x480 |
| RGB In (15pin D-Sub) | 1 |
| DVI In | 1 |
| HDMI In | 2 |
| AV (Composite) Sound In/Out (RCA Type) | 1 / 1 |
| PC Stereo In/Out | 1 / 1 |
| Multi Display Function | PIP / PBP / VOV |
| Filter Type | 3D Comb filter / De-Interlace |
| Blinking Message "Recording" | Yes |
| Timed Switching Capabilities between two cameras | Yes |
| Video Resolution (Max) | 600 TV Line |
| Camera Mounting Hole | 3 (Top, Left, Right) |
| Multi-Lingual Language | English, Spanish, French, German, Italian, Portuguese, Dutch |
| Outline Dimension | 28.92" x 20.58" x 3.4" |
| (W x H x D) | (734.6mm x 522.8mm x 86.6mm) |
| Net Weight / Gross Weight | 36.82 lbs ( 16.7kg ) / 46.3 lbs ( 21 kg ) |
| VESA | 200mm x 200mm / M6 x 8 Screws |
| Sensor Type | 1/3" Panasonic 2.1M Progressive C-MOS |
| Lens | DC Auto Iris , 2.8mm~12mm |
| Active Pixels | 1920(H) x 1080p(V) |
| Min Illumination | 0.5 Lux@50IRE, F1.2 |
| Function | 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, Day & Night, DWDR, AGC, AWB, IR SMART |
| Motion Detection | Support |
| Video Out | 1ch CVBS (NTSC/PAL) |
| Support Type | Photo, Music, Video |
| Support File Format | MPEG1, MPEG4, JPEG, BMP, GIF, PNG, MP3 |
| Memory | 512MB RAM |
| External Storage | Support USB1.1, USB2.0 | SD(4in1)/MMC/MS/XD |
| Resolution | 720 x 576 |
| Transmitter - IR Remote Control | Yes |
| Dual Voltage - Power - Electrical Ratings | 110V AC (50/60Hz) - 24V DC |
| Warranty - Parts / Labor | 3 Year / 3 Year |
| Warranty - MTBF (Approx.) | 50,000 Hours |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Compatible Mounts - Wall | VZ-AM02, VZ-WM50 |
| Compatible Mounts - Ceiling | VZ-CM06, VZ-CM18, VZ-CMKiT-01, VZ-CMKiT-02, VZ-CMK02, VZ-CMK03 |
