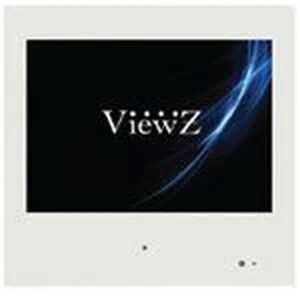

ViewZ VZ-PVM-Z1W2 (VZPVMZ1W2) 9.7" ANALOG PVM - White

HD Public view commercial-grade CCTV monitor with built-in D-WDR camera for retail security and digital signage.
SKU
ViewZ VZ-PVM-Z1W2

Features:

  • 9.7" Flat Panel IPS LED "A" Commercial-Grade Monitor
  • 1024x768 / 4:3
  • 620TVL Camera
  • USB & SD Media Player
  • Motion Sensor and Timed Source Switching
  • Flexible Alert Text / White Blinking LED
  • Looping BNC
  • 2D Comb Filter / De-Interlace
  • Camera and Monitor OSD / Remote Control
  • Auto Power / Source Recovery
  • VESA Wall Mount 75x75mm
  • AC 24V
  • MTBF: 50,000 hrs
  • 3-Year Warranty
  • Screen Size 9.7"
    Resolution 1024 x 768 @60Hz
    Pixel Pitch 0.192mm x 0.192mm
    Brightness 350cd/m²(Typical)
    Contrast ratio 600:1
    Aspect Ratio 4 : 3
    Viewing Angle (H/V) 178°/178°
    Display Color 0.26 Million
    Response Time < 35ms
    Video System NTSC / PAL
    Frequency (H) 31 ~ 48Khz
    Frequency (V) 56 ~ 60Hz
    AV (Composite) In / Out 1 / 1
    Camera Out 1 / 768x498 (Resolution)
    RGB In (15pin D-Sub) 1
    Filter Type 2D Comb filter / De-Interlace
    Blinking Message "Recording"  Yes
    Timed Switching Capabilities between Two Cameras Yes
    Video Resolution (Max) 620 TV Line
    Protection Glass Yes
    Camera Mounting Hole 3 (Top, Left, Right)
    Multi-Lingual Language English, Spanish, French, German, Italian, Portuguese, Dutch
    Outline Dimension 9.37” x 9.17” x 2.08”
    (W x H x D) (238 mm x 233 mm x 53 mm)
    Net Weight 4.61 lbs ( 20.9kg )
    VESA 75mm x 75mm, (M4 x 10 Screws)
    Sensor Type 1/3" Sony Supper HAD II CCD
    Effective Pixel NTSC: 768x494 / PAL: 752x582
    Min. Illumination 0.001 Lux (F1.2)
    Lens 3.7mm Fixed Lens
    Video Control OSD Key Control, AGC, D-WDR, DNR, IR Smart, White Balance, Day&Night
    Support Type Photo, Music, Video
    Support File Format MPEG1, MPEG4, JPEG, BMP, GIF, PNG, MP3
    Memory - Internal 512MB Nand Flash
    Memory - External USB1.1, USB2.0, SD(4i n1):SD/MMC/MS/XD
    Resolution 720 x 576
    Transmitter - IR Remote Control Yes
    Power - Electrical Ratings AC24V
    Power - Consumption 17W
    Warranty - Parts / Labor 3 Year / 3 Year
    Warranty - MTBF (Approx.) 50,000 Hours
    Operating Temperature 32 - 104°F / 0 - 40°C
    Regulations CUL, FCC
    Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
    Compatible Mounts - Rack VZ-RMK08
