  • ViewZ VZ-PVM-I3B3 Image 1

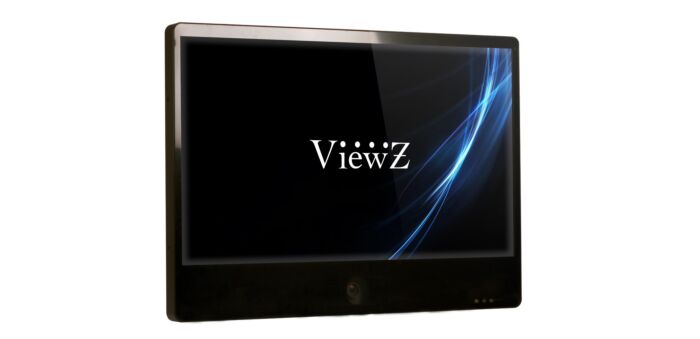

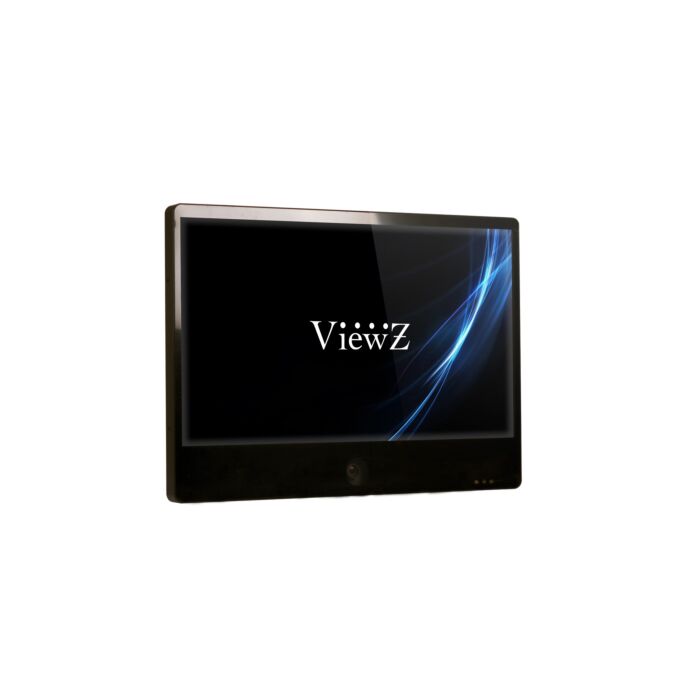

ViewZ VZ-PVM-I3B3 23" IP PVM Black

Quick Overview

IP-HD Camera inside a 1080p LED monitor fully loaded with advanced surveillance, digital signage features and able to connect directly to an NVR via ethernet.
Overview

Features:

  • 27" Flat Panel Widescreen LED "A" Commercial-Grade Monitor
  • Enhanced Public View Monitor over IP
  • HD 1920x1080 / 16:9
  • 1920x1080 2.1 Mega Pixel HD D-WDR Camera
  • DC Auto Iris 2.8 - 12 mm varifocal lens
  • 720x480 Camera BNC Output
  • Motion Sensor and Timed Source Switching
  • Flexible Alert Text / Multi-Color Blinking LED
  • 2 HDMI / DVI / VGA / BNC(NTSC/PAL) / PC Stereo
  • 3D Comb Filter / De-Interlace
  • Camera and Monitor OSD / Remote Control
  • PIP / PBP / VOV
  • Auto Source Switching
  • Auto Power/Source Recovery
  • VESA Wall Mount 100x100 / 200x200
  • AC 110~240V or DC 24V Dual Voltage
  • MTBF: 50,000 hrs
  • 3-Year Warranty
  • Specifications
    Screen Size 27"
    Max Resolution 1920 x 1080 @60Hz
    Pixel Pitch 0.3112mm x 0.3112mm
    Brightness 300cd/m² (Typical)
    Contrast Ratio 3000:1
    Aspect Ratio 16 : 9
    Viewing Angle (H/V) 178°/178°
    Display Color 16.7 Million
    Response Time < 12ms
    Video System NTSC / PAL
    Frequency (H) 31 ~ 64Khz
    Frequency (V) 56 ~ 75Hz
    AV (Composite) In / Out 1 / 1
    Camera Out 1 / 720x480
    Ethernet 10 / 100 1
    RGB In (15pin D-Sub) 1
    DVI In 1
    HDMI In 2
    AV (Composite) Sound In/Out (RCA Type) 1 / 1
    PC Stereo In/Out 1 / 1
    Multi Display Function PIP / PBP / VOV
    Filter Type 3D Comb filter / De-Interlace
    Blinking Message "Recording" Yes
    Timed Switching Capabilities between two cameras Yes
    Video Resolution (Max) 600 TV Line
    Camera Mounting Hole 3 (Top, Left, Right)
    Multi-Lingual Language English, Spanish, French, German, Italian, Portuguese, Dutch
    Ethernet Interface 10/100Base-T
    Web Client Protocol TCP / IP
    Supported Protocol IPv4, TCP/IP, ARP, HTTP, SMTP, FTP, DHCP, RTP, RTSP, PPPoE
    Outline Dimension 25.32" x 18.3" x 3.39"
    (W x H x D) (643.0mm x 465mm x 86.3mm)
    Net Weight / Gross Weight 24.91 lbs ( 11.3 kg )
    VESA 100mm x 100 mm / M4 x 8 Screws - 200mm x 200mm / M6 x 8 Screws
    Sensor Type 1/3" Panasonic 2.1M Progressive C-MOS
    Lens DC Auto Iris , 2.8mm~12mm
    Active Pixels 1920(H) x 1080p(V) 30p
    Min Illumination 0.5 Lux@50IRE, F1.2
    Function 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, DWDR, AGC, AWB, IR SMART
    Video Compression H.264 CBR, VBR support
    Video Out 1ch CVBS (NTSC/PAL) / 1ch RJ-45 output
    Motion Detection Support
    Support Protocol IHTTP, TCP/UDP/IP, ARP, ICMP, RTP/RTSP, Multicast, Telnet, ftp, PPPoE, SMTP(e-mail), DHCP, NTP,uPNP, etc, ONVIF, PSIA
    Ethernet Port 10 / 100 Base-T
    Webclient Connection TCP / IP Protocol
    Dynamic IP Dedicated dynamic IP service using www.ipcctvdns.com
    Support Type Photo, Music, Video
    External Storage Support SD/SDHC CARD | USB 2.0 HOST
    Output VIDEO - HDMI(1080p) / AUDIO - L/R, HDMI
    Video File Format RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4
    Video Resolution 1080P @60Hz
    Audio File Format MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM
    Image File Format JPEG, TIF, PNG, BMP
    VIDEO Play Control AUTO, REPEAT, ZOOM, RESUME, TIME
    Transmitter - IR Remote Control  Yes
    Power - Electrical Ratings 110V AC (50/60Hz) - 24V DC
    Power - Consumption 0.5 A (50W) - 2.2 A (50W)
    Warranty - Parts / Labor 3 Year / 3 Year
    Warranty - MTBF (Approx.) 50,000 Hours
    Operating Temperature 32 - 104°F / 0 - 40°C
    Compatible Mounts - Wall VZ-AM02, VZ-WM50
    Compatible Mounts - Ceiling VZ-CM06, VZ-CM18, VZ-CMKiT-01, VZ-CMKiT-02, VZ-CMK-02, VZ-CMK03
